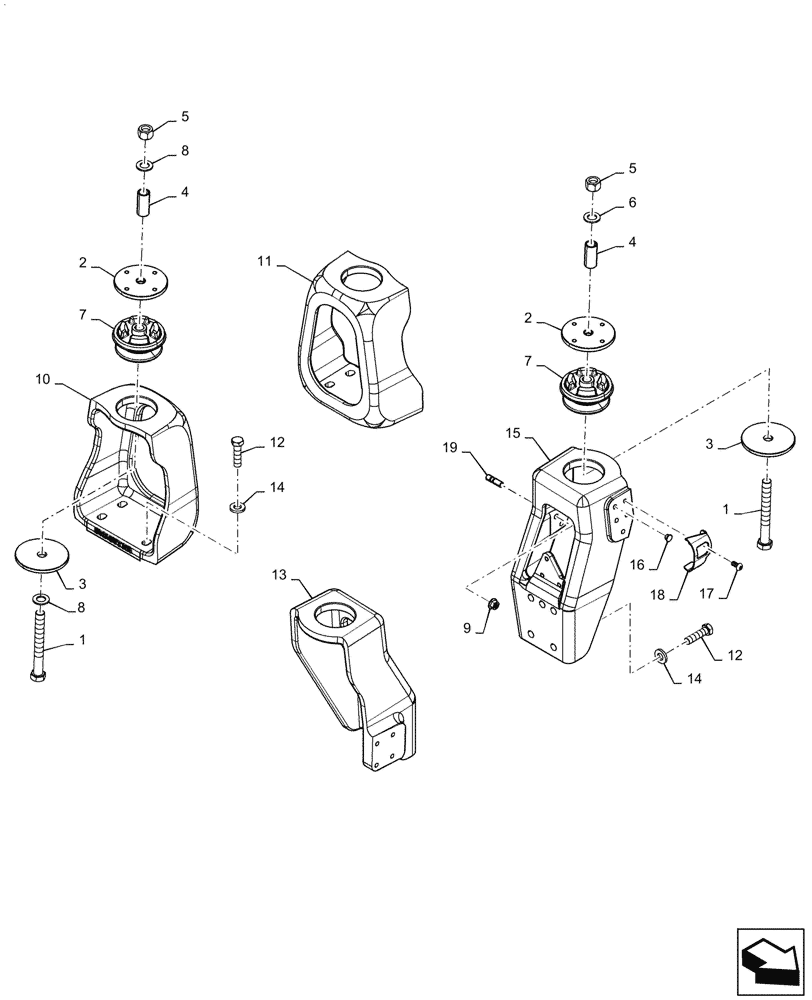

Запчасти Case IH MAGNUM 310 (90.150.AJ[02]) - ISO CAB MOUNTING - CVT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87493301

BOLT,Hex, M20 x 1.5 x 170mm, Cl 10.9

4шт.

2

87479138

SPACER

Threaded

4шт.

3

87476928

SPACER,21mm ID x 120mm OD x 9.2mm L

4шт.

4

87476869

TUBE

Support

4шт.

5

86015195

NUT,M20 x 1.5, Cl 10

4шт.

6

86639847

WASHER,21.8mm ID x 44.5mm OD x 5mm Thk

Front Mounts

2шт.

7

83983548

ISOLATOR,120mm OD x 64mm L

Body to Frame Mount

4шт.

8

86511327

WASHER,21mm ID x 37mm OD x 3mm Thk

Rear Mounts

4шт.

9

825-2412

FLANGE NUT,M12 x 1.75, Flg, Cl 8

3шт.

10

84419053

MOUNT

RH Rear ISO CVT

1шт.

11

84419052

MOUNT

LH Rear ISO CVT

1шт.

12

9828248

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9, Full Thd

18шт.

13

84350239

MOUNT

RH Front ISO

1шт.

14

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

18шт.

15

84272494

MOUNT

LH Front ISO

1шт.

16

128209A1

PLUG

Plastic

3шт.

17

84405128

HEX SOC SCREW,M10 x 1.5 x 20mm, Cl 10.9

2шт.

18

47739274

BRACKET

Exhaust Aspirator Hose, ISO Cab Mount

1шт.

19

87477184

STUD

Step, ISO Mount

3шт.
