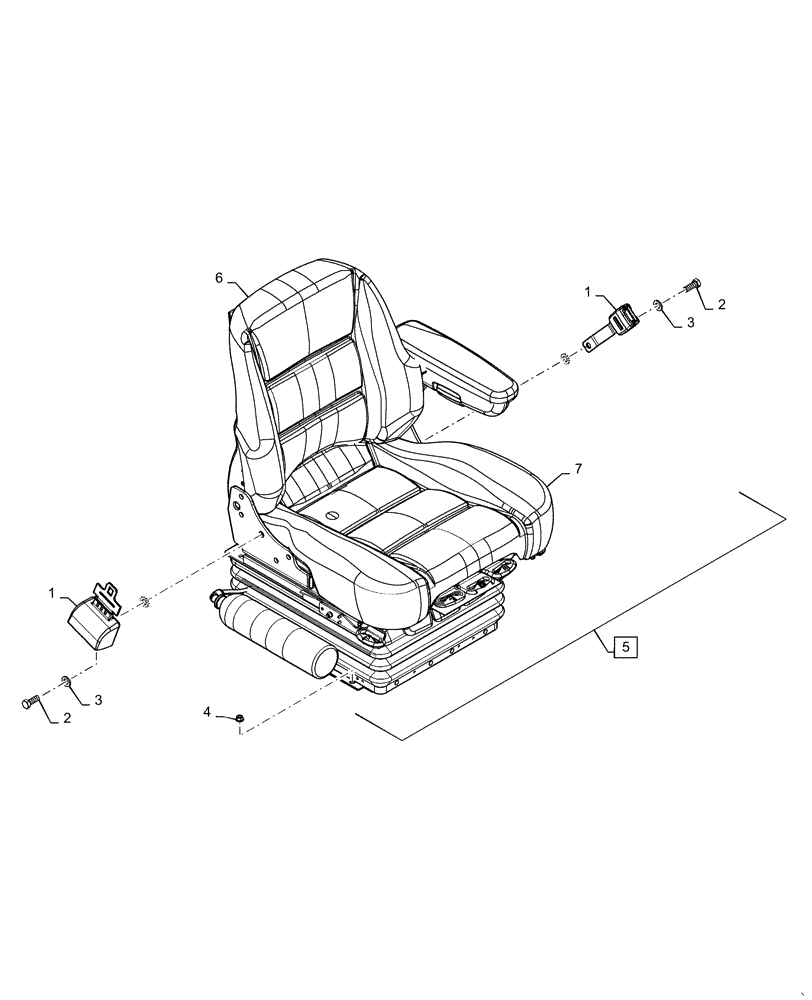

Запчасти Case IH MAGNUM 310 (90.120.AD[01]) - VAR - 420010, 420012 - SEAT ASSY, DELUXE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84257916

SEAT BELT,48mm W x 1447.8mm L

1шт.

2

806-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9

2шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

4

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.

5

84380417

DRIVER SEAT

Cloth with 3 Position Heat without Positive Response Suspension, Incl 6 - 7

1шт.

6

84392249

SEAT CUSHION

Back, 3 Position Heat, Cloth, Confetti-Wheat

1шт.

7

84392247

SEAT CUSHION

Bottom, 3 Position heat, Cloth, Confetti-Wheat

1шт.
