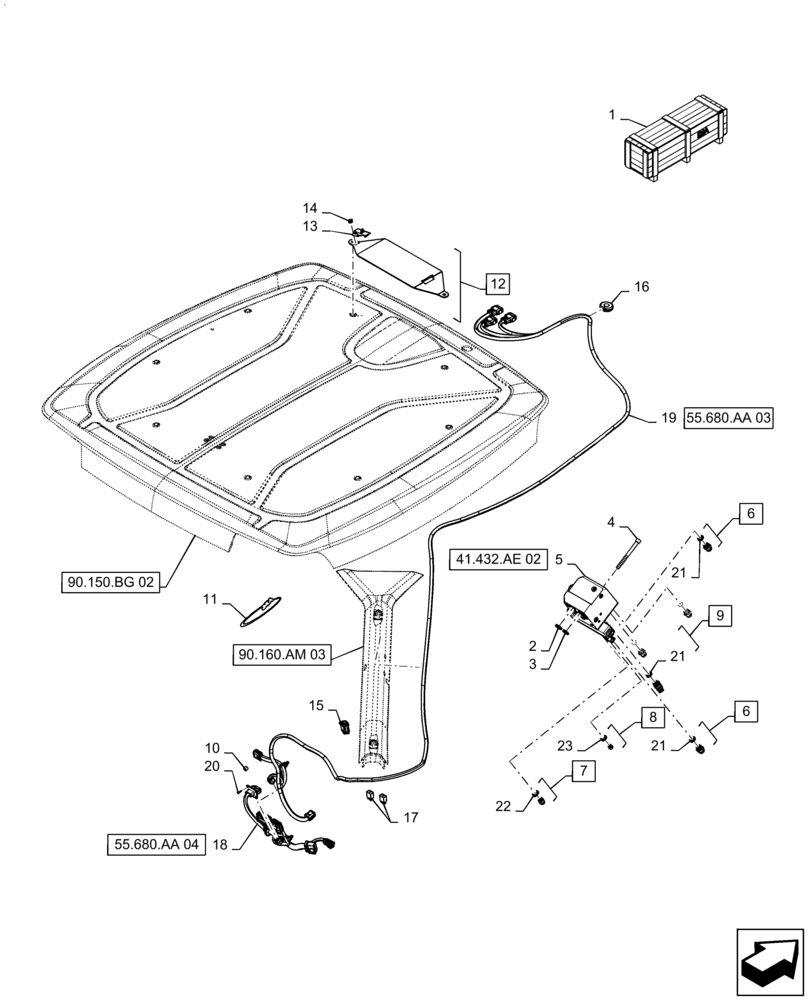

Запчасти Case IH MAGNUM 310 (55.680.AA[06]) - CONVERSION KIT, AUTOGUIDANCE, CVT (55) - ELECTRICAL SYSTEMS

1

47831282

KIT

Non-Autoguidance to Autoguidance Conversion, CVT, Incl 2 - 23

1шт.

2

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

4шт.

3

238-6113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

1шт.

4

86625211

HEX SOC SCREW,M12 x 1.75 x 130mm, Cl 8.8

Autoguidance Control Valve Mounting

2шт.

5

47746341

CONTROL VALVE

Autoguidance HF

1шт.

6

87331075

HYD CONNECTOR,M18 x 1.5 Male ORB x -08 Fem STC

Ports T, R, L, P; Incl 21

4шт.

7

87331073

HYD CONNECTOR,M14 x 1.5 Male ORB x -06 Fem STC

Port LS; Incl 22

1шт.

8

9672438

PLUG,7/16" - 20 ORB

Port PX; Incl 23

1шт.

9

87345924

FITTING,45 Degree, M18 x 1.5 ORB x -08 Fem STC

Port P; Incl 21

1шт.

10

832-10405

NUT,M5 x .8, Cl 8

NAV II Controller Mounting

4шт.

11

84144149

DECAL

AFS Logo

2шт.

12

87552885

BRACKET

Autoguidance Antenna, Incl 13 - 14

1шт.

13

87308870

LATCH

Under-Center, With Padlock Hasp

1шт.

14

87308841

RIVET,Pop, 3.97mm OD x 10.79mm L

Latch to Bracket

2шт.

15

87711789

AUTO GUIDANCE DISENG

Rocker Switch, Autoguidance Disengage

1шт.

16

87330628

GROMMET

GPS Antenna Harness

1шт.

17

84543528

RELAY,12V, 20A, Micro

Micro, SPDT

2шт.

18

47562404

WIRE HARNESS

Autoguidance Chassis

1шт.

19

47562537

WIRE HARNESS

GPS Antenna

1шт.

20

760-14316

SELF-TAP SCREW,Pan Hd, M4.2 x 16

RDL Connector Mounting

14шт.

21

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

4шт.

22

86639042

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

23

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.
