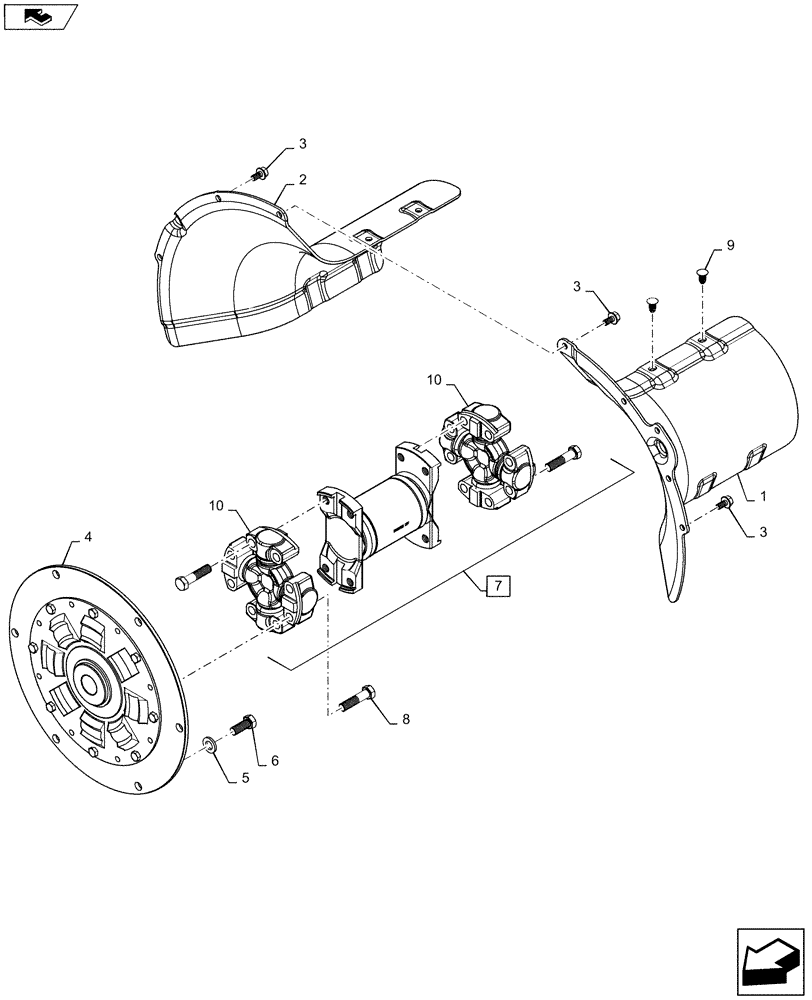

Запчасти Case IH MAGNUM 310 (10.110.AD[02]) - DAMPER, SHAFT & SHIELD, CVT - 250, 280, 310, 340, 380 (10) - ENGINE

1

84226326

SHIELD

Driveshaft, LH, CVT

1шт.

2

84226327

SHIELD

Driveshaft, RH, CVT

1шт.

3

555-1

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

7шт.

4

84146340

DAMPER

7C

1шт.

4

84146340R

REMAN-DAMPER

Reman Damper 7C

1шт.

4

84146340C

CORE-DAMPER

Core Return Number

1шт.

5

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

6

628-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

6шт.

7

84467468

DRIVE SHAFT

7C; Incl 10

1шт.

8

828-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

8шт.

9

87529297

CLIP

Christmas Tree, 8.6mm Hole

2шт.

10

301844A2

U-JOINT SPIDER

2шт.
