(35.204.BE[37]) - VALVE ASSY, 4 STACK AUX VALVES STD/HI FLOW W/O TRAILER BRAKE, WITH HYDRAULIC TOP LINK, CVT - ASN ZGRF01054

Запчасти Case IH MAGNUM 310 (35.204.BE[37]) - VALVE ASSY, 4 STACK AUX VALVES STD/HI FLOW W/O TRAILER BRAKE, WITH HYDRAULIC TOP LINK, CVT - ASN ZGRF01054 (35) - HYDRAULIC SYSTEMS

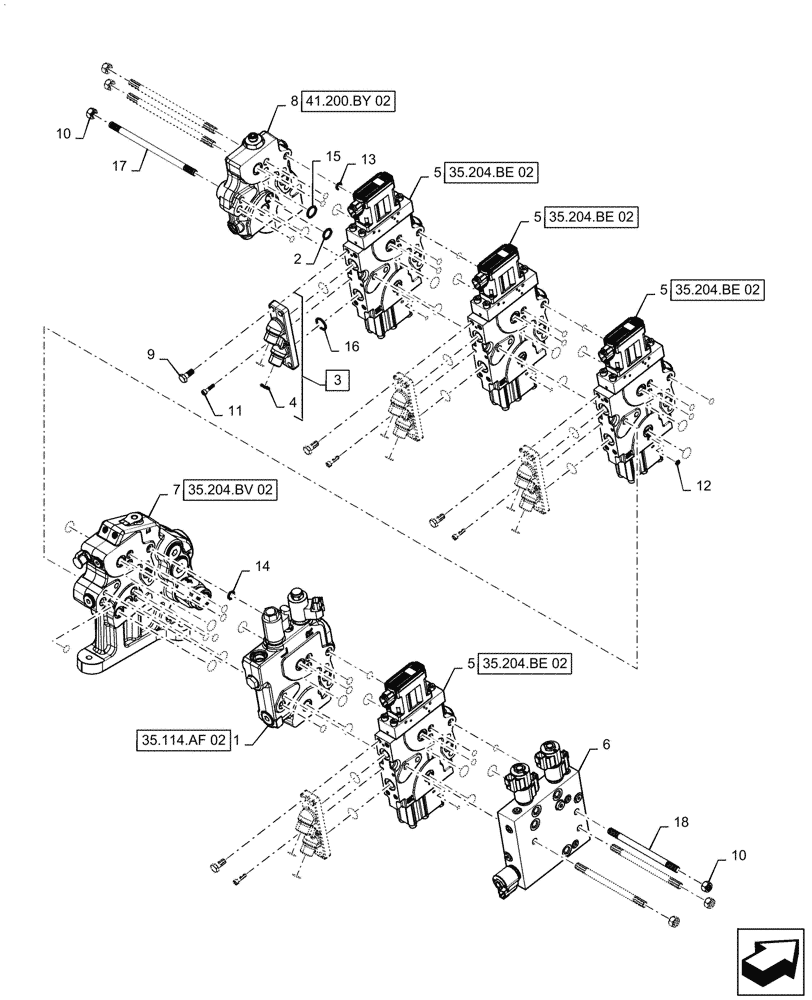

Схема запчастей Case IH MAGNUM 310 - (35.204.BE[37]) - VALVE ASSY, 4 STACK AUX VALVES STD/HI FLOW W/O TRAILER BRAKE, WITH HYDRAULIC TOP LINK, CVT - ASN ZGRF01054 (35) - HYDRAULIC SYSTEMS
35.204.bv 02
13
10
17
18
11
10
5
5
6
7
12
9
2
14
5
15
1
4
8
16
3
5
35.114.af 02
35.204.be 02
35.204.be 02
35.204.be 02
35.204.be 02
41.200.by 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47434190

HYD VALVE SECTION

Hitch

1шт.

2

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

1шт.

3

435643A1

COVER

Incl 4

4шт.

4

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

8шт.

5

47735819

VALVE SECTION

Aux Valve Sections 1, 2, 3, and 4

4шт.

5

47735819R

REMAN-HYD VALVE

Reman Aux Valve Sections 1, 2, 3, and 4

4шт.

5

47735819C

CORE-VALVE HYD

Return Number

4шт.

6

47786964

HYDRAULIC VALVE

Top Link

1шт.

7

47667199

VALVE

Inlet/Outlet Manifold

1шт.

8

47771356

VALVE

Steering Priority

1шт.

9

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

16шт.

10

829-1312

NUT,M12 x 1.75, Cl 10

6шт.

11

864-6025

HEX SOC SCREW,M6 x 25mm, Cl 8.8

8шт.

12

87635376

O-RING,2.62mm Thk x 3.63mm ID, -105, 80 Duro

12шт.

13

87635379

O-RING,2.62mm Thk x 9.19mm ID, -110, 80 Duro

20шт.

14

87635380

O-RING,2.62mm Thk x 12.37mm ID, -112, 80 Duro

10шт.

15

87635382

O-RING,2.62mm Thk x 20.29mm ID, -117, 80 Duro

22шт.

16

87635387

O-RING,2.62mm Thk x 21.89mm ID, -118, 80 Duro

8шт.

17

87664023

STUD,M12 x 1.75 x 230mm

3шт.

18

87604618

STUD,M12 x 1.75 x 185mm

3шт.
