Запчасти Case IH MAGNUM 310 (35.106.AD[04]) - VAR - 420301, 420302 - STANDARD OR HIGH CAPACITY HYDRAULIC PUMP, CVT (35) - HYDRAULIC SYSTEMS

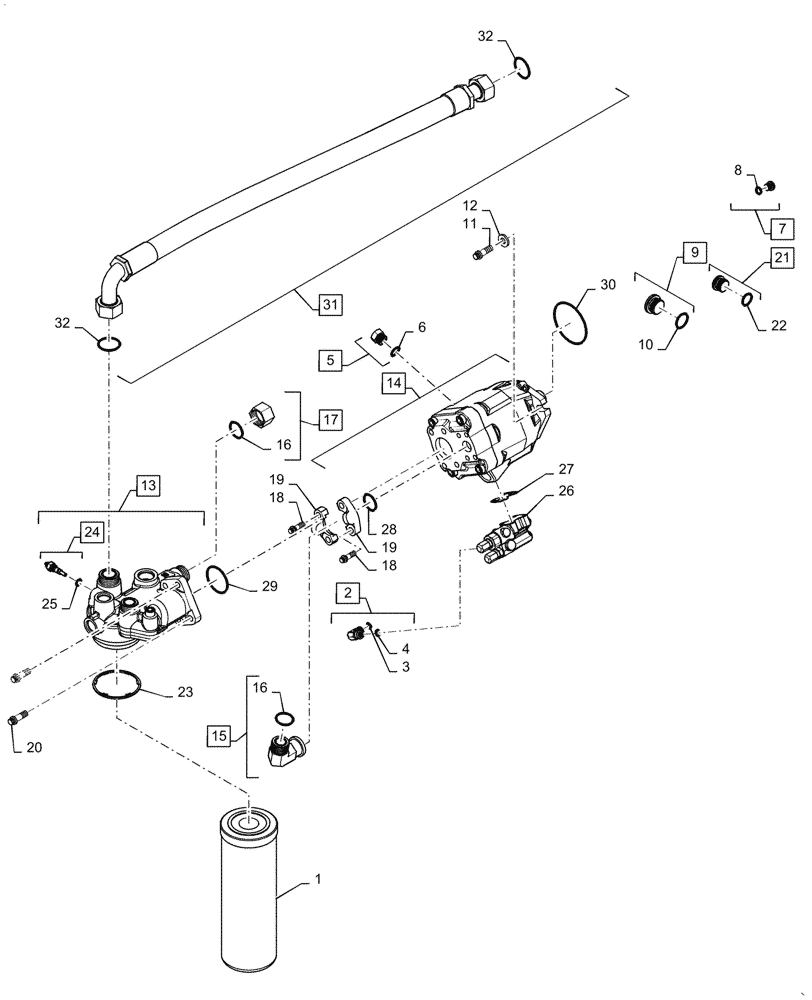

Схема запчастей Case IH MAGNUM 310 - (35.106.AD[04]) - VAR - 420301, 420302 - STANDARD OR HIGH CAPACITY HYDRAULIC PUMP, CVT (35) - HYDRAULIC SYSTEMS
5
32
25
20
12
28
26
4
18
14
10
24
3
6
29
13
16
19
17
23
22
32
16
9
11
30
19
2
7
1
8
18
15
21
31
27

Артикул

Название

Примечание

Количество

1

84240234

HYDRAULIC OIL FILTER,Spin on, 14.48"

1шт.

2

451226A1

90 ELBOW

7/16-20 ORB x 11/16-16 ORFS; Use With Non-Suspended MFD Axle, Incl 3 - 4

1шт.

2

86994121

TEE

Use With Suspended MFD Axle, Incl 3 - 4

1шт.

3

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

4

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

5

218-5157

PLUG,Hex Hd, 7/8"-14 ORB

Incl 6

1шт.

6

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

7

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Incl 8

1шт.

8

86639042

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

9

221527A1

PLUG,Hex Soc, M33 x 2, ORB

Incl 10

1шт.

10

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

11

868-12035

12 PT SCREW,M12 x 35mm, Cl 12.9

2шт.

12

896-16012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

13

47768613

FILTER HEAD

Hydraulic Filter, Std Flow Pump; Incl 23 - 25

1шт.

13

47437205

FILTER HEAD

High Capacity Pump, Incl 24 -25

1шт.

14

87538174

PUMP,156 LPM (41.3 GPM)

Main Hydraulic, Std Flow, Incl 26, 27

1шт.

14

87538174R

REMAN-HYD PUMP

Main Hydraulic, Std Flow, Incl 26, 27

1шт.

14

87538174C

CORE-HYDRAULIC PUMP

Return Number

1шт.

14

87538168

PUMP,211 LPM (55.6 GPM)

Main Hydraulic, High Capacity, Incl 26, 27

1шт.

14

87538168R

REMAN-HYD PUMP

Main Hydraulic, High Capacity, Incl 26, 27

1шт.

14

87538168C

CORE-HYDRAULIC PUMP

Return Number

1шт.

15

87677649

90 ELBOW

Split Flange; Incl 16

1шт.

16

87473574

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

17

701-901

CAP,1-7/16" - 12

Incl 16

1шт.

18

868-10030

12 PT SCREW,M10 x 30mm, Cl 12.9

4шт.

19

86980728

COLLAR CLAMP

2шт.

20

868-12035

12 PT SCREW,M12 x 35mm, Cl 12.9

4шт.

21

221580A1

PLUG,M27 x 2 ORB

Incl 22

1шт.

22

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

23

84362145

RING

Friction

1шт.

24

1957801C1

PRESSURE SWITCH

Hydraulic Filter, Incl 25

1шт.

25

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

26

87489367

SERVICE KIT

Compensator

1шт.

27

87553152

GASKET

Control Valve

1шт.

28

86529541

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1шт.

29

272380

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

Standard Flow Pump

1шт.

29

510185

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

High Capacity Pump

1шт.

30

70923600

O-RING,0.21" Thk x 3.975" ID, -345, Cl 5, 75 Duro

1шт.

31

84127528

HOSE,31.75mm ID x 890mm L, SAE 100R4

Aux Return, CVT; Incl 32

1шт.

32

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

2шт.

Выбрано товаров: 40
