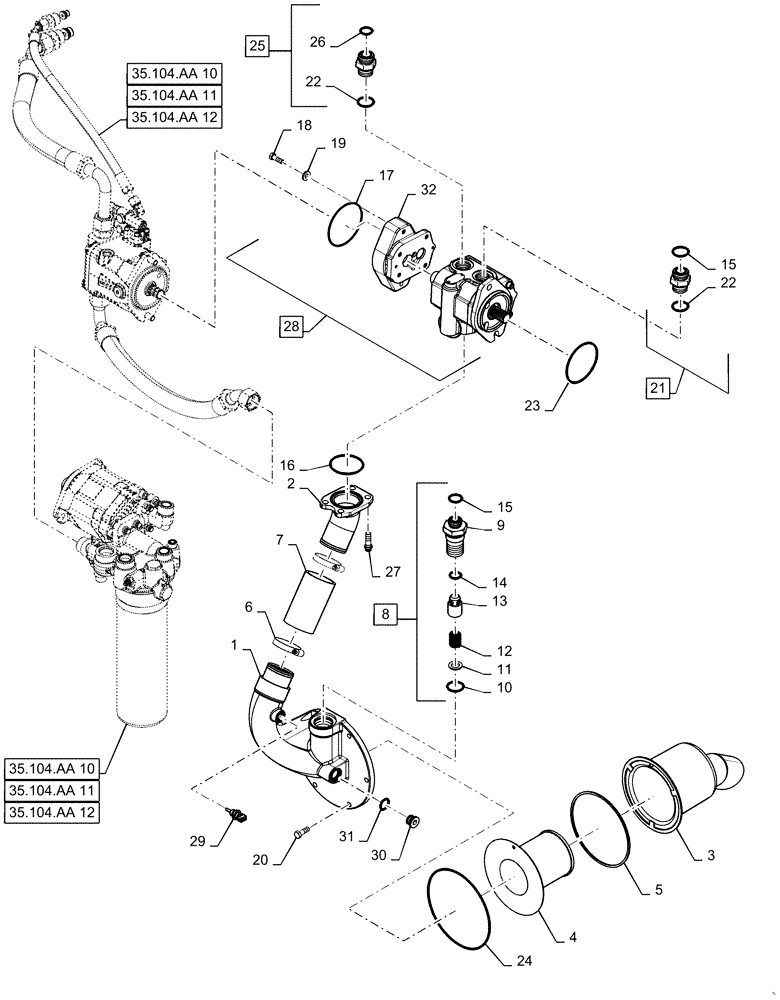

Запчасти Case IH MAGNUM 310 (35.105.AA[02]) - VAR - 429334, 429335 - CVT - CHARGE PUMP (35) - HYDRAULIC SYSTEMS

1

47462116

BASE PLATE

Dual Pump Suction

1шт.

2

47396506

TUBE

Charge Pump Outlet

1шт.

3

47360529

SHROUD

Suction Screen

1шт.

4

1348335C1

SCREEN

Pump Inlet

1шт.

5

1342641C1

GASKET,183.6mm ID x 192mm OD x 3mm Thk

Rubber, Suction Screen Shroud

1шт.

6

214-1448

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

2шт.

7

407386A1

HOSE

Flange To Pump 63mm

1шт.

8

407616A2

VALVE,M42 x 2

Assy Lube Relief; Incl 9 - 15

1шт.

9

407615A2

VALVE BODY

Lube Relief

1шт.

10

107452A1

CIRCLIP

Retaining

1шт.

11

107456A1

CUP WASHER

Lube Relief

1шт.

12

431858A1

SPRING

Lube Relief

1шт.

13

107453A1

PLUNGER

Lube Relief

1шт.

14

637-64386

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

1шт.

15

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

16

238-5232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

1шт.

17

87487899

GASKET

Square Gear Pump Flange

1шт.

18

615-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

2шт.

19

896-16012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

20

806-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

6шт.

21

700-164

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 15, 22

1шт.

22

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

2шт.

23

238-5345

O-RING,0.21" Thk x 3.975" ID, -345, Cl 5, 75 Duro

1шт.

24

238-6266

O-RING,0.139" Thk x 7.984" ID, -266, Cl 6, 90 Duro

1шт.

25

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 22, 26

1шт.

26

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

27

868-12035

12 PT SCREW,M12 x 35mm, Cl 12.9

4шт.

28

84425104

LUBE PUMP,39.49 CC

Charge, CVT; Incl 17, 32

1шт.

29

84574743

SENSOR

Temperature, Serial Range: -ZGR*05109

1шт.

29

48013815

TEMPERATURE SENDER

, Start Serial: ZGR*05110

1шт.

30

221579A1

PLUG,M22 x 1.5 ORB

W/O Emergency Steering

1шт.

31

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

32

87483993

COVER

Twin/Mega Pump Mount

1шт.
