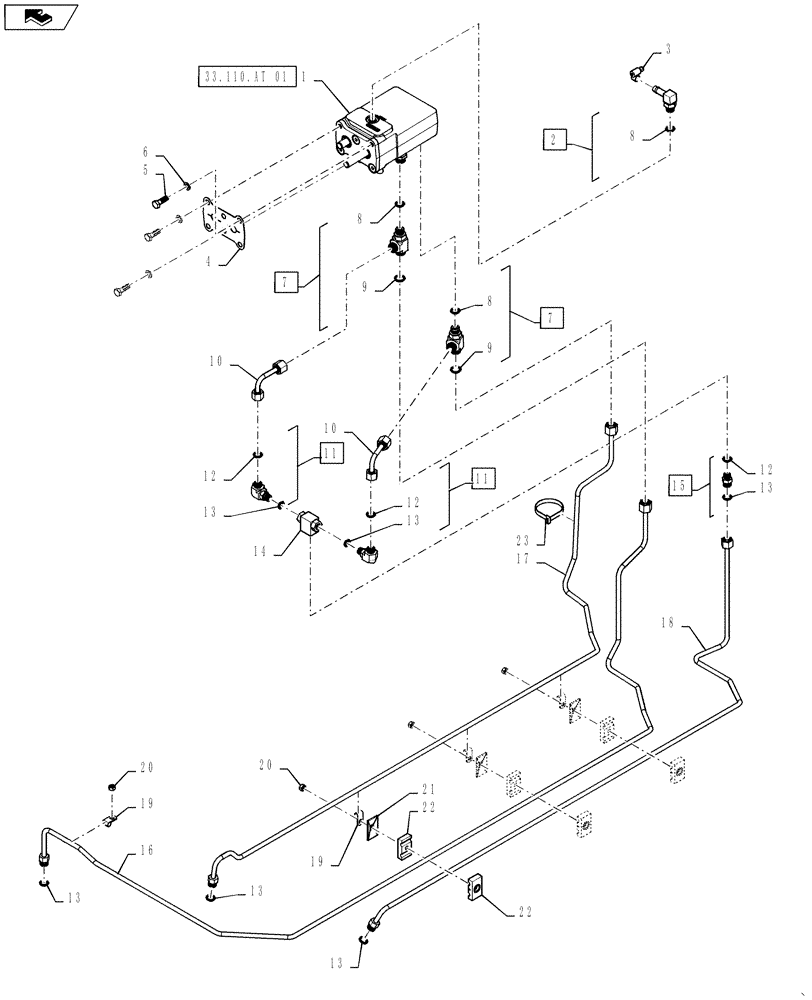

Запчасти Case IH MAGNUM 310 (33.220.AC[03]) - VAR - 420514, 420517 - TRAILER BRAKE VALVE, HYDRAULIC SYSTEM - CVT - STD AXLE (33) - BRAKES & CONTROLS

1

87731065

BRAKE VALVE

Brake, Serial Range: -ZFR*05000

1шт.

1

84512003

BRAKE VALVE

, Start Serial: ZFR*05001

1шт.

2

87454069

ELBOW,90 Degree Hose Barb, 1/2" ID x M18 x 1.5 Male ORB

Incl 8

1шт.

3

214-1408

HOSE CLAMP,11.2mm - 19.8mm

1шт.

4

407142A1

GASKET

Brake Valve

1шт.

5

806-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

3шт.

6

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

3шт.

7

700-412

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 8 - 9

2шт.

8

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

3шт.

9

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

10

442240A1

TUBE

Brake Shuttle Valve to Brake Valve

2шт.

11

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 12 - 13

2шт.

12

238-6006

O-RING,0.07" Thk x 0.114" ID, -6, Cl 6, 90 Duro

3шт.

13

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

6шт.

14

84362467

VALVE,9/16" - 18 x 9/16" - 18

Hyd Brake Shuttle

1шт.

15

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 12 - 13

1шт.

16

84249889

TUBE

LH Brake Workport

1шт.

17

84151822

TUBE

RH Brake Pressure

1шт.

18

84151750

TUBE

Trailer Brake Pilot

1шт.

19

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

4шт.

20

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

21

384870A1

PLATE

Hose Clamp Cover

3шт.

22

1546024C1

CLAMP

Tube Hyd

3шт.

23

86991007

CABLE TIE,509mm L

509mm L

1шт.
