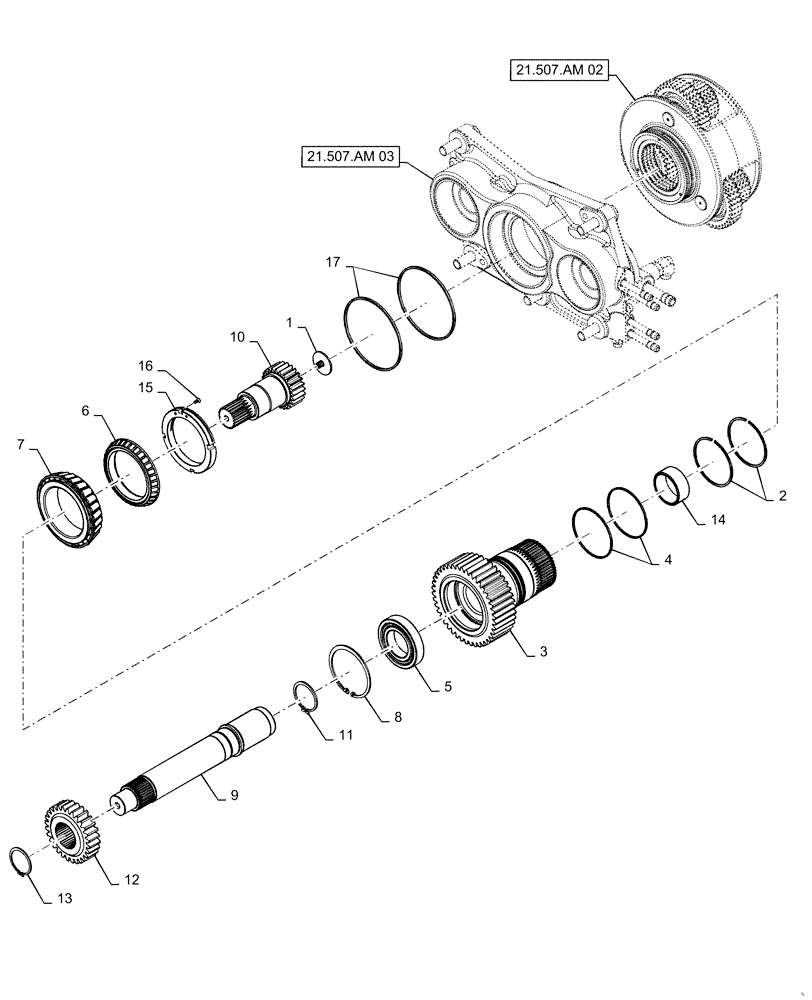

Запчасти Case IH MAGNUM 310 (21.507.AM[01]) - VAR - 429334, 429335 - TRANSMISSION - CVT - PLANETARY MOUNTING / WALL ASSY. (21) - TRANSMISSION

1

47382008

PLUG

Sun Shaft

1шт.

2

87682426

SNAP RING,#105, Ext

2шт.

3

84598088

GEAR

Carrier Output Drive

1шт.

4

84562847

SEALING RING COLLAR,Locking, 106.91mm ID x 110.91mm OD x 2.87mm Thk

2шт.

5

698032R1

BALL BEARING,60mm x 110mm x 22mm

1000 RPM Output Shaft

1шт.

6

K395101

TAPERED BEARING,109.5mm ID x 126mm x 21.4mm L

1шт.

7

79031757

TAPERED BEARING,110mm ID x 170mm OD x 38mm W

1шт.

8

100-21433

SNAP RING,4.331", Int, #433

1шт.

9

47390415

SHAFT

Sun Output

1шт.

10

47377270

SHAFT

Sun Output W/ 24T Gear

1шт.

11

800-5160

SNAP RING,M60, Ext

1шт.

12

84294523

GEAR

2nd Sun Output Drive

1шт.

13

800-1156

SNAP RING,M56, Ext

1шт.

14

1286016C1

NEEDLE BEARING,Needle, 63.49mm ID x 73.05mm OD x 31.75mm W

1шт.

15

84565940

BEARING LOCK NUT,M108 x 2 x 139.70mm OD, 16mm H

1шт.

16

87309531

HEX SOC SCREW,FLAT, M5 x 0.8 x 12mm, Cl 10.9

2шт.

17

84566403

SEALING RING COLLAR,Locking, 155.41mm ID x 161.41mm OD x 4mm Thk

2шт.
