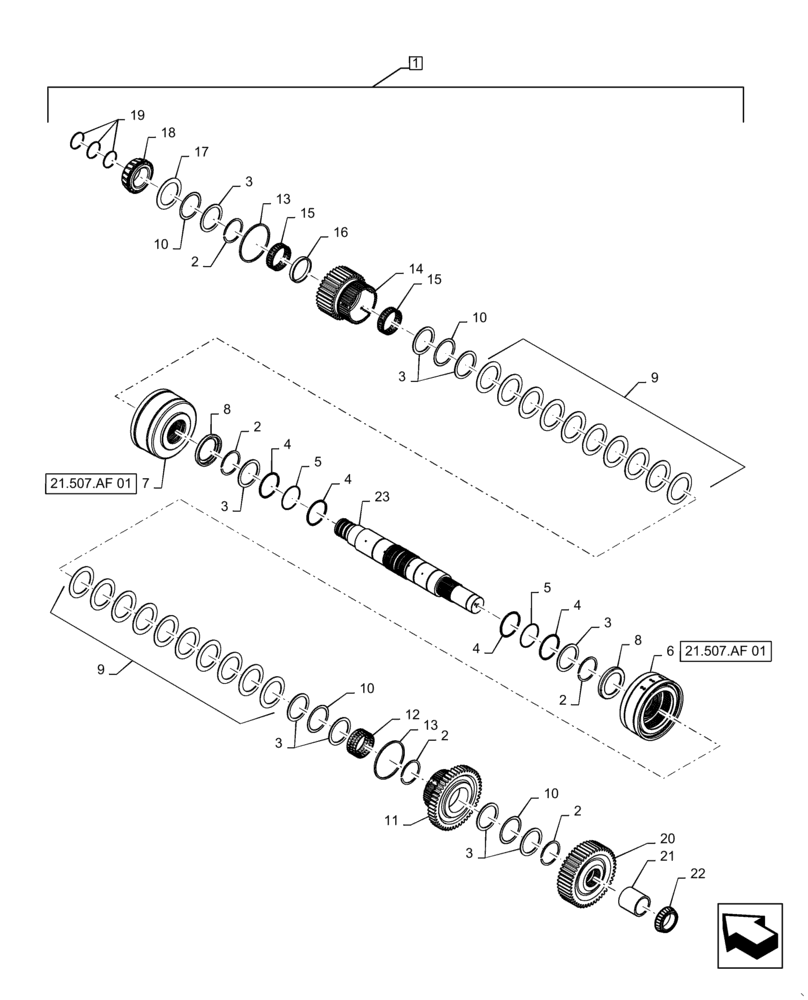

Запчасти Case IH MAGNUM 310 (21.507.AG[07]) - VAR - 429334, 429335 - TRANSMISSION - CVT - SHAFT ASSY - RANGE 3 & 4 (21) - TRANSMISSION

1

84362324

SHAFT

Range 3 & 4, Incl 2 - 23

1шт.

2

101-11300

SNAP RING,#300, 2.830, Ext

5шт.

3

87373394

THRUST WASHER,76.44mm ID x 94.74mm OD x 3.16mm Thk

9шт.

4

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

4шт.

5

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

2шт.

6

NSS

NOT SOLD SEPARAT

Clutch, 5 Plate

1шт.

7

NSS

NOT SOLD SEPARAT

Clutch, 7 Plate

1шт.

8

87476381

SLEEVE,76.45mm ID x 107mm OD x 12.5mm L

Clutch Lube

2шт.

9

47553939

BELLEVILLE SPRING

Piston Return

18шт.

10

A75158

THRUST BEARING,76.25mm ID x 95mm OD x 1.98mm W

4шт.

11

87719462

GEAR

Range 4

1шт.

12

1-2273

ROLLER BEARING,3" ID x 1.5"

1шт.

13

87373511

SEAL

Clutch Hub

2шт.

14

84211211

DRIVEN GEAR

Range 3

1шт.

15

70639547

ROLLER BEARING,76.19mm ID x 85.77mm OD x 25.4mm W

2шт.

16

87373500

SPACER,77mm ID x 85mm OD x 11.3mm L

Bearing

1шт.

17

87388828

THRUST WASHER,67mm ID x 106mm OD x 3mm Thk

1шт.

18

ST2110

ROLLER BEARING,66.67mm ID x 38.35mm W

1шт.

19

1286025C1

SEALING RING,Locking, 53.91mm ID x 57.91mm OD x 2.87mm Thk

3шт.

20

84211212

DRIVEN GEAR

Range 3 & 4 Drop

1шт.

21

87373502

SLEEVE

Gear Retaining

1шт.

22

87555833

BEARING CONE,55mm ID x 23mm W

1шт.

23

47416557

SHAFT

Range 3 & 4 w/Plugs

1шт.
