Запчасти Case IH MAGNUM 310 (21.507.AG[06]) - VAR - 429334, 429335 - TRANSMISSION - CVT - SHAFT ASSY RANGE 1 & 2 (21) - TRANSMISSION

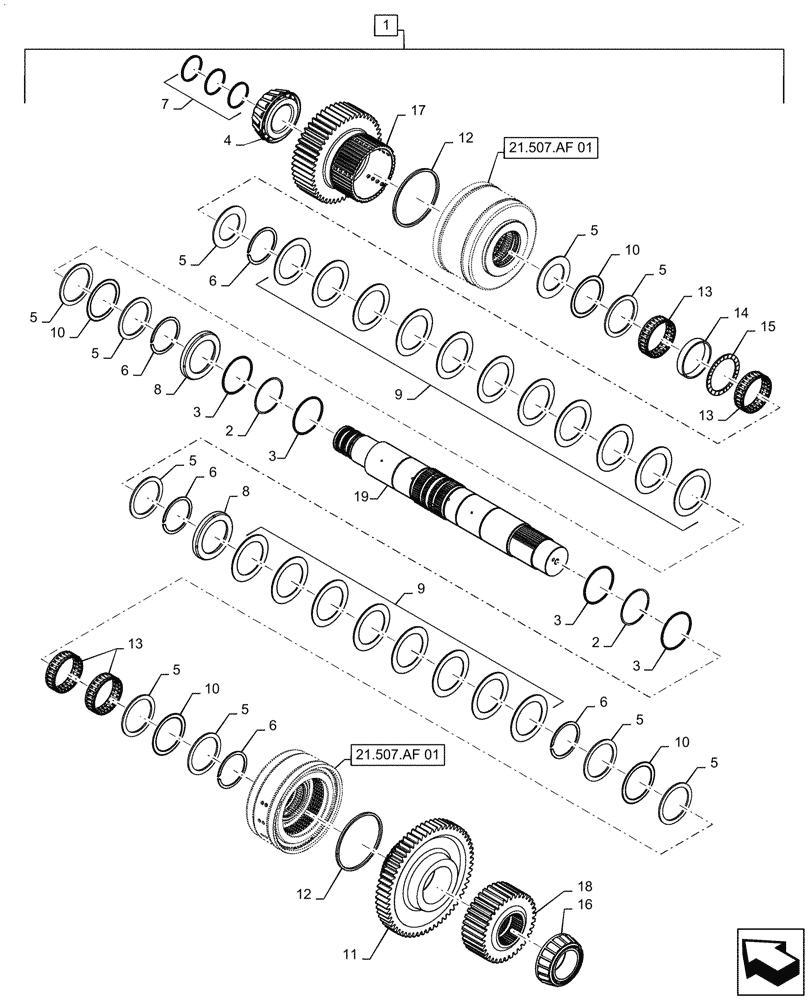

Схема запчастей Case IH MAGNUM 310 - (21.507.AG[06]) - VAR - 429334, 429335 - TRANSMISSION - CVT - SHAFT ASSY RANGE 1 & 2 (21) - TRANSMISSION
21.507.af 01
5
3
1
14
2
13
10
5
5
3
6
2
5
12
6
18
11
5
10
16
6
15
17
9
8
5
4
5
9
19
10
6
13
10
3
5
12
6
3
13
7
5
8
5
21.507.af 01

Артикул

Название

Примечание

Количество

1

84362323

SHAFT

Assy, Range 1 and 2, Incl 2 - 19

1шт.

2

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

2шт.

3

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

4шт.

4

ST2110

ROLLER BEARING,66.67mm ID x 38.35mm W

1шт.

5

87373394

THRUST WASHER,76.44mm ID x 94.74mm OD x 3.16mm Thk

9шт.

6

101-11300

SNAP RING,#300, 2.830, Ext

5шт.

7

1286025C1

SEALING RING,Locking, 53.91mm ID x 57.91mm OD x 2.87mm Thk

3шт.

8

87476381

SLEEVE,76.45mm ID x 107mm OD x 12.5mm L

Clutch Lube

2шт.

9

87624381

BELLEVILLE SPRING

Piston Return

20шт.

10

A75158

THRUST BEARING,76.25mm ID x 95mm OD x 1.98mm W

4шт.

11

87722918

GEAR

Range Two Driven

1шт.

12

87373511

SEAL

Clutch Hub

2шт.

13

70639547

ROLLER BEARING,76.19mm ID x 85.77mm OD x 25.4mm W

4шт.

14

87476886

SPACER,79mm ID x 85mm OD x 15.4mm L

1шт.

15

84165386

THRUST WASHER,60.55mm ID x 95mm OD x 3mm Thk

Bearing

1шт.

16

87392213

BEARING CONE,60.33mm ID x 44.45mm W

1шт.

17

84211209

DRIVEN GEAR

Range One Driven

1шт.

18

84165385

GEAR

Range One & Two Drop

1шт.

19

47416555

SHAFT

Range 1 & 2 w/Plug

1шт.

Выбрано товаров: 19
