(21.507.AG[05]) - VAR - 429334, 429335 - TRANSMISSION - CVT - TRANSMISSION PTO INPUT SHAFT ASSY

Запчасти Case IH MAGNUM 310 (21.507.AG[05]) - VAR - 429334, 429335 - TRANSMISSION - CVT - TRANSMISSION PTO INPUT SHAFT ASSY (21) - TRANSMISSION

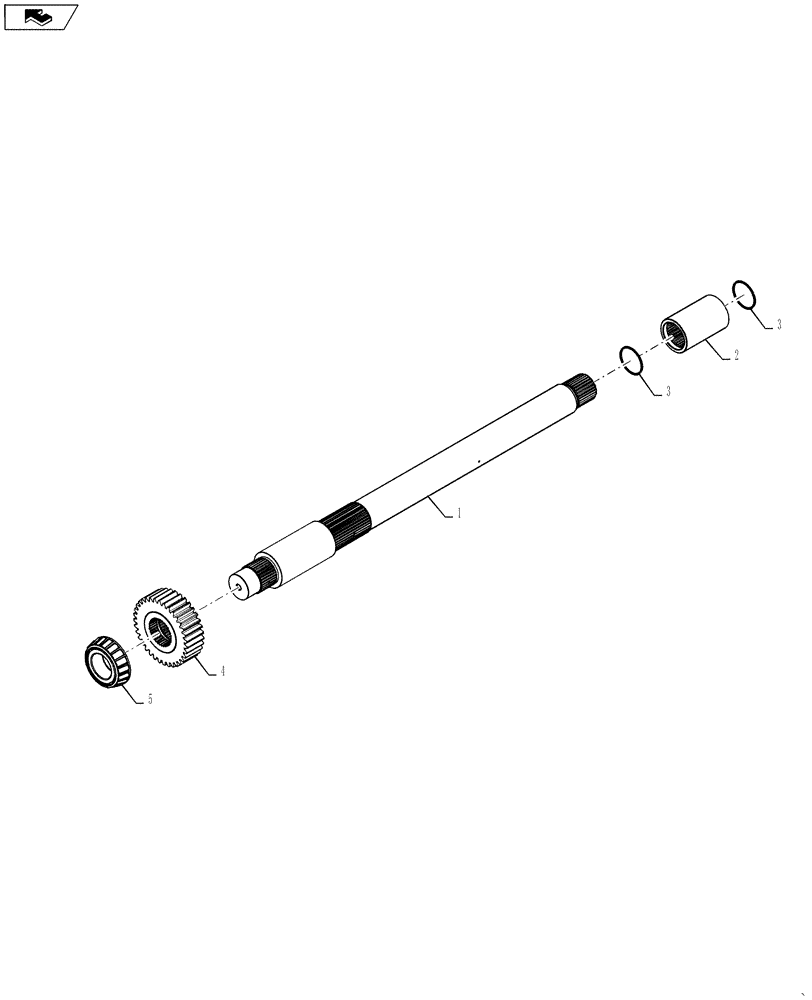

Схема запчастей Case IH MAGNUM 310 - (21.507.AG[05]) - VAR - 429334, 429335 - TRANSMISSION - CVT - TRANSMISSION PTO INPUT SHAFT ASSY (21) - TRANSMISSION
home
5
4
3
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47379096

SHAFT

Transmission PTO Input

1шт.

2

47370066

SPLINED COUPLING,32T

PTO Shaft, 32T

1шт.

3

238-5225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

2шт.

4

84211216

DRIVEN GEAR

PTO Drive, 35T

1шт.

5

87373412

BEARING CONE,50.8mm ID x 30.94mm W

1шт.
