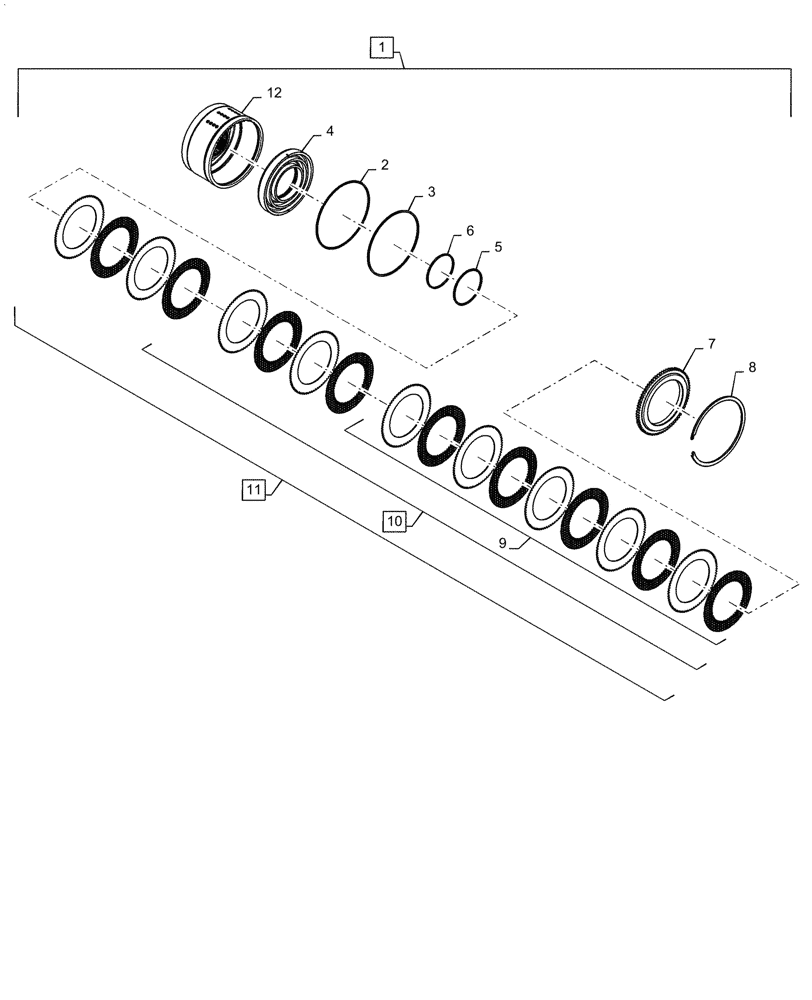

Запчасти Case IH MAGNUM 310 (21.507.AF[01]) - VAR - 429334, 429335 - TRANSMISSION - CVT - CLUTCH ASSY - 5, 7 & 9 PLATE (21) - TRANSMISSION

1

47409028

CLUTCH & DISC ASSY

5 Plate, Incl 2 - 12

1шт.

1

84552214

CLUTCH & DISC ASSY

7 Plate, Incl 2 - 12

1шт.

1

84552215

CLUTCH & DISC ASSY

9 Plate, Incl 2 - 12

1шт.

2

87016963

O-RING,0.103" Thk x 7.487" ID, -167, Cl 7, 75 Duro

1шт.

3

84333021

SEAL

Piston

1шт.

4

84554000

PISTON

w/Chirp

1шт.

5

238-5241

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

1шт.

6

87486121

SEAL

Piston

1шт.

7

87373496

CLUTCH PLATE

Backing Plate

1шт.

8

87373501

SNAP RING

1шт.

9

47407062

CLUTCH PACK

5 Plate Collated Pack, Incl 5 Grooved Friction Plates and 5 Separator Plates

1шт.

10

47407064

CLUTCH

7 Plate Collated Pack, Incl 7 Grooved Friction Plates and 7 Separator Plates

1шт.

11

47407065

CLUTCH

9 Plate Collated Pack, Incl 9 Grooved Friction Plates and 9 Separator Plates

1шт.

12

84362335

CARRIER

Clutch, 5 Plate

1шт.

12

84362337

CARRIER

Clutch, 7 Plate

1шт.

12

84362338

CARRIER

Clutch, 9 Plate

1шт.
