Запчасти Case IH MAGNUM 310 (21.506.BG[04]) - VAR - 429334, 429335 - TRANSMISSION - CVT - HYDRO PUMP GEAR HOUSING ASSY. (21) - TRANSMISSION

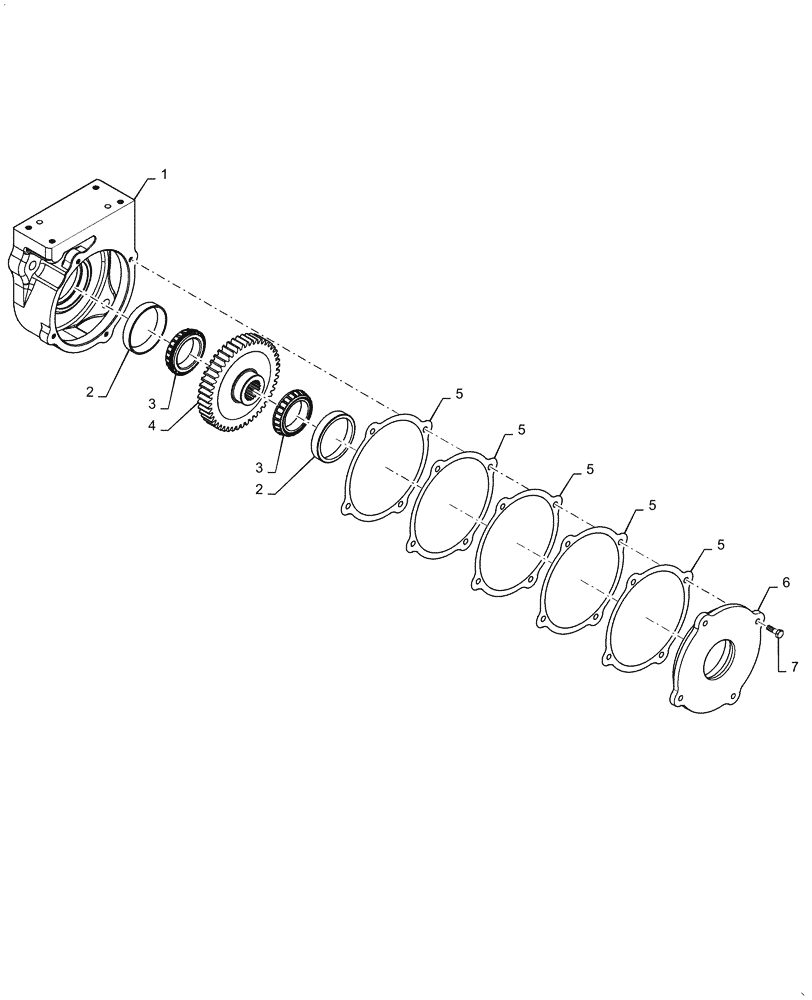

Схема запчастей Case IH MAGNUM 310 - (21.506.BG[04]) - VAR - 429334, 429335 - TRANSMISSION - CVT - HYDRO PUMP GEAR HOUSING ASSY. (21) - TRANSMISSION
5
3
2
5
2
4
7
3
5
5
6
1
5

Артикул

Название

Примечание

Количество

1

47359190

MOTOR HOUSING

Hydro Pump Gear

1шт.

2

29214H

BEARING CUP,110mm OD x 18.82mm W

2шт.

3

102161H

BEARING ASSY,68.262mm ID x 21.996mm

2шт.

4

84267880

GEAR

Hydrostatic Pump Driven

1шт.

5

84221156

SHIM,216mm ID x 280mm OD x 0.08mm Thk

1шт.

5

84221157

SHIM,216mm ID x 280mm OD x 0.1mm Thk

1шт.

5

84221158

SHIM,216mm ID x 280mm OD x 0.13mm Thk

1шт.

5

84221159

SHIM,216mm ID x 280mm OD x 0.3mm Thk

1шт.

5

84221160

SHIM,216mm ID x 280mm OD x 0.76mm Thk

1шт.

6

84526748

BEARING COVER

Hydro Pump Bearing

1шт.

7

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

Выбрано товаров: 11
