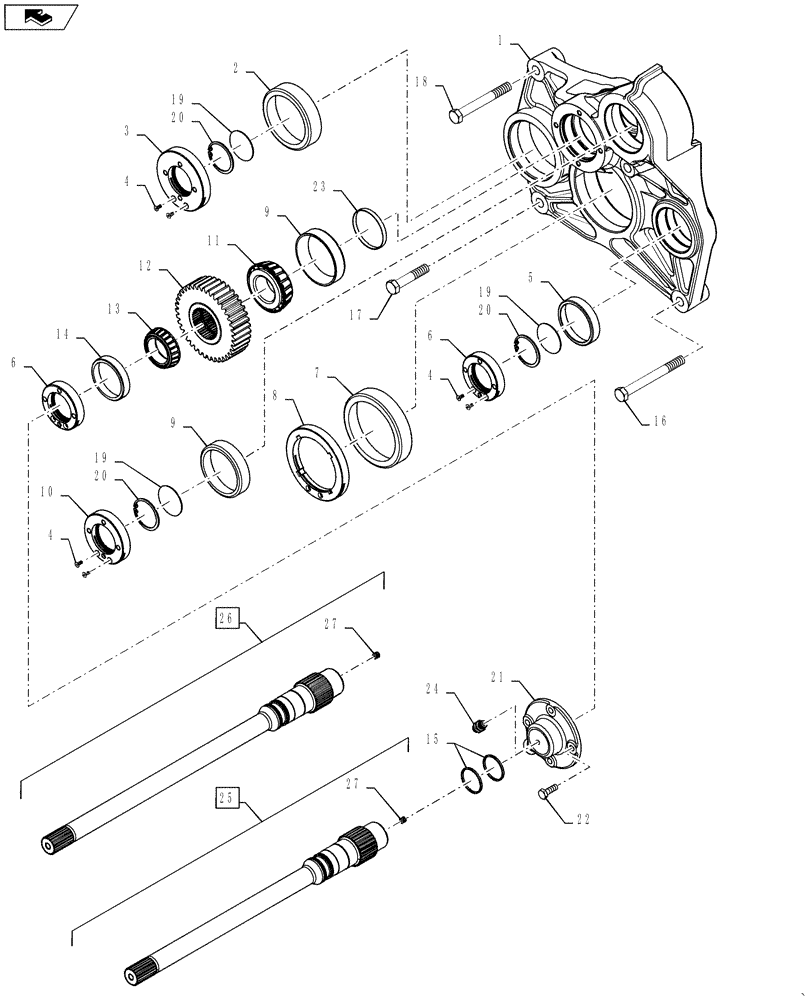

Запчасти Case IH MAGNUM 310 (21.506.BG[03]) - VAR - 429334, 429335 - TRANSMISSION - CVT - REAR PLATE ASSY (21) - TRANSMISSION

1

84583328

BEARING CARRIER

Rear Plate

1шт.

2

9840429

BEARING CUP,108 mm ID x 122.238 mm OD x 29.718 mm

1шт.

3

84486508

BEARING LOCK NUT,M120 x 2 OD Thd, 20mm H

1шт.

4

87309531

HEX SOC SCREW,FLAT, M5 x 0.8 x 12mm, Cl 10.9

10шт.

5

87555843

BEARING CUP,90mm OD x 23mm W

1шт.

6

47405792

BEARING LOCK NUT,M90 x 2 OD Thd, 20mm H

2шт.

7

13249D

BEARING CUP,152.4127 mm OD x 39.7895 mm

1шт.

8

87627387

BEARING LOCK NUT

1шт.

9

360325R1

BEARING, CUP,104.775 mm OD x 23.812 mm

2шт.

10

84486507

BEARING LOCK NUT,M100 x 2 OD Thd, 20mm H

1шт.

11

87373412

BEARING CONE,50.8mm ID x 30.94mm W

1шт.

12

84211218

DRIVEN GEAR

PTO Driven

1шт.

13

364463C91

BEARING ASSY,2.0005" ID x 3.2283" OD x 0.875"

1шт.

14

87373443

BEARING CUP,82.93mm OD x 16.51mm W

1шт.

15

1286024C1

SEALING RING,Locking, 46.61mm ID x 50.61mm OD x 2.87mm Thk

2шт.

16

828-16150

BOLT,Hex, M16 x 2 x 150mm, Cl 10.9

2шт.

17

828-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

1шт.

18

828-16130

BOLT,Hex, M16 x 2 x 130mm, Cl 10.9

1шт.

19

84486519

SHIELD

Bearing Nut Lube

3шт.

20

800-2160

SNAP RING,M60, Int

3шт.

21

84583329

HYDRAULIC MANIFOLD

Lube

1шт.

22

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

4шт.

23

87282017

PLUG,80mm OD x 10mm Thk

Cover

1шт.

24

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

1шт.

25

47393287

SHAFT

Standard PTO Output W/ Orifice, Incl 27

1шт.

26

47393292

SHAFT

HD PTO Output W/ Orifice, Incl 27

1шт.

27

84557653

SET SCREW,M10 x 1.5 x 10mm, Cl 8.8

1шт.
