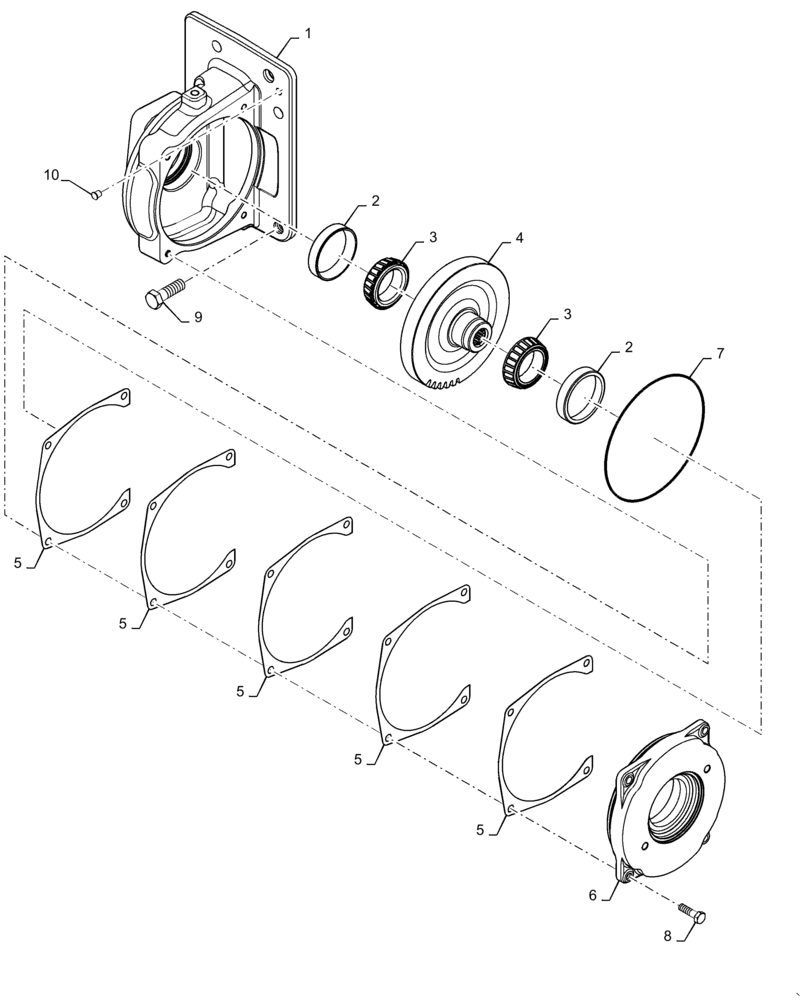

Запчасти Case IH MAGNUM 310 (21.506.BG[02]) - VAR - 429334, 429335 - TRANSMISSION - CVT - PUMP DRIVE ASSY (21) - TRANSMISSION

1

47387209

HOUSING

Pump Drive

1шт.

2

87373443

BEARING CUP,82.93mm OD x 16.51mm W

2шт.

3

364463C91

BEARING ASSY,2.0005" ID x 3.2283" OD x 0.875"

2шт.

4

84211225

DRIVEN GEAR

Hydraulic Pump

1шт.

5

87643067

SHIM,0.76mm Thk

Pump Drive Cover

1шт.

5

87643068

SHIM,205mm ID x 191.5mm OD x 0.3mm Thk

Pump Drive Cover

1шт.

5

87643069

SHIM,205mm ID x 191.5mm OD x 0.13mm Thk

Pump Drive Cover

1шт.

5

87643081

SHIM,205mm ID x 191.5mm OD x 0.1mm Thk

Pump Drive Cover

1шт.

5

87643082

SHIM,205mm ID x 191.5mm OD x 0.08mm Thk

Pump Drive Cover

1шт.

6

47371763

COVER

Pump Drive

1шт.

7

238-5170

O-RING,0.103" Thk x 7.75" ID, -170, Cl 5, 75 Duro

1шт.

8

613-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

4шт.

9

628-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

5шт.

10

353-77

PLUG,Cap, .576" OD

1шт.
