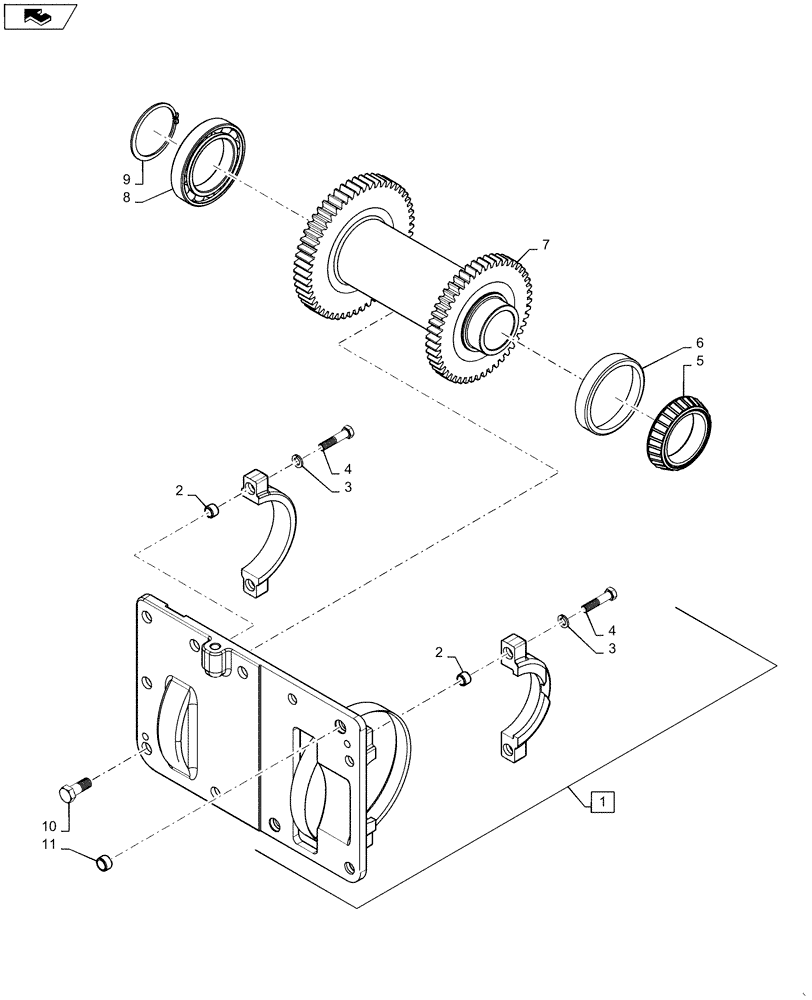

Запчасти Case IH MAGNUM 310 (21.506.BG[01]) - VAR - 429334, 429335 - TRANSMISSION - CVT - PUMP DRIVE GEAR ASSY (21) - TRANSMISSION

1

47410531

SUPPORT

Incl 2 - 4

4шт.

2

A50011

SLEEVE

Dowel

4шт.

3

892-10012

LOCK WASHER,M12

4шт.

4

828-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9

4шт.

5

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

1шт.

6

622337C1

BEARING CUP,129.99mm OD x 23.90mm Thk

1шт.

7

84300822

GEAR

Pump Drive

1шт.

8

84265402

BALL BEARING,90mm ID x 140mm OD x 24mm W

90 x 140 x 24

1шт.

9

800-1190

SNAP RING,M90, Ext

1шт.

10

628-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

6шт.

11

A175944

DOWEL,22.1mm OD x 13.5mm L

Sleeve

2шт.
