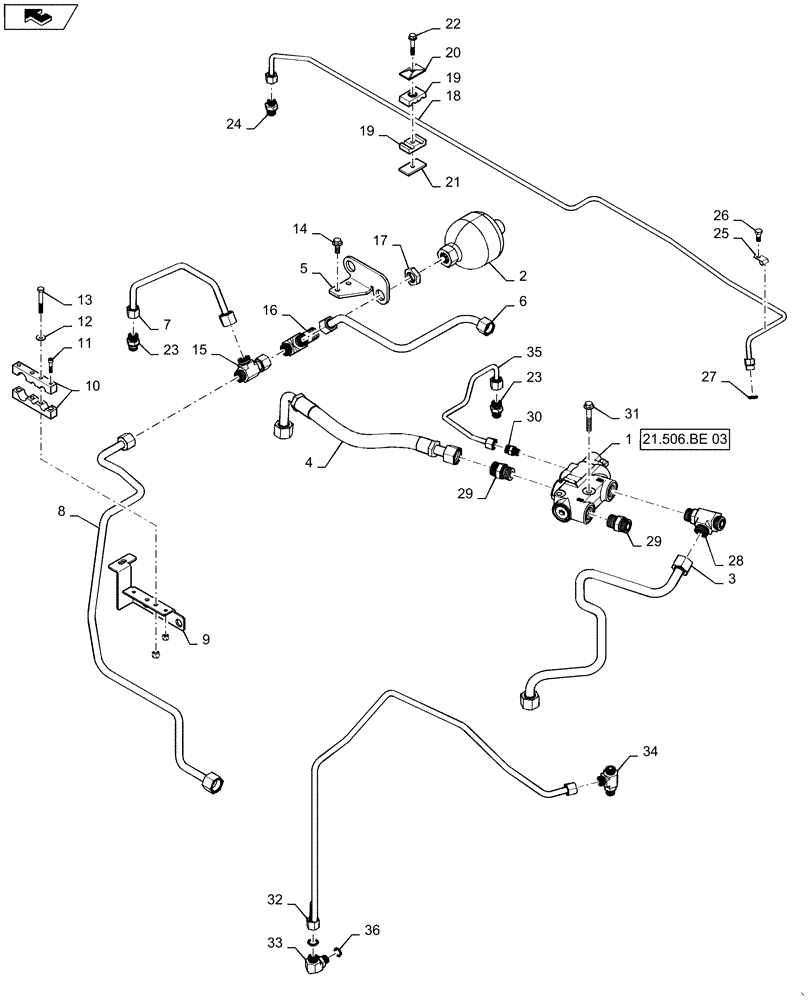

Запчасти Case IH MAGNUM 310 (21.506.BE[02]) - VAR - 429334, 429335 - TRANSMISSION - CVT - REGULATED CIRCUIT, B12 (21) - TRANSMISSION

1

47411677

VALVE

Cooler Bypass

1шт.

2

87730802

ACCUMULATOR,0.75L

PWM Trans Control

1шт.

3

84496933

TUBE

Cooler Bypass to Filter

1шт.

4

87625532

HOSE,19.05mm ID x 550mm L, SAE 100R16

Charge Pump to Cooler Bypass

1шт.

5

87603876

BRACKET

Accumulator Support

1шт.

6

87603877

TUBE

Regulator Supply

1шт.

7

87603878

TUBE

PTO / Diff. Lock Regulator Supply

1шт.

8

84297634

TUBE

CVT / PTO Regulator Supply

1шт.

9

84518975

BRACKET

Tube Clamp Mounting

1шт.

10

84155045

CLAMP

Tube

1шт.

11

864-6030

HEX SOC SCREW,M6 x 30mm, Cl 8.8

2шт.

12

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

13

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

2шт.

14

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

2шт.

15

701-433

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Female ORFS

1шт.

16

701-429

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Male ORFS

1шт.

17

701-919

BHD LOCK NUT,1" - 14

1шт.

18

47399408

TUBE

Front Diff. Lock Supply

1шт.

19

1546024C1

CLAMP

2 Hole, 9.52 - 9.52mm Diameter, Ribbed

1шт.

20

384870A1

PLATE

Clamp Cover

1шт.

21

384871A1

PLATE

Hose Clamp

1шт.

22

844-8045

BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

1шт.

23

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

2шт.

24

700-106

HYD CONNECTOR,11/16" - 16 Male ORFS x M18 x 1.5 Male ORB

1шт.

25

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

1шт.

26

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

27

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

28

700-428

TEE,1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

1шт.

29

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

2шт.

30

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

1шт.

31

844-10065

BOLT,Hvy Hex, M10 x 65mm, Cl 8.8

2шт.

32

47385213

TUBE

Trans Valve Regulator Supply

1шт.

33

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

1шт.

34

700-412

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

1шт.

35

47385209

TUBE

Cooler Bypass Drain

1шт.

36

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.
