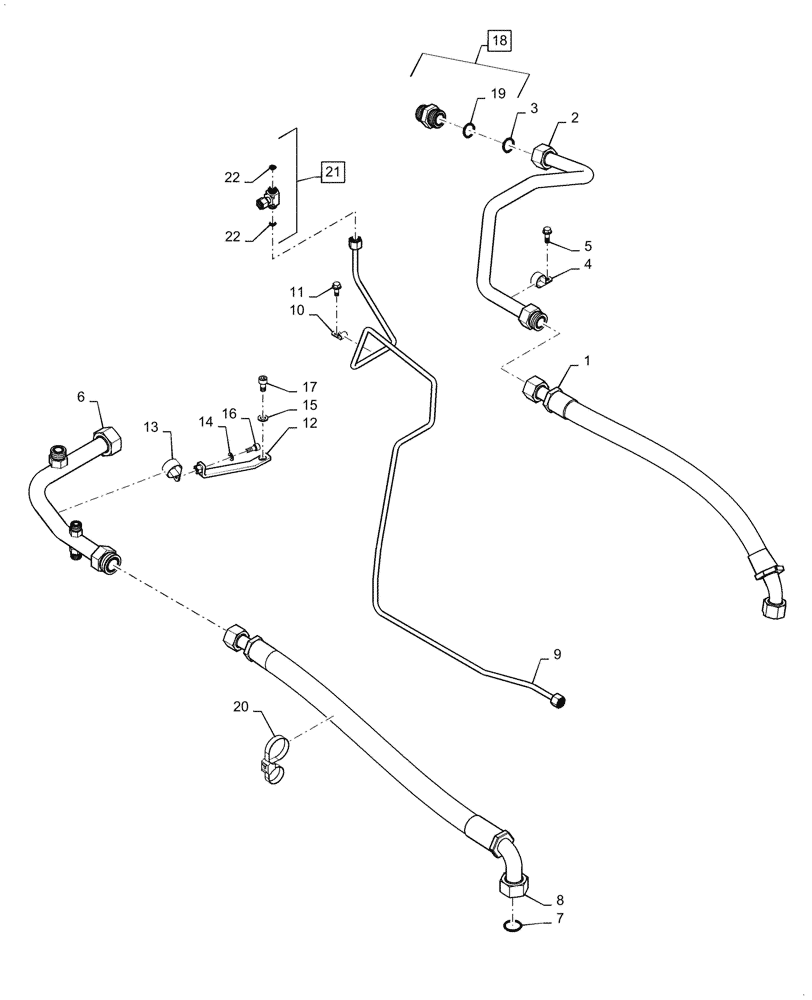

Запчасти Case IH MAGNUM 310 (21.506.AQ[01]) - VAR - 420302, 429334, 429335 - TRANSMISSION - CVT - HIGH PRESSURE HYDRAULIC CIRCUIT, STD REAR AXLE (21) - TRANSMISSION

1

84488839

HYDRAULIC HOSE,25.4mm ID x 750mm L, SAE 100R7

Pump, Out, Standard Flow CVT

1шт.

Std Rear Axle (VAR - 420216, 420218, 420219, 429284)

1шт.

1

84425558

HYDRAULIC HOSE,25.4mm ID x 1400mm L, SAE 100R17

Pump, Out, Standard Flow CVT

1шт.

HD Rear Axle (VAR - 429357, 429358)

1шт.

2

84518900

HYD TUBE

Priority Valve Supply

1шт.

Std Rear Axle (VAR - 420216, 420218, 420219, 429284)

1шт.

3

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

4

515-22254

CLAMP,1", Insul, 5/16" Bolt

1шт.

5

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

1шт.

6

84497202

HYD TUBE

Aux Manifold Return

1шт.

Std Rear Axle (VAR - 420216, 420218, 420219, 429284)

1шт.

6

84482787

TUBE

Aux Manifold Return

1шт.

HD Rear Axle (VAR - 429357, 429358)

1шт.

7

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

8

47442671

HOSE,31.75mm ID x 890mm L, SAE 100R1

Aux Manifold Return

1шт.

Std Rear Axle (VAR - 420216, 420218, 420219, 429284)

1шт.

9

84488841

HYD TUBE

Load Sense

1шт.

Std Rear Axle (VAR - 420216, 420218, 420219, 429284)

1шт.

9

47496250

HYD TUBE

Load Sense

1шт.

HD Rear Axle (VAR - 429357, 429358)

1шт.

10

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

1шт.

11

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

1шт.

12

84166354

CLAMP BRACKET

Tube Clamp

1шт.

13

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

1шт.

14

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

15

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

16

864-10020

HEX SOC SCREW,M10 x 20mm, Cl 8.8

1шт.

17

864-8020

HEX SOC SCREW,M8 x 20mm, Cl 8.8

1шт.

18

86580179

HYD CONNECTOR,1-7/16" - 12 ORFS x M33 x 2 ORB

Incl 19

1шт.

19

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

20

86991000

CLAMP

Dual Tie

2шт.

21

701-434

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 22

1шт.

22

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.
