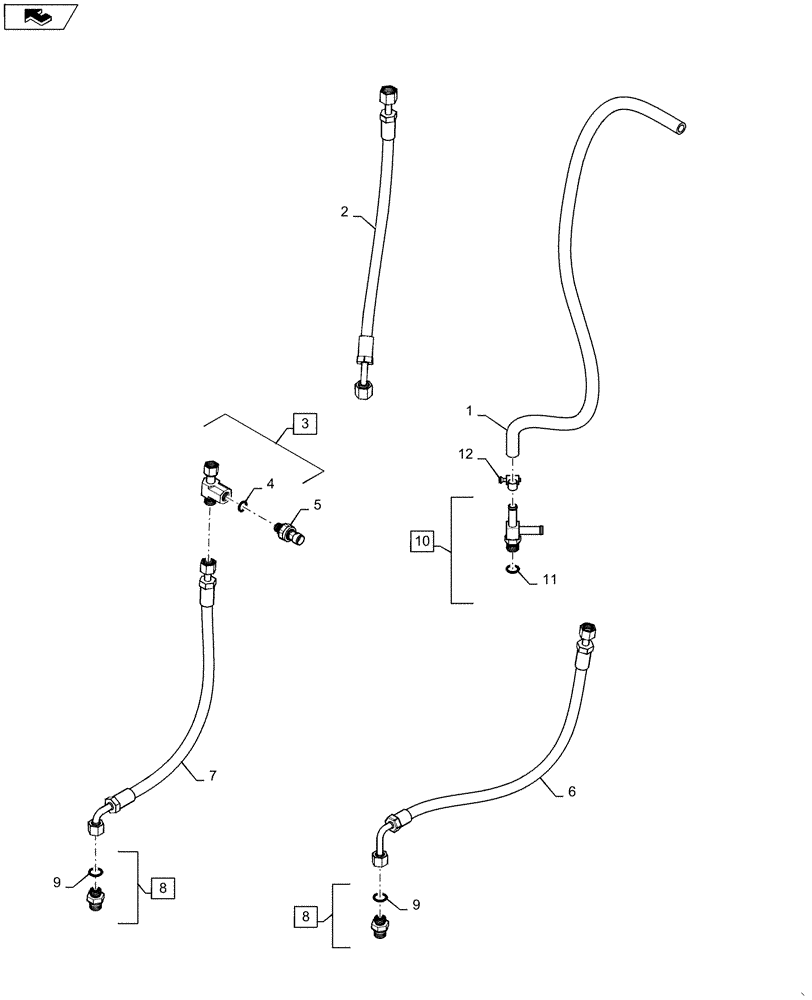

Запчасти Case IH MAGNUM 310 (21.506.AK[01]) - VAR - 429334, 429335 - TRANSMISSION - CVT - MASTER BRAKE HYDRAULICS (21) - TRANSMISSION

1

87653654

HOSE,12.7mm ID x 1000mm L, SAE 30R7

Hitch Cylinder Return

1шт.

2

47398088

HOSE,9.53mm ID x 550mm L

Brake Valve Supply

1шт.

3

84483854

TEE,11/16"-16 Swivel ORFS x 11/16"-16 ORFS x M14 x 1.5 ORB

Incl 4

1шт.

4

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

5

86987513

SENSOR

Transmission Pressure

1шт.

6

87625539

HYDRAULIC HOSE

Brake, RH

1шт.

7

84160886

HYDRAULIC HOSE,9.53mm ID x 675mm L

Brake, LH

1шт.

8

700-106

HYD CONNECTOR,11/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 9

2шт.

9

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

10

47411583

FITTING,Tee, 3/4"-16 Male ORB x 1/2" Hose Barb Run

Incl 11

1шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

12

214-1408

HOSE CLAMP,11.2mm - 19.8mm

1шт.
