Запчасти Case IH MAGNUM 310 (21.505.AQ[03]) - VAR - 429334, 429335 - TRANSMISSION - CVT - VALVE - TRANSMISSION CONTROL (21) - TRANSMISSION

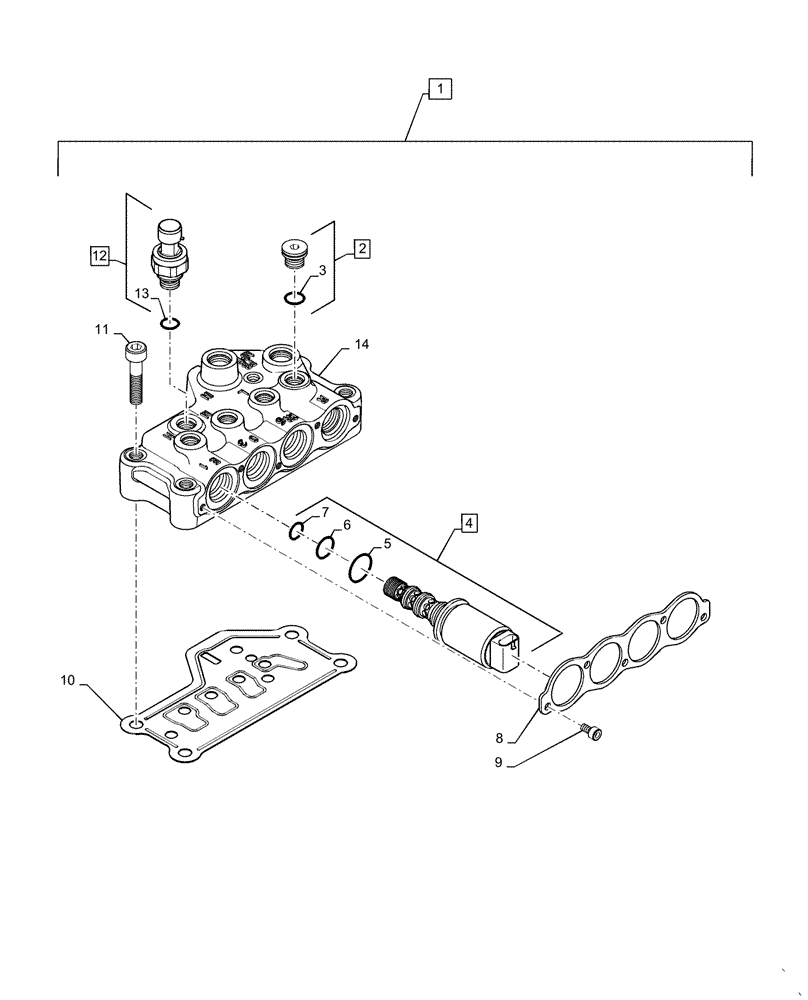

Схема запчастей Case IH MAGNUM 310 - (21.505.AQ[03]) - VAR - 429334, 429335 - TRANSMISSION - CVT - VALVE - TRANSMISSION CONTROL (21) - TRANSMISSION
9
7
2
13
12
11
4
14
8
6
5
10
1
3

Артикул

Название

Примечание

Количество

1

450729A2

VALVE

Incl 2 - 9, 12 - 14

1шт.

2

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Incl 3

4шт.

3

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

4

87440439

SOLENOID VALVE

Incl 5 - 7

4шт.

5

87014033

O-RING,0.07" Thk x 0.801" ID, -19, Cl 7, 75 Duro

1шт.

6

238-7016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 7, 75 Duro

1шт.

7

238-7015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 7, 75 Duro

1шт.

8

86985026

COVER,3mm Thk

PWM Plate

1шт.

9

864-5010

HEX SOC SCREW,M5 x 10mm, Cl 8.8

6шт.

10

87399290

GASKET,0.92mm Thk

PWM

1шт.

11

864-10055

HEX SOC SCREW,M10 x 55mm, Cl 8.8

4шт.

12

86987513

SENSOR

Pressure, Incl 13

1шт.

13

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

14

NSS

NOT SOLD SEPARAT

Valve Body, Incl in 1

1шт.

Выбрано товаров: 14
