Запчасти Case IH MAGNUM 310 (21.505.AQ[01]) - VAR - 429334, 429335 - TRANSMISSION - CVT - REGULATOR VALVE W/MANIFOLD (21) - TRANSMISSION

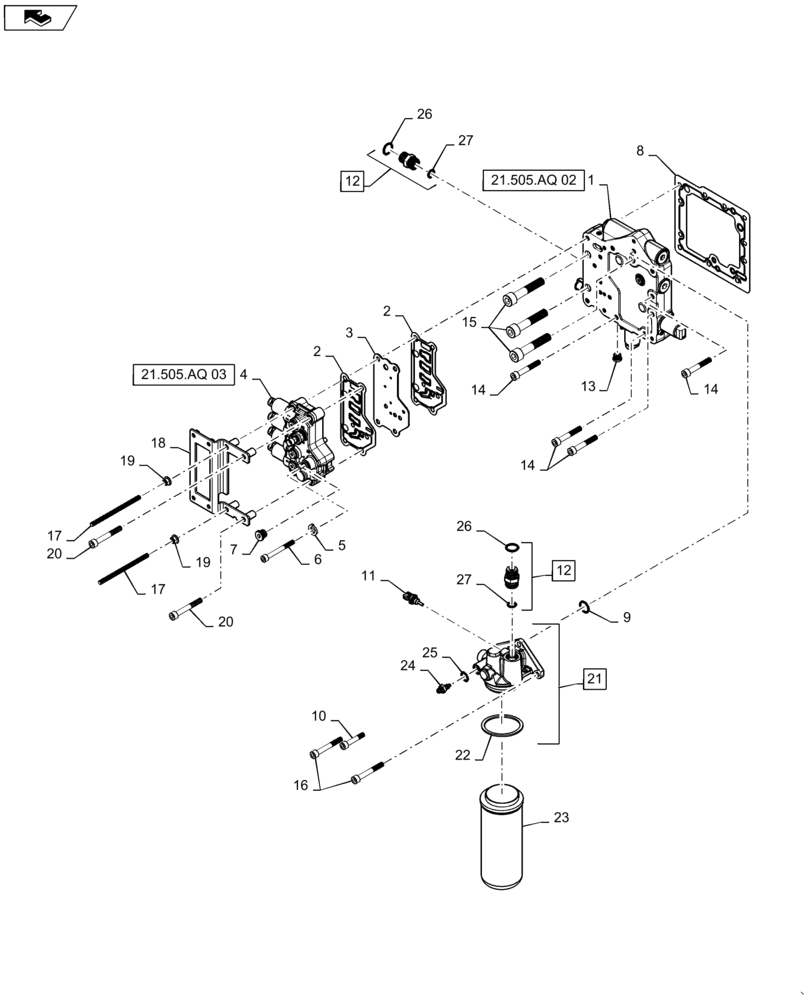

Схема запчастей Case IH MAGNUM 310 - (21.505.AQ[01]) - VAR - 429334, 429335 - TRANSMISSION - CVT - REGULATOR VALVE W/MANIFOLD (21) - TRANSMISSION
13
27
8
12
26
3
16
20
11
2
26
19
12
14
2
1
25
10
18
23
21.505.aq 02
9
24
21.505.aq 03
17
7
17
4
15
21
19
22
14
20
14
6
27
5

Артикул

Название

Примечание

Количество

1

47624588

VALVE

Regulator, CVT

1шт.

2

87399290

GASKET,0.92mm Thk

PWM

2шт.

3

84485073

PLATE

Plate, Orifice

1шт.

4

450729A2

VALVE

Assy PWM

1шт.

5

892-11008

LOCK WASHER,8mm ID

1шт.

6

861-8060

HEX SOC SCREW,M8 x 60mm, Cl 12.9

1шт.

7

221578A1

PLUG,M18 x 1.5 ORB

1шт.

8

84288128

GASKET,0.92mm Thk

Transmission Control Valve

1шт.

9

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

1шт.

10

861-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

1шт.

11

84574743

SENSOR

Temperature, Serial Range: -ZGR*05109

1шт.

11

48013815

TEMPERATURE SENDER

, Start Serial: ZGR*05110

1шт.

12

86579682

HYD CONNECTOR,1-3/16" - 12 ORFS x M27 x 2 ORB

Incl 26 - 27

1шт.

13

221579A1

PLUG,M22 x 1.5 ORB

1шт.

14

844-10065

BOLT,Hvy Hex, M10 x 65mm, Cl 8.8

4шт.

15

864-10055

HEX SOC SCREW,M10 x 55mm, Cl 8.8

3шт.

16

863-10075

HEX SOC SCREW,M10 x 75mm, 12.9

2шт.

17

47439289

THREADED ROD,M10 x 1.5 x 160mm L

2шт.

18

47429791

BRACKET

Harness Guard Mount

1шт.

19

829-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 10

2шт.

20

844-10090

BOLT,Hvy Hex, M10 x 90mm, Cl 8.8

2шт.

21

84545564

FILTER HEAD

CVT Regulated, Incl 22, 24 - 25

1шт.

22

84274694

WEAR RING,3.45" ID x 3.94" OD x 0.05" Thk

Friction

1шт.

23

84202794

HYDRAULIC OIL FILTER,Spin On, 9.41"

1шт.

24

1957801C1

PRESSURE SWITCH

Differential

1шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

26

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

27

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

Выбрано товаров: 28
