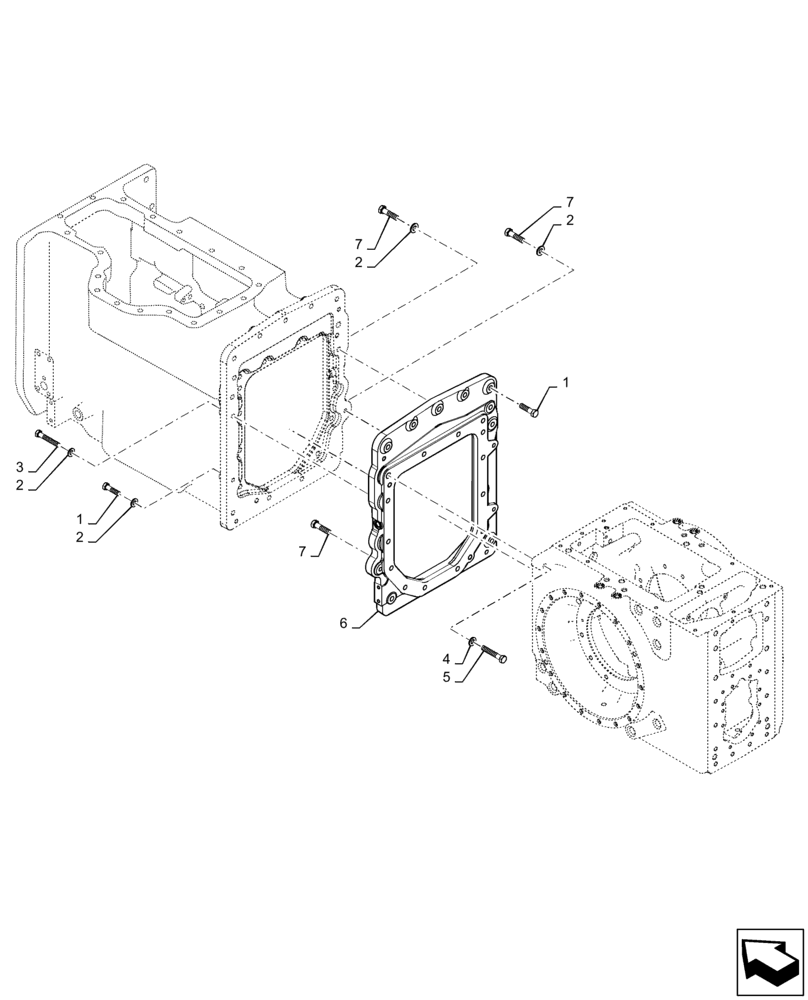

Запчасти Case IH MAGNUM 310 (21.504.AQ[01]) - VAR - 429334, 429335 - TRANSMISSION - CVT - STANDARD FINAL DRIVE ADAPTER PLATE - BSN ZFRF03732 (21) - TRANSMISSION

1

47631212

12 PT SCREW,M16 x 2 x 70mm, Cl 12.9

10шт.

2

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

3

47631214

12 PT SCREW,M16 x 2 x 120mm, Cl 12.9

1шт.

4

896-12020

WASHER,22mm ID x 37mm OD x 4mm Thk

1шт.

5

87341998

BOLT,Hex, M20 x 130mm, Cl 10.9

1шт.

6

84522421

DRIVE PLATE

CVT Final Drive Adapter

1шт.

7

47631211

12 PT SCREW,M16 x 2 x 60mm, Cl 12.9

12шт.
