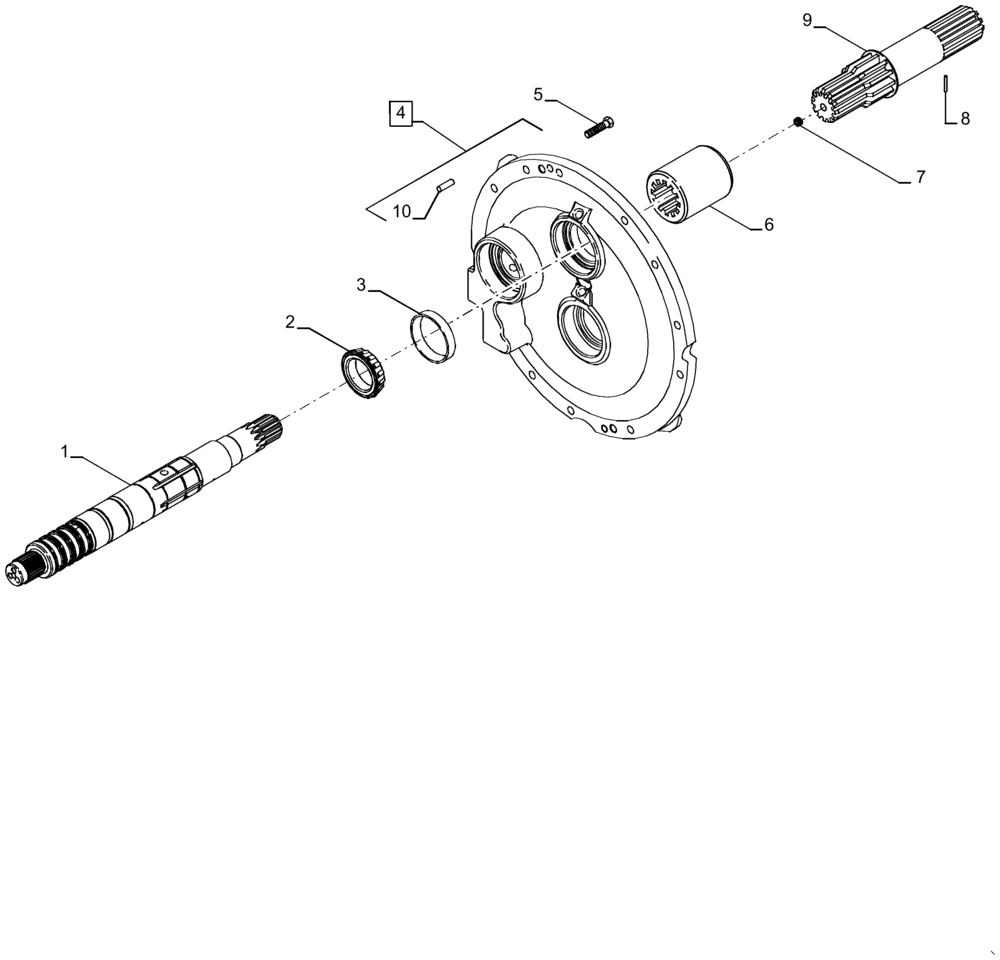

Запчасти Case IH MAGNUM 310 (21.113.AT[01]) - STANDARD INPUT SHAFT (21) - TRANSMISSION

1

87434648

SHAFT ASSY.

Input

1шт.

2

627639R1

BEARING ASSY,50.01mm ID x 20.64mm W

1шт.

3

111129H1

BEARING CUP

1шт.

4

258470A2

SUPPORT

Incl 10

1шт.

5

628-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

11шт.

6

226637A1

SPLINED COUPLING

Speed Input

1шт.

7

284151A1

SET SCREW,M10 x 1.5 x 10mm

M10 x 10

1шт.

8

38-3605

PIN,3/32" x 5/16", Coiled

1шт.

9

282726A1

SHAFT

Drop Box Output

1шт.

10

87520605

EXPANSION PLUG,12mm

8шт.
