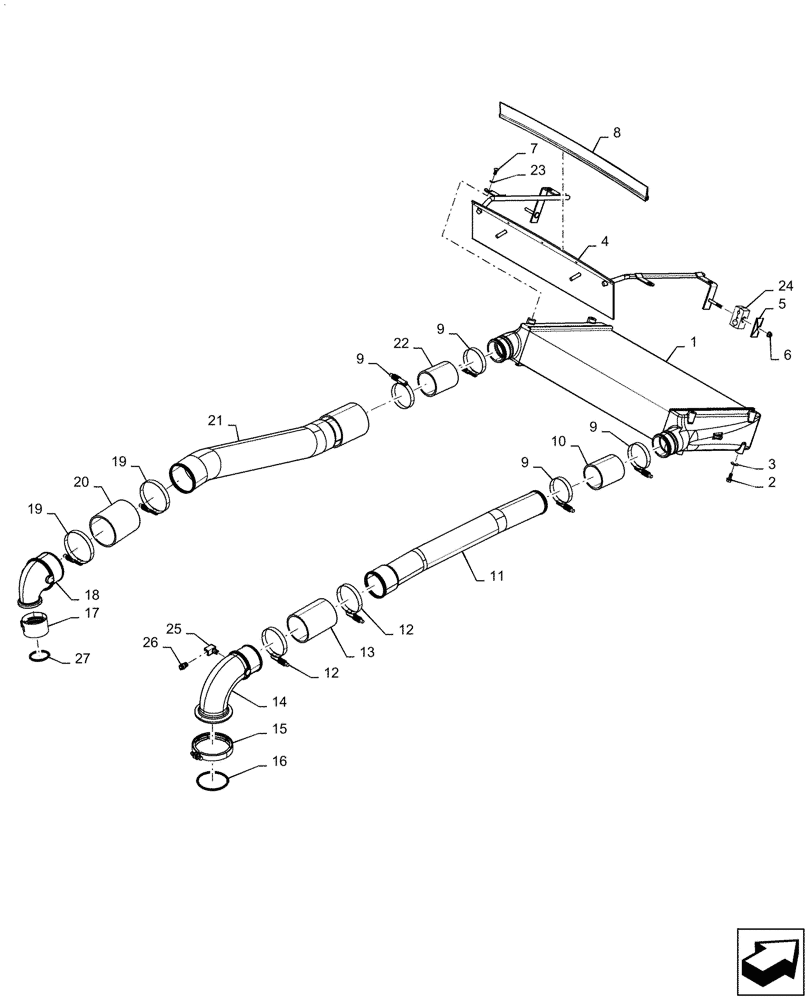

Запчасти Case IH MAGNUM 310 (10.310.AA[01]) - AFTERCOOLER BSN ZGRF02074 (10) - ENGINE

1

47449415

INTERCOOLER

110D, CIH

1шт.

2

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

4шт.

3

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

3шт.

4

84562894

PLATE

CAC Support

1шт.

5

1347127C1

PLATE

Tube Clamp

1шт.

6

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

7

87360874

HEX SOC SCREW,M8 x 1.25 x 16mm, Cl 8.8

4шт.

8

84267360

SEALING STRIP,646mm L

Hood Flap

1шт.

9

L115549

CLAMP,69.85mm - 92.08mm

70mm Min 92mm Max Constant torque

4шт.

10

84174188

INTAKE AIR HOSE

Cold Side

1шт.

11

47512592

TUBE

Air Intake, CAC To Intake

1шт.

12

L124635

HOSE CLAMP

95mm Min 118mm Max Constant Torque

2шт.

13

84174189

INTAKE AIR HOSE

Cold Side

1шт.

14

47607764

ELBOW

Air Intake Connection

1шт.

15

87304529

SPECIAL CLAMP,125mm - 129mm

Hose, 127mm V-Band

1шт.

16

238-6240

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

1шт.

17

J069053

CLAMP,66.54mm ID

Turbo Outlet U-Band

1шт.

18

84561844

ELBOW

Turbo

1шт.

19

L127771

CLAMP,107.95mm - 130.18mm

2шт.

20

84420012

INTAKE AIR HOSE

Hot Side

2шт.

21

47592721

TUBE

Turbo To CAC

1шт.

22

84174187

INTAKE AIR HOSE

Hot Side

1шт.

23

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

24

255212A1

CLAMP

Clamp, Tube Hyd

1шт.

25

217-1015

ELBOW,1/4" - 18 Female x 1/4" - 18 Male

1шт.

26

84140033

HYD CONNECTOR

Air Push In

1шт.

27

J883284

O-RING,0.07" Thk x 2.364" ID, -36

1шт.
