Запчасти Case IH MAGNUM 310 (10.254.AI[02]) - EXHAUST SYSTEM - TIER 4B (10) - ENGINE

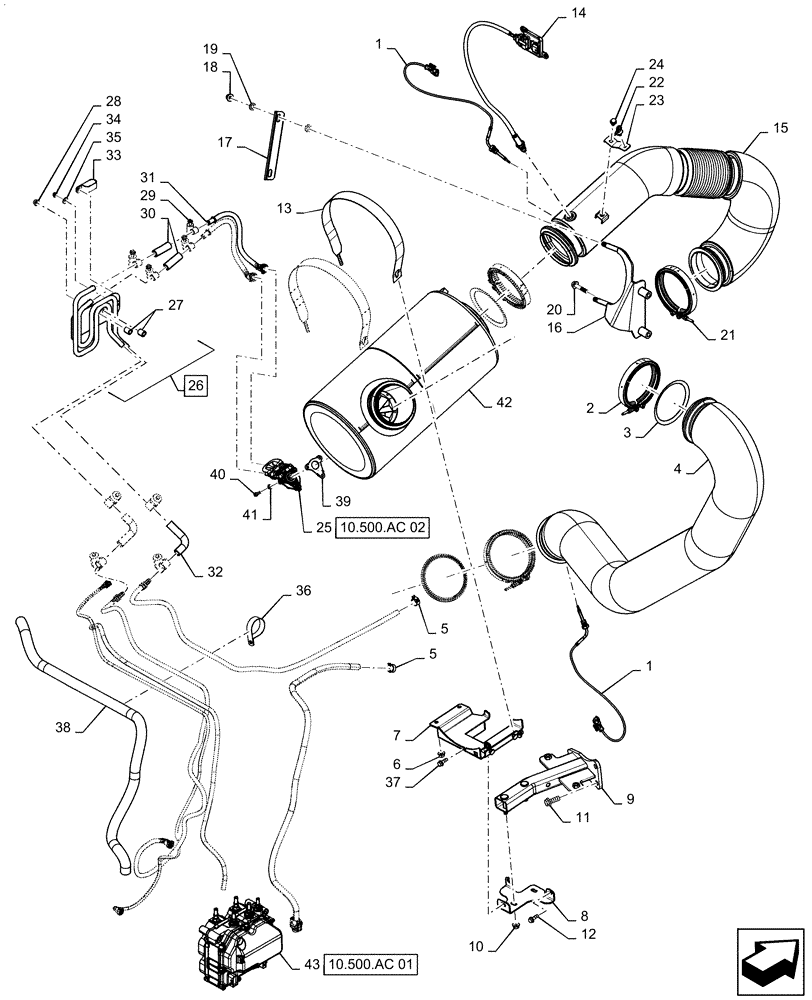

Схема запчастей Case IH MAGNUM 310 - (10.254.AI[02]) - EXHAUST SYSTEM - TIER 4B (10) - ENGINE
10.500.ac 02
28
3
7
1
43
35
12
20
19
41
24
40
36
33
4
15
31
39
26
22
23
21
11
5
32
5
14
2
38
8
27
18
25
37
29
13
9
34
6
1
10
16
30
42
17
10.500.ac 01

Артикул

Название

Примечание

Количество

1

47478880

TEMPERATURE SENDER,50mm, Closed

Temperature

2шт.

2

47368239

CLAMP

4.5, Marmon

3шт.

3

47368248

GASKET,1.3mm Thk

4.5 Exhaust

3шт.

4

47444997

EXHAUST SYSTEM PIPE

SCR To Doc

1шт.

5

1348264C1

HOSE CLAMP

Spring Steel

2шт.

6

825-5148

SERRATED NUT,M8, Flg Ser

2шт.

7

47536412

SUPPORT

Saddle Plate

1шт.

8

47541285

SUPPORT

Saddle Mount

1шт.

9

47536419

SUPPORT

Doc Mounting

1шт.

10

87016577

NUT,M10

Hex Flange M10 10 PHC

2шт.

11

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

3шт.

12

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

3шт.

13

84561774

STRAP

Doc Mount

2шт.

14

84422747

SENSOR,NOx, 12V, 5 Pin, 615mm L

NOX, 12v Gen 2.5, BC4 Cap, 615mm

1шт.

15

47557449

TUBE

Exhaust Tube

1шт.

16

47505708

SUPPORT

SCR, With Flex

1шт.

17

47416078

CLAMP

Exhaust Tube

1шт.

18

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

2шт.

19

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

20

844-10040

BOLT,Hvy Hex, M10 x 40mm, Cl 8.8

2шт.

21

47423212

CLAMP

Turbo, Band, C9, C11, C13SST

1шт.

22

82033028

CABLE TIE,170mm L

With Fir Tree, 170mm

2шт.

23

47564160

BRACKET

Flex Tube, Sensor Support

1шт.

24

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

25

47506948

INJECTOR, EMISSIONS

DM 2.5, 12KG/HR, Incl 44 - 46

1шт.

25

47506948R

REMAN-INJEC EMISSION

DM 2.5, 12KG/HR

1шт.

25

47506948C

CORE-INJEC EMISSION

Return Number

1шт.

25

47506932

INJECTOR, EMISSIONS

DM 2.5, 7.2KG/HR, Incl 44 - 46

1шт.

25

47506932R

REMAN-INJEC EMISSION

DM 2.5, 7.2KG/HR

1шт.

25

47506932C

CORE-INJEC EMISSION

Return Number

1шт.

26

47596196

TUBE

SCR Hose Bundle; Incl 27

1шт.

27

567987R1

SPACER,10.3mm ID x 15.88mm OD x 17.5mm L

1шт.

28

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

2шт.

29

87443510

HOSE CLAMP,18.4mm Static ID x 15mm W

8шт.

30

47595199

FUEL HOSE

12.7mm ID x 19.8mm OD x 58mm Length

2шт.

31

47587353

HOSE

Doser

2шт.

32

47595201

ELBOW

Hose

2шт.

33

485093C1

CLAMP,13/16" Insul, 13/32" Bolt

Rubber Coated

1шт.

34

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

1шт.

35

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

1шт.

36

87552805

CLAMP,50.8mm, Coat, 10.3mm Bolt Hole, P Type

Closed 50.8mm Insul 3/8 Bolt

1шт.

37

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

1шт.

38

47594437

HOSE KIT

Assy, DEF/ADBLUE, SM To DM

1шт.

39

47605145

GASKET,2.4mm Thk

Injector

1шт.

40

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

3шт.

41

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

42

47595947

CATALYST

6.4L, Muffler Reference Code R-9.50-93.6-130-19-19

1шт.

43

47565939

ECU

DENOX 2.2 Supply Module 12v High Flow

1шт.

43

47565939R

REMAN ELECT CONTROL

DENOX 2.2 Supply Module 12v High Flow

1шт.

43

47565939C

CORE-ELECTRONIC CONT

Return Number

1шт.

44

47364264

REPAIR KIT

Coolant Connector, Emissions Injector, Not Illustrated

1шт.

45

47364085

REPAIR KIT

Protective Cap, Emissions Injector, Not Illustrated

1шт.

46

47364140

GASKET,30mm OD, Rubber, Black

Emissions Injector, Not Illustrated

1шт.

Выбрано товаров: 53
