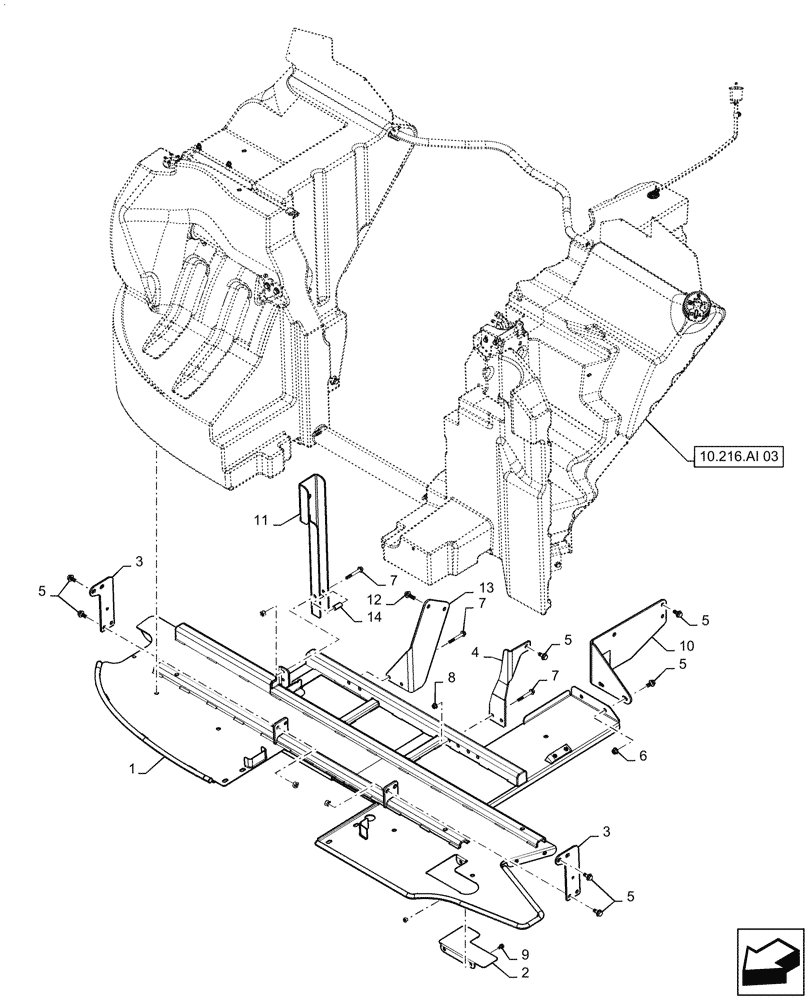

Запчасти Case IH MAGNUM 310 (10.216.AI[01]) - FUEL TANK, SUPPORT PST (10) - ENGINE

1

47709731

SUPPORT

Trac Fuel Tanks

1шт.

2

47373098

COVER

Urea Sensor

1шт.

3

84531940

SUPPORT

Front To Dropbox

2шт.

4

84181556

STRAP

LH Rear PS

1шт.

5

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

13шт.

6

825-2412

FLANGE NUT,M12 x 1.75, Flg, Cl 8

2шт.

7

857-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

6шт.

8

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

4шт.

9

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

3шт.

10

84565365

BRACKET

LH Rear Axle Trac

1шт.

11

47488740

CHANNEL

RH Fuel Tank Support

1шт.

12

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

2шт.

13

84181555

BRACKET, SUPPORTING

Fuel

1шт.

14

47825109

SPACER

2шт.
