Запчасти Case IH MAGNUM 310 (90.116.AC[05]) - WIDE REAR FENDERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

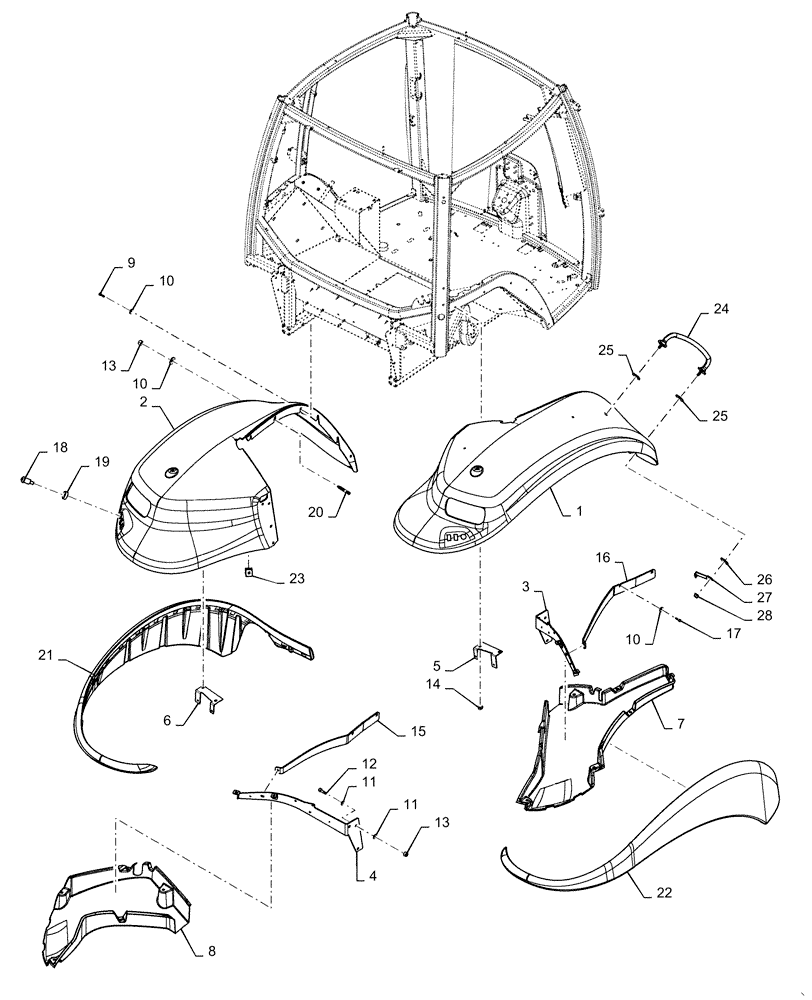

Схема запчастей Case IH MAGNUM 310 - (90.116.AC[05]) - WIDE REAR FENDERS (90) - PLATFORM, CAB, BODYWORK AND DECALS
19
28
15
10
27
17
12
11
2
6
5
25
10
14
7
22
11
20
4
24
25
26
23
13
18
10
13
21
16
8
3
9
1

Артикул

Название

Примечание

Количество

1

47606068

FENDER

RH, Wide W/ Grab, Track

1шт.

2

47713741

FENDER

LH, Wide, Track

1шт.

3

47413581

SUPPORT

RH Wide Fender

1шт.

4

47413582

SUPPORT

LH Wide Fender

1шт.

5

87739798

BRACKET

RH Fender Light

1шт.

6

87739799

BRACKET

LH Fender Light

1шт.

7

87710353

COVER

Cover, RH Fender Underside

1шт.

8

87703709

COVER

Cover, LH Fender Underside

1шт.

9

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

10шт.

10

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

24шт.

11

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

14шт.

12

614-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

6шт.

13

832-10408

NUT,M8 x 1.25, Cl 8.8

20шт.

14

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

10шт.

15

87702627

BRACKET

LH Fender

1шт.

16

87710391

BRACKET

RH Fender

1шт.

17

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

18

82025543

PTO SWITCH

PTO Switch

2шт.

19

82013932

GUARD

PTO Switch

2шт.

20

87477361

STUD

M8

2шт.

21

47698977

EXTENSION

LH Fender Tracks

1шт.

22

47606086

EXTENSION

RH Fender Tracks

1шт.

23

87331566

SPRING CLIP

Fender Extension

32шт.

24

47436677

HANDRAIL

Wide Fender

1шт.

25

47437064

RUBBER WASHER

Pad, Fender Handrail Mounting

4шт.

26

84205720

PLATE

Tank Joining

2шт.

27

47457533

SUPPORT

Wide Fender Handle

1шт.

28

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

2шт.

Выбрано товаров: 28
