Запчасти Case IH MAGNUM 310 (55.301.AU[01]) - FUEL TANK WIRE HARNESS, ALTERNATOR POS BATTERY CABLE (55) - ELECTRICAL SYSTEMS

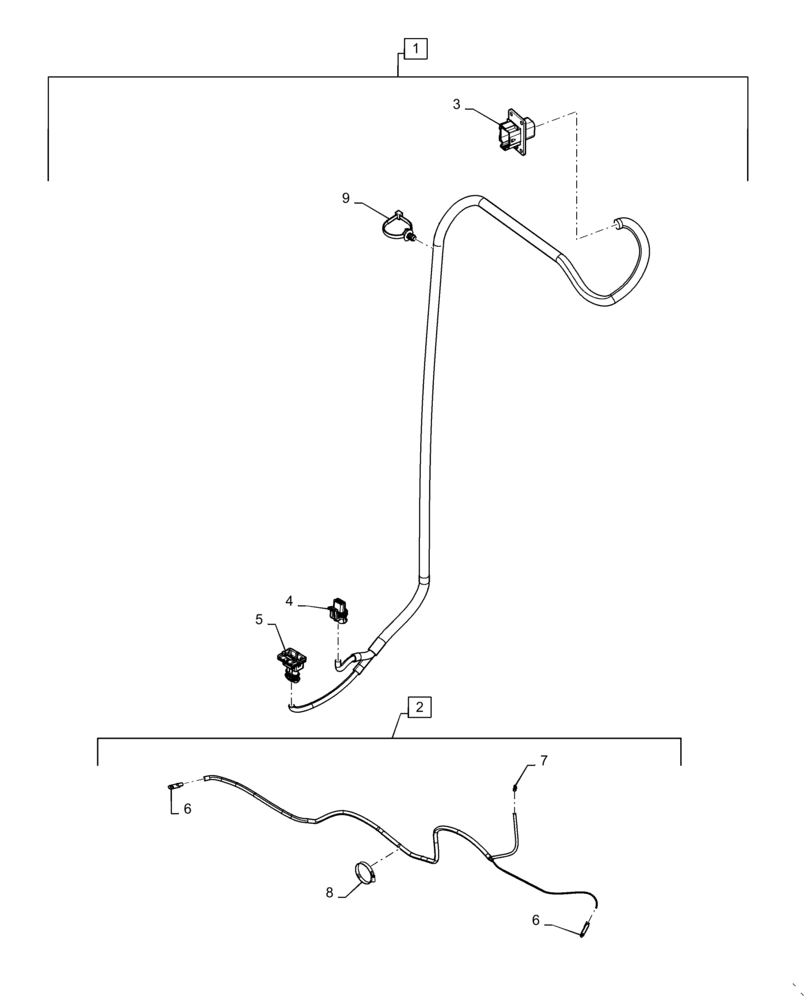

Схема запчастей Case IH MAGNUM 310 - (55.301.AU[01]) - FUEL TANK WIRE HARNESS, ALTERNATOR POS BATTERY CABLE (55) - ELECTRICAL SYSTEMS
7
6
2
4
5
3
9
8
6
1

Артикул

Название

Примечание

Количество

1

47613001

WIRE HARNESS

Fuel Tank, Incl 3 - 5

1шт.

2

47525452

ELECTRIC CABLE

Grid Heater & Alternator Positive, Incl 6 - 7

1шт.

3

84122361

ELEC CONNECTOR

Engine Harness

1шт.

4

87679438

WIRE CONNECTOR,Female

Fuel Pump

1шт.

5

87709663

ELEC CONNECTOR,Female, 3 Cavities

WIF Sensor

1шт.

6

84207853

ELEC CONNECTOR,25.00 - 35.00mm

M8 Ring Terminal, Battery Positive, Alternator Positive

1шт.

7

47593681

TERMINAL,M6, Tin, 5.00 - 15.00mm

M6 Ring Terminal, Grid Heater Relay

1шт.

8

L11541

CABLE TIE,203.2mm L, Nylon

2шт.

9

84292754

CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL

3шт.

Выбрано товаров: 9
