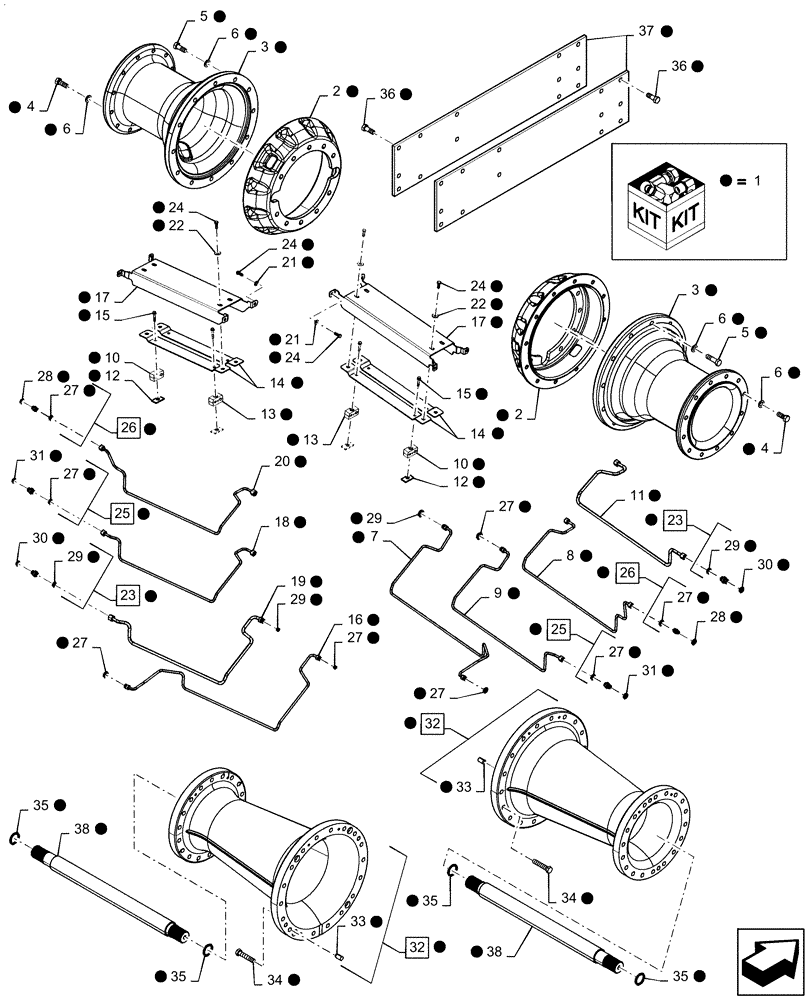

Запчасти Case IH MAGNUM 310 (44.511.AD[03]) - KIT, SPACER, 132 INCH TREAD (44) - WHEELS

1

47912988

KIT

132 Inch Tread, Incl 2 - 38

1шт.

2

47623250

SPACER

Adapter, Front Wheel, 26 Inch

2шт.

3

47623252

SPACER

Front Wheel, 26 Inch

2шт.

4

11383631

BOLT,Hex, M20 x 1.5 x 50, 10.9, Full Thd

24шт.

5

827-20070

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

24шт.

6

14497131

WASHER,21mm ID x 37mm OD x 3mm Thk

48шт.

7

47911976

HYD TUBE

RH Track Tension, 132 Inch Tread

1шт.

8

47911978

TUBE

RH Air Supply, 132 Inch Tread

1шт.

9

47911981

HYD TUBE

RH Lube Supply, 132 Inch Tread

1шт.

10

87105732

CLAMP

2 Hole, 12.7-9.52 mm Dia Ribbed

4шт.

11

47911988

HYD TUBE

RH Lube Return, 132 Inch Tread

1шт.

12

384871A1

PLATE

8шт.

13

86988833

CLAMP,9.52mm x 9.52mm, Dual Clamp Block

2 Hole, 9.52-9.52 mm Dia Ribbed

4шт.

14

47912057

BRACKET

Tubing Support, 132 Inch Tread

4шт.

15

844-8045

BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

8шт.

16

47911975

HYD TUBE

LH Track Tension, 132 Inch Tread

1шт.

17

47911989

SHIELD

Axle Lube Tubes, 132 Inch Tread

2шт.

18

47911979

HYD TUBE

LH Lube Supply, 132 Inch Tread

1шт.

19

47911985

HYD TUBE

LH Lube Return, 132 Inch Tread

1шт.

20

47911977

TUBE

LH Air Supply, 132 Inch Tread

1шт.

21

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

8шт.

22

895-25010

WASHER,11mm ID x 30mm OD x 2.5mm Thk

8шт.

23

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl 29, 30

2шт.

24

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

16шт.

25

700-106

HYD CONNECTOR,11/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 27, 31

2шт.

26

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 27, 28

2шт.

27

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

8шт.

28

86639042

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

29

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

30

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

31

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

32

47884288

SPACER

132 Inch Tread, Incl 33

2шт.

33

837-20040

DOWEL,M20 x 40

4шт.

34

47770123

BOLT,Hex, M20 x 100mm, Cl 10.9, Full Thd

36шт.

35

84557164

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

4шт.

36

11124831

BOLT,Hex, M20 x 55, 10.9, Full Thd

26шт.

37

47427367

REINFORCEMENT

Frame

2шт.

38

47884347

SHAFT

Diff Extension, 132 Inch Tread

2шт.
