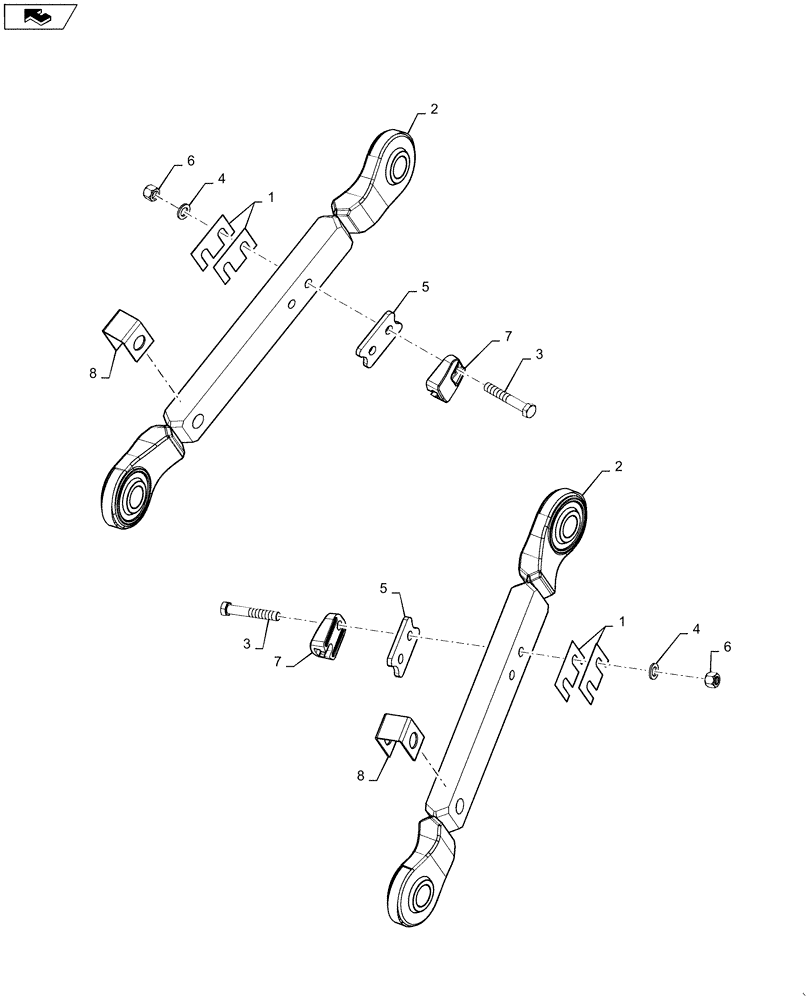

Запчасти Case IH MAGNUM 310 (37.120.AO[05]) - VAR - 429406, 429407, 429405 - REAR, HITCH, LOWER LINK - CAT IV (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

189946A1

SHIM,76mm OD x 1.03mm Thk

Cam Bumper

4шт.

2

47395527

LIFT LINK

Cat 4 Ball End

2шт.

3

827-20130

BOLT,Hex, M20 x 2.5 x 130mm, Cl 10.9

4шт.

4

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

5

84523339

SPACER

Cam Bumper

2шт.

6

832-10420

NUT,M20 x 2.5, Cl 8

4шт.

7

301248A2

BUMPER

Cam Sway Limiter

2шт.

8

293002A1

SPACER

U Shape Claw Link

2шт.
