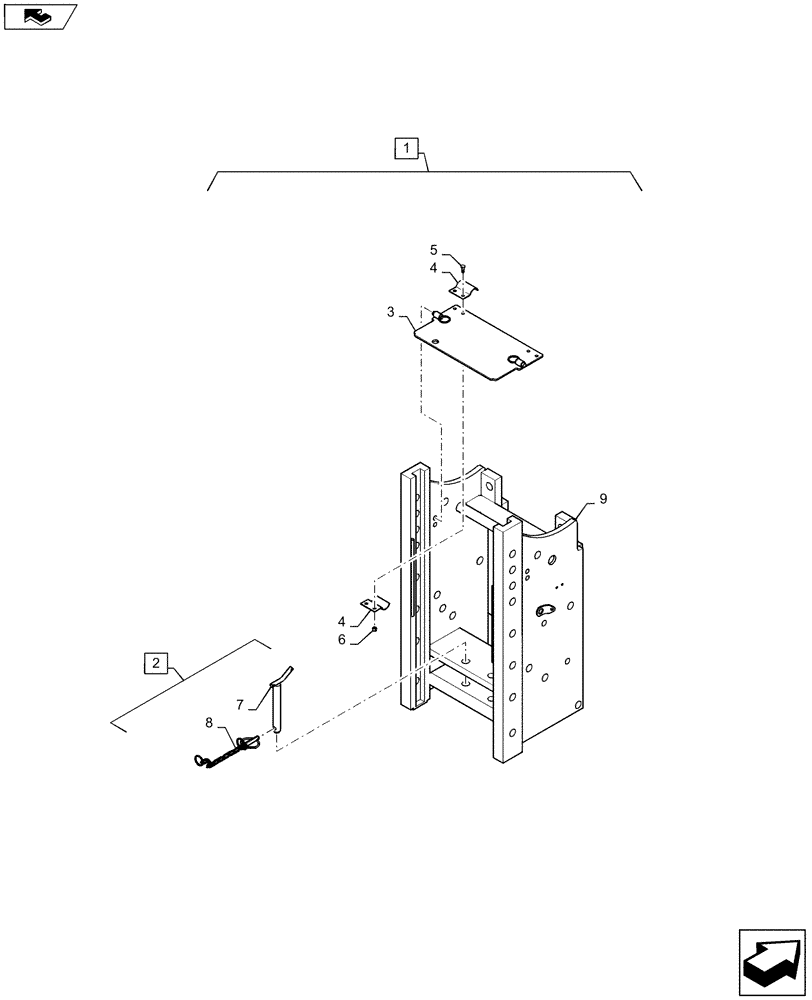

Запчасти Case IH MAGNUM 310 (37.120.AF[04]) - FRAME, TRAILER HITCH, GERMANY AND ITALY (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

87601701

FRAME ASSY

Trailer Hitch, Auto, Germany and Italy, Incl 2 - 9

1шт.

2

449061A1

PIN ASSY.

Incl 7, 8

2шт.

3

449062A1

GUARD ASSY.

Movable PTO

1шт.

4

449066A1

PLATE

PTO Guard Holder

4шт.

5

615-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

4шт.

6

832-10406

NUT,M6 x 1, Cl 8

4шт.

7

450465A1

PIN

Drawbar Retaining

2шт.

8

449060A1

PIN,19mm OD x 149mm L

Pin Retaining

2шт.

9

NSS

NOT SOLD SEPARAT

Frame Incl in 1

1шт.
