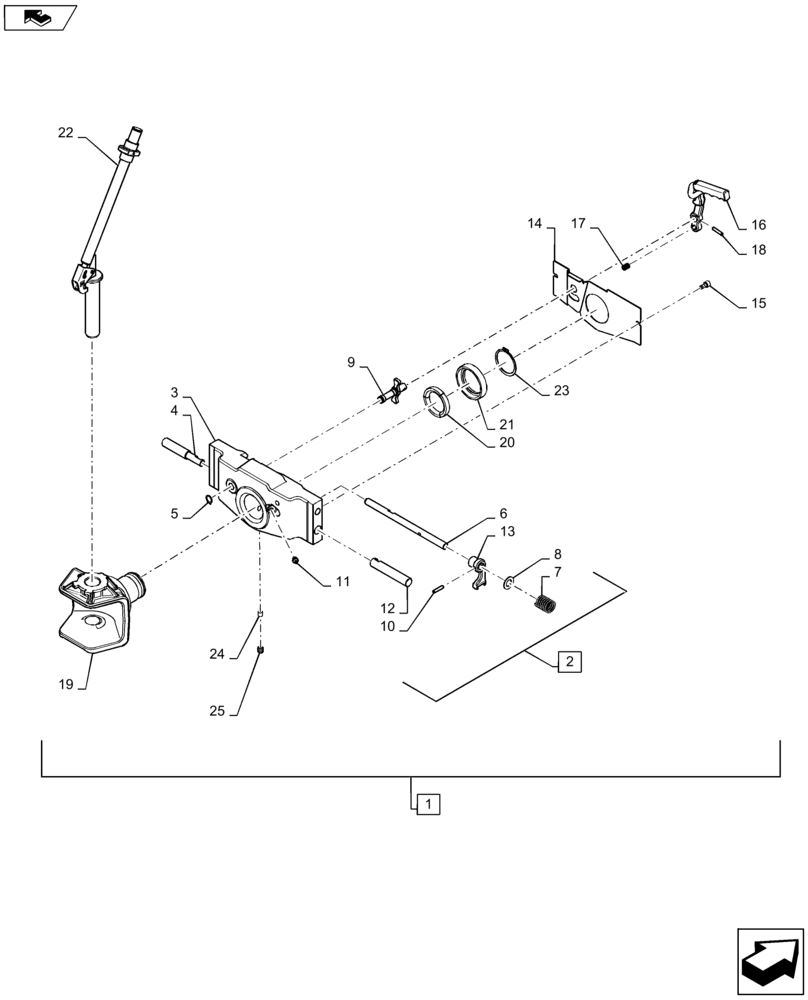

Запчасти Case IH MAGNUM 310 (37.100.AF[01]) - VAR - 429393 - TRAILER HITCH, MANUAL PIN, FRANCE ONLY (CBM) (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

86989557

CLEVIS

Incl 2 - 25

1шт.

2

450612A1

FRAME ASSY

Incl 3 - 13

1шт.

3

450613A1

FRAME

Slider Cat 3

1шт.

4

86984632

PIN

Lower

1шт.

5

800-1115

SNAP RING,M15, Ext

1шт.

6

86984635

PIN

Upper

1шт.

7

86984626

COMPRESSION SPRING

Latch Compression

1шт.

8

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

9

451837A1

PIN

Latch Pivot

1шт.

10

838-3630

PIN,M6 x 30, Coiled

1шт.

11

1974039C1

FITTING

Grease Zerk

1шт.

12

86984640

PIN

RH Latch Lower

1шт.

13

86984638

PLATE

Spring Guide

1шт.

14

86988189

PLATE

Slider Cover

1шт.

15

864-8016

HEX SOC SCREW,M8 x 16mm, Cl 8.8

2шт.

16

86984629

LEVER

Unlocking Slider

1шт.

17

86988211

SPRING

Slider Lever

1шт.

18

838-3630

PIN,M6 x 30, Coiled

1шт.

19

86989565

CLEVIS

EEC Manual

1шт.

20

86985916

COLLAR

Safety

1шт.

21

86988005

BUSHING

T - Hitch Retaining

1шт.

22

86989558

PIN ASSY.

Manual Clevis

1шт.

23

800-1160

SNAP RING,M60, External

1шт.

24

86990448

LINING

Clevis Retaining

1шт.

25

877-31212

SET SCREW,Hex Skt M12 x 12mm, Flat Pt

1шт.
