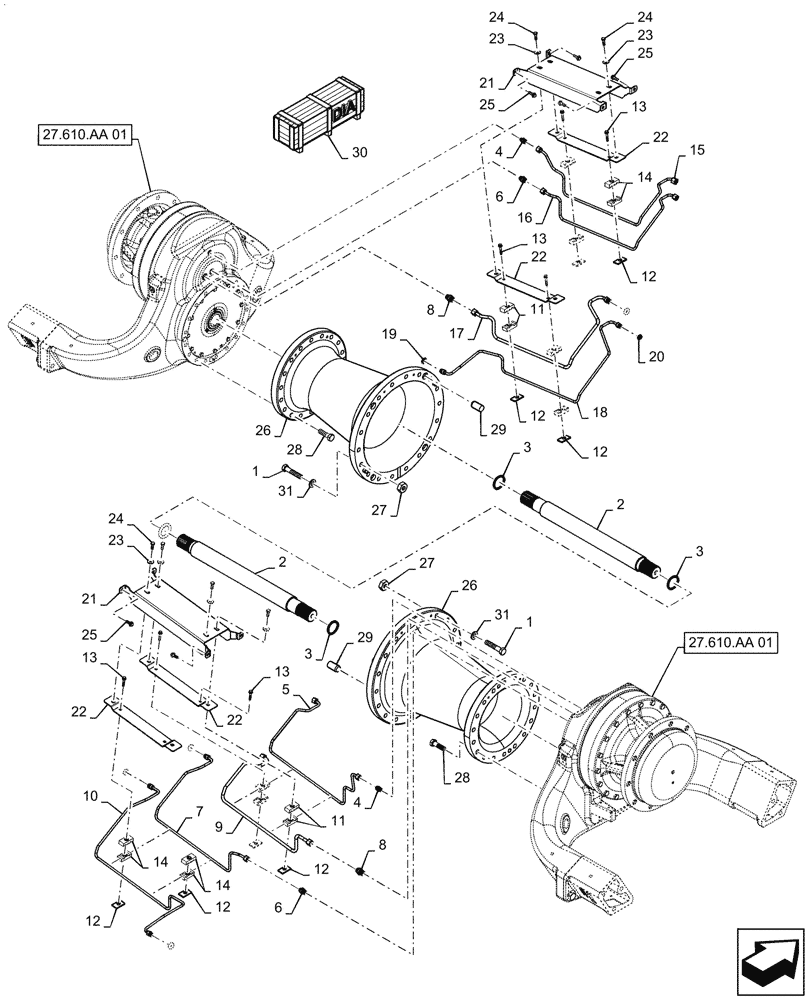

Запчасти Case IH MAGNUM 310 (27.610.AC[01]) - AXLE EXTENSION, UPBOX AXLES (27) - REAR AXLE SYSTEM

1

47770123

BOLT,Hex, M20 x 100mm, Cl 10.9, Full Thd

W/ 88" 152" Extension

36шт.

1

84569983

STUD

M20 x 220mm, W/ 76" - 80" Extension

28шт.

2

47523243

SHAFT

Diff. 152" Extension

2шт.

2

47491308

SHAFT

Diff. 144" Extension

2шт.

2

47491306

SHAFT

Diff. 136" Extension

2шт.

2

47687298

SHAFT

Diff. 120" Extension

2шт.

2

47497985

SHAFT

Diff. 88" Extension

2шт.

2

47491297

SHAFT

Diff. 80" Extension

2шт.

2

47491294

SHAFT

Diff. 76" Extension

2шт.

3

84557164

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

3.55mm X 56.7mm

4шт.

4

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

88" - 152" Tread

2шт.

4

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

70" - 80" Tread

2шт.

5

47633177

TUBE

152" RH Air Supply

1шт.

5

47633155

TUBE

144" RH Air Supply

1шт.

5

47631884

TUBE

136" RH Air Supply

1шт.

5

47699220

TUBE

120" RH Air Supply

1шт.

5

47619766

TUBE

88" RH Air Supply

1шт.

5

47625796

TUBE

80" RH Air Supply

1шт.

5

47625787

TUBE

76" RH Air Supply

1шт.

6

700-106

HYD CONNECTOR,11/16" - 16 Male ORFS x M18 x 1.5 Male ORB

88" - 152" Tread

2шт.

6

700-345

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M18 x 1.5 Male ORB

70" - 80" Tread

2шт.

7

47633182

TUBE

152" RH Supply Lube

1шт.

7

47633158

TUBE

144" RH Supply Lube

1шт.

7

47631887

TUBE

136" RH Supply Lube

1шт.

7

47699221

HYD TUBE

120" RH Supply Lube

1шт.

7

47619776

TUBE

88" RH Supply Lube

1шт.

7

47625798

TUBE

80" RH Supply Lube

1шт.

7

47625790

TUBE

76" RH Supply Lube

1шт.

8

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

88" - 152" Tread

2шт.

8

700-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

70" - 80" Tread

2шт.

9

47633185

TUBE

152" RH Return Lube

1шт.

9

47633162

TUBE

144" RH Return Lube

1шт.

9

47631891

TUBE

136" RH Return Lube

1шт.

9

47699222

HYD TUBE

120" RH Return Lube

1шт.

9

47619780

TUBE

88" RH Return Lube

1шт.

9

47625800

TUBE

80" RH Return Lube

1шт.

9

47625792

TUBE

76" RH Return Lube

1шт.

10

47633174

TUBE

152" RH Track Tension

1шт.

10

47633149

TUBE

144" RH Track Tension

1шт.

10

47631875

TUBE

136" RH Track Tension

1шт.

10

47699218

HYD TUBE

120" RH Track Tension

1шт.

10

47619756

TUBE

88" RH Track Tension

1шт.

10

47625794

TUBE

80" RH Track Tension

1шт.

10

47625784

TUBE

76" RH Track Tension

1шт.

11

87105732

CLAMP

2 Hole 12.7 - 9.52 mm

4шт.

12

384871A1

PLATE

Hose Clamp Weld

8шт.

13

844-8045

BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

8шт.

14

86988833

CLAMP,9.52mm x 9.52mm, Dual Clamp Block

2 Hole 9.52 - 9.52 mm

4шт.

15

47633175

TUBE

152" LH Air Supply

1шт.

15

47633151

TUBE

144" LH Air Supply

1шт.

15

47631882

TUBE

136" LH Air Supply

1шт.

15

47699215

TUBE

120" LH Air Supply

1шт.

15

47619761

TUBE

88" LH Air Supply

1шт.

15

47625795

TUBE

80" LH Air Supply

1шт.

15

47625786

TUBE

76" LH Air Supply

1шт.

16

47633180

TUBE

152" LH Supply Lube

1шт.

16

47633156

TUBE

144" LH Supply Lube

1шт.

16

47631885

TUBE

136" LH Supply Lube

1шт.

16

47699216

HYD TUBE

120" LH Supply Lube

1шт.

16

47619772

TUBE

88" LH Supply Lube

1шт.

16

47625797

TUBE

80" LH Supply Lube

1шт.

16

47625789

TUBE

76" LH Supply Lube

1шт.

17

47633184

TUBE

152" LH Return Lube

1шт.

17

47633160

TUBE

144" LH Return Lube

1шт.

17

47631888

TUBE

136" LH Return Lube

1шт.

17

47699217

HYD TUBE

120" LH Return Lube

1шт.

17

47619777

TUBE

88" LH Return Lube

1шт.

17

47625799

TUBE

80" LH Return Lube

1шт.

17

47625791

TUBE

76" LH Return Lube

1шт.

18

47633172

TUBE

152" LH Track Tension

1шт.

18

47633148

TUBE

144" LH Track Tension

1шт.

18

47631856

TUBE

136" LH Track Tension

1шт.

18

47699214

HYD TUBE

120" LH Track Tension

1шт.

18

47619746

TUBE

88" LH Track Tension

1шт.

18

47625793

TUBE

80" LH Track Tension

1шт.

18

47625785

TUBE

76" LH Track Tension

1шт.

19

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

20

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

21

47633187

SHIELD

152" Axle Lube Tubes

2шт.

21

47633164

SHIELD

144" Axle Lube Tubes

2шт.

21

47631895

SHIELD

136" Axle Lube Tubes

2шт.

21

47634741

SHIELD

120" Axle Lube Tubes

2шт.

21

47619783

SHIELD

88" Axle Lube Tubes

2шт.

22

47627530

BRACKET

Tubing Support

4шт.

23

895-25010

WASHER,11mm ID x 30mm OD x 2.5mm Thk

8шт.

24

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

8шт.

25

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

8шт.

26

47643949

SPACER

152" Tread, Incl 29

2шт.

26

47643948

SPACER

144" Tread, Incl 29

2шт.

26

47643947

SPACER

136" Tread, Incl 29

2шт.

26

47687291

SPACER

120" Tread, Incl 29

2шт.

26

47643815

SPACER

88" Tread, Incl 29

2шт.

26

47643814

SPACER

76" - 80" Tread, Incl 29

2шт.

Need Quantity of 4 For 80" Spacing

1шт.

26

47643813

SPACER

72" Tread, Incl 29

2шт.

27

87619751

NUT

W/ 76" - 80" Stud Extensions

28шт.

28

11125134

BOLT,Hex, M20 x 70mm, Cl 10.9

36шт.

29

837-20040

DOWEL,M20 x 40

4шт.

30

84567677

DIA KIT, TRACTOR

76" Conversion

1шт.

30

84567678

DIA KIT, TRACTOR

80" Conversion

1шт.

30

47617627

DIA KIT, TRACTOR

88" Conversion

1шт.

30

84567679

DIA KIT, TRACTOR

120" Conversion

1шт.

30

47685265

DIA KIT, TRACTOR

136" Conversion

1шт.

30

47685266

DIA KIT, TRACTOR

144" Conversion

1шт.

30

47685267

DIA KIT, TRACTOR

152" Conversion

1шт.

30

47524798

DIA KIT, TRACTOR

136" Conversion

1шт.

30

47450648

DIA KIT, TRACTOR

144" Conversion

1шт.

30

47524806

DIA KIT, TRACTOR

152" Conversion

1шт.

31

896-12020

WASHER,22mm ID x 37mm OD x 4mm Thk

36шт.
