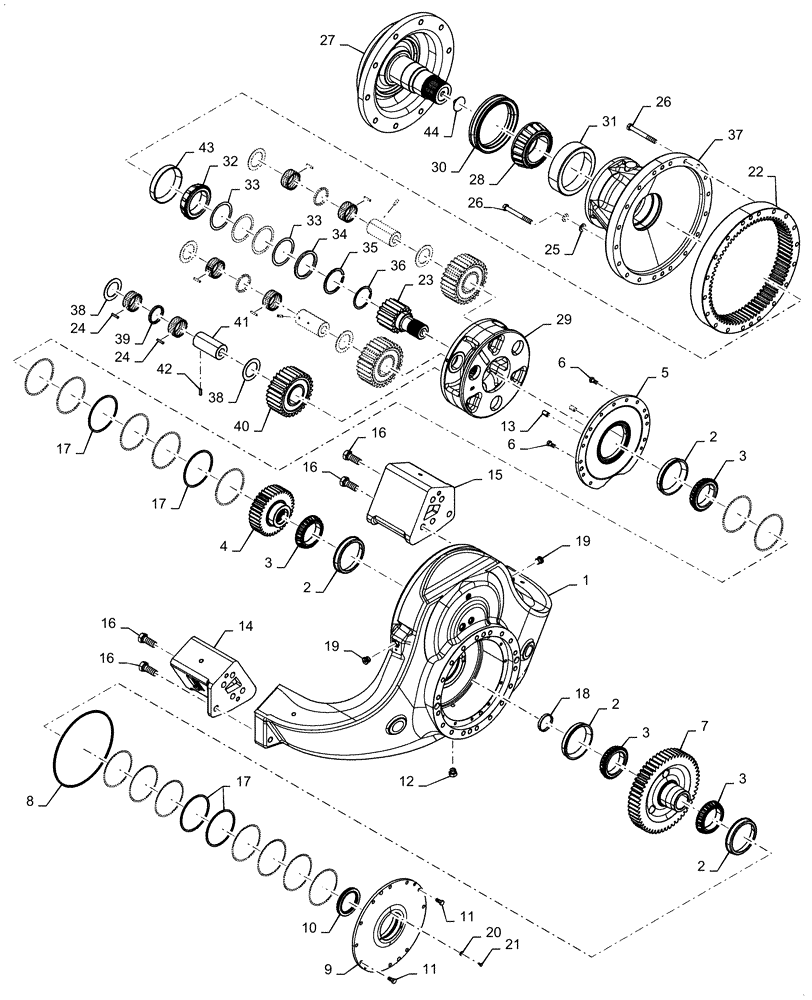

Запчасти Case IH MAGNUM 310 (27.610.AA[01]) - UPBOX , YOKE (27) - REAR AXLE SYSTEM

1

47618235

HOUSING

Assy, Axle Upbox and Hub, Incl 2 - 45

1шт.

2

284190A1

BEARING CUP,154.68mm OD x 24.51mm W

4шт.

3

299245A1

ROLLER BEARING,96.8505 mm ID x 28.882 mm

4шт.

4

84466170

GEAR

Upbox Output 37T

1шт.

5

84466163

CARRIER

Bearing Output

1шт.

6

11112434

BOLT,Hex, M12 x 30mm, Cl 10.9, Full Thd

13шт.

7

84466169

GEAR

Upbox Input 66T

1шт.

8

14469780

O-RING,0.139" Thk x 12.984" ID, -279, Cl 5, 75 Duro

1шт.

9

47497992

CARRIER

Bearing Input

1шт.

10

84466167

SEAL

Upbox Input

1шт.

11

47418292

BOLT,M12 x 1.75 x 25mm, Class 10.9

12шт.

12

87108781

PLUG

Magnetic M22

1шт.

13

837-16040

DOWEL,M16 x 40

2шт.

14

84536426

ARM

Yoke RH

1шт.

15

84536422

ARM

Yoke LH

1шт.

16

47418286

BOLT,M24 x 3 x 60mm, Class 10.9

10шт.

17

84599773

SHIM,149.33mm ID x 160mm OD x 0.05mm Thk

1шт.

17

84599774

SHIM,149.33mm ID x 160mm OD x 0.1mm Thk

1шт.

17

84599775

SHIM,149.33mm ID x 160mm OD x 0.2mm Thk

1шт.

17

84599777

SHIM,149.33mm ID x 160mm OD x 0.3mm Thk

1шт.

17

84599779

SHIM,149.33mm ID x 160mm OD x 0.4mm Thk

1шт.

17

84599780

SHIM,149.33mm ID x 160mm OD x 0.5mm Thk

1шт.

17

84599781

SHIM,149.33mm ID x 160mm OD x 1mm Thk

1шт.

17

84599782

SHIM,149.33mm ID x 160mm OD x 2mm Thk

1шт.

17

84599784

SHIM,149.33mm ID x 160mm OD x 3mm Thk

1шт.

18

86539183

CAP

1шт.

19

86598047

PLUG,Hex Soc, M22 x 1.5, ORB

2шт.

20

86592710

WASHER,6.4mm ID x 17mm OD x 3mm Thk

3шт.

21

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

3шт.

22

310695A1

RING GEAR,77T

77T

1шт.

23

360335A1

SHAFT

Sun Gear, 38T x 16T

1шт.

24

1349347C1

NEEDLE ROLLER,Needle, 6.65mm OD x 34.09mm L

198шт.

25

13550704

WASHER,16.4mm ID x 30mm OD x 3mm Thk

4шт.

26

47418295

BOLT,Hex, M16 x 2 x 140mm, Class 10.9

18шт.

27

47498009

SHAFT

Final Drive Output Flange 58T

1шт.

28

237700A1

TAPERED BEARING,114.3127 mm ID x 66.7766 mm

1шт.

29

47390479

PINION CARRIER

1шт.

30

369532A2

SEAL,194mm ID x 238.76mm OD x 47mm Thk

Axle Face

1шт.

31

237698A1

BEARING CUP,212.74mm OD x 53.87mm W

1шт.

32

64370H

BEARING, ROLLER,101.6mm ID x 36.12mm W

1шт.

33

84304127

SHIM,102mm ID x 122mm O x 0.076mm Thk

1шт.

33

84304128

SHIM,102mm ID x 122mm OD x 0.13mm Thk

1шт.

33

84304129

SHIM,102mm ID x 122mm OD x 0.25mm Thk

1шт.

33

84297753

SHIM,102mm ID x 122mm OD x 0.5mm Thk

1шт.

34

84543043

RING,102mm ID x 120mm OD x 7.55mm Thk

1шт.

35

84543180

SNAP RING,100mm, Internal

1шт.

36

101-11350

SNAP RING,#350, Ext

1шт.

37

84467434

HUB CARRIER

1шт.

38

84214687

WASHER,64.3mm ID x 95mm OD x 2.6mm Thk

6шт.

39

84214683

SPACER,66.5mm ID x 76.6mm OD x 7mm L

3шт.

40

310694A2

PLANETARY GEAR,29T

29T

3шт.

41

310697A3

SHAFT,31.75mm ID x 63.4mm OD x 130mm L

130mm L

3шт.

42

838-3826

PIN,M8 x 26, Coiled

3шт.

43

64371H0

BEARING ASSY,157.16mm OD x 26.19mm W

Cup

1шт.

44

1981270C1

INSERT

Axle Wear

1шт.

45

47538577

HOUSING

Upbox

1шт.
