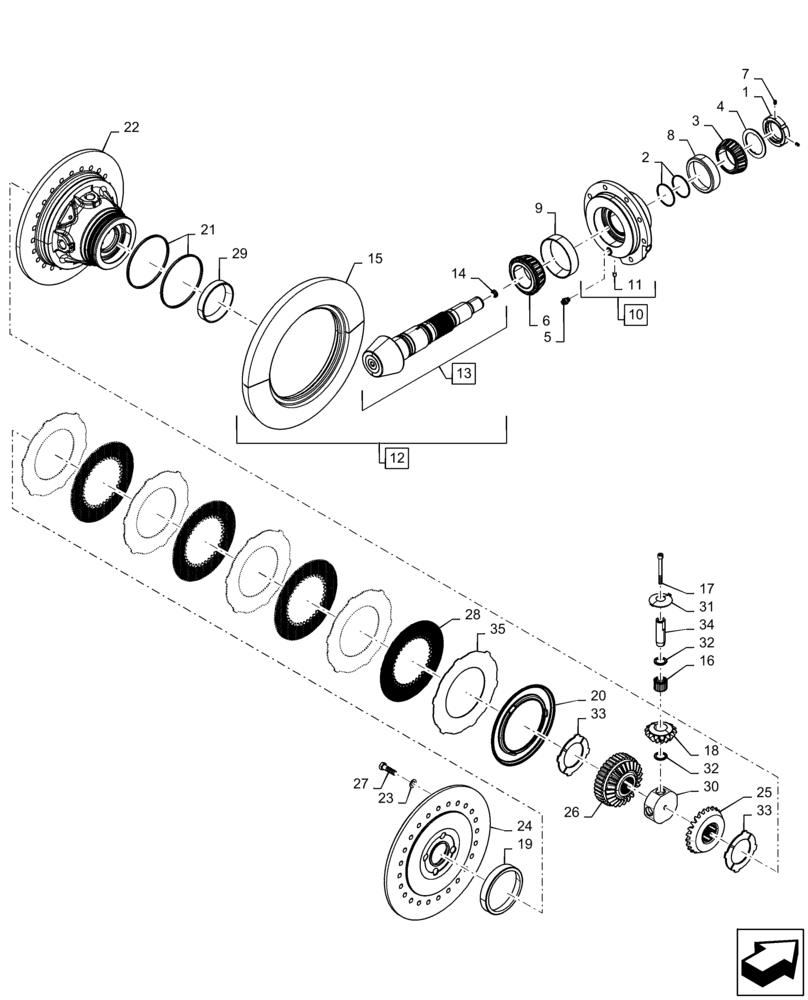

Запчасти Case IH MAGNUM 310 (27.106.AC[02]) - VAR - 429330 - POWERSHIFT - TRANSMISSION DIFFERENTIAL HD (27) - REAR AXLE SYSTEM

1

47458099

NUT,M75 x 1.5, 22mm H, HT

Bearing Setting

1шт.

2

87497396

SEALING RING,Locking, 79.61mm ID x 83.61mm OD x 2.87mm Thk

PTFE

2шт.

3

1997115C1

TAPERED BEARING,82.575 mm ID x 39.738 mm

1шт.

4

87629649

WASHER,83mm ID x 110mm OD x 4mm Thk

Anti-rotation

1шт.

5

47472894

FITTING,2mm Orifice, M14 ORB

2.0mm Orifice

1шт.

6

87444653

BEARING ASSY,35.72mm ID x 25.4mm W

1шт.

7

120242

SET SCREW,Hex Skt, M6 x 10mm, Cup Pt

2шт.

8

160301R1

BEARING ASSY,133.35mm OD x 32.55mm W

1шт.

9

87444654

BEARING CUP,150mm OD x 49mm W

1шт.

10

47528910

BEARING CARRIER

Pinion Bearing, Incl 11

1шт.

11

87520609

PLUG

Expansion

1шт.

12

47556759

SERVICE KIT

Bevel Gear Set, HDFD, 11/54, Incl 13, 15

1шт.

13

47531215

SHAFT

HDFD, 11T, Incl 14

1шт.

14

92825C1

CAP WASHER

1шт.

15

84466934

RING GEAR

HD

1шт.

16

1349347C1

NEEDLE ROLLER,Needle, 6.65mm OD x 34.09mm L

72шт.

17

2465667

HEX SOC SCREW,M12 x 110mm, Cl 12.9

4шт.

18

47467982

PINION

Differential Pinion, 14T

4шт.

19

253931A1

BEARING, CUP,179.99mm OD x 28.95mm W

1шт.

20

1997422C1

PISTON

Brake and Differential Lock

1шт.

21

148939C1

SEALING RING,OD 200.60 mm

Differential Lock Seal

2шт.

22

47547163

CARRIER

HDFD Differential

1шт.

23

47600651

WASHER,Flat, 17.00mm ID x 30.00mm OD x 2.00mm

24шт.

24

47547164

COVER

HD Differential

1шт.

25

47467984

GEAR

Differential Side, 24T

1шт.

26

47467983

GEAR

Differential Side, 24T, Locking

1шт.

27

48137515

LOCK BOLT,Hex, M16 x 55mm, Cl 10.9, Full Thd

24шт.

28

84225275

PLATE

Differential Lock Friction

4шт.

29

619697C1

BEARING CUP,149.98mm OD x 26.90mm W

1шт.

30

84569116

HUB

Differential Gear Pin

1шт.

31

87333856

THRUST WASHER,32.7mm ID x 80mm OD x 1.6mm Thk

Differential Pinion, Spherical

4шт.

32

87346098

THRUST BEARING,32.45mm ID x 44.8mm OD x 3.05mm Thk

8шт.

33

84321280

SHIM,95mm ID x 158mm OD x 4.91mm Thk

2шт.

34

47795777

PIN

HD Differential Spider Gear

4шт.

35

87745601

CLUTCH PLATE,193mm ID x 315.4mm OD x 2.74mm Thk

Differential Lock Separator, Self-centering

5шт.
