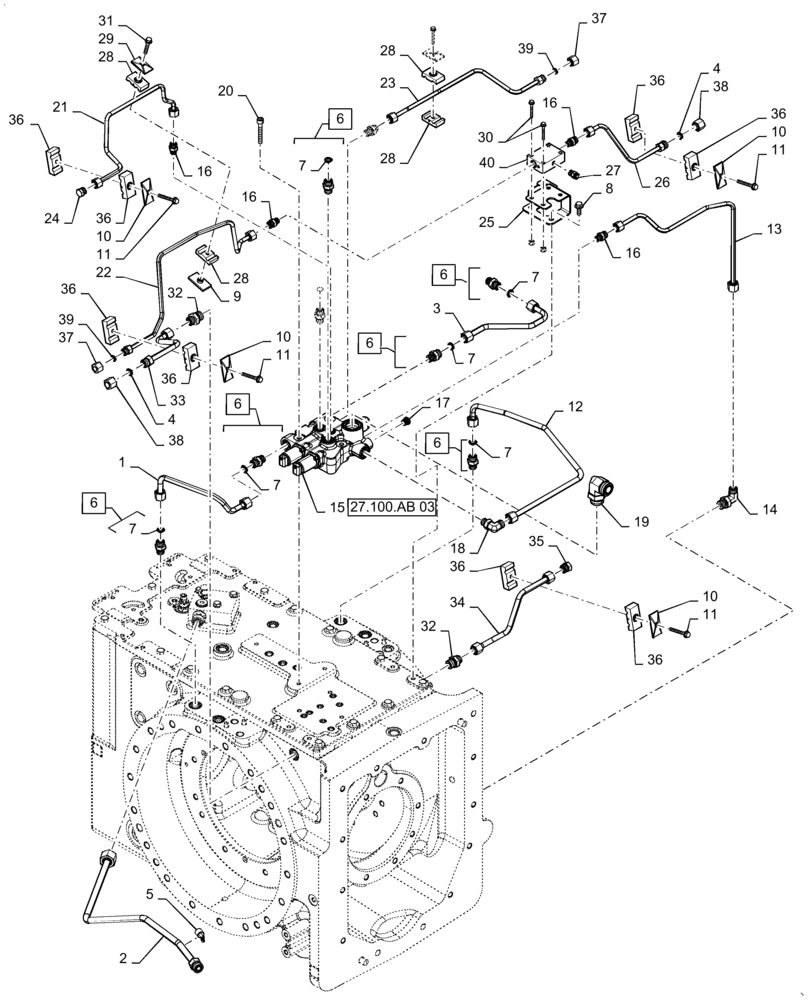

Запчасти Case IH MAGNUM 310 (27.100.AD[01]) - VAR - 429330 - HYDRAULIC LUBE LINES (27) - REAR AXLE SYSTEM

1

47426859

TUBE

RH Brake Lube HD

1шт.

2

47605370

TUBE

PTO Lube - PST

1шт.

3

47426858

TUBE

LH Brake Lube PST HD

1шт.

4

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

5

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

1шт.

6

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 7

5шт.

7

70923841

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

5шт.

8

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

2шт.

9

384871A1

PLATE

Hose Clamp Weld

1шт.

10

1347127C1

PLATE

Tube Clamp

4шт.

11

844-8060

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

4шт.

12

47628881

TUBE

Diff Lube

1шт.

13

84565898

TUBE

Pinion Lube

1шт.

14

700-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

1шт.

15

47494157

VALVE

Axle Lube

1шт.

16

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

4шт.

17

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

1шт.

18

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

1шт.

19

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

1шт.

20

864-10065

HEX SOC SCREW,M10 x 65mm, Cl 8.8

3шт.

21

47721365

HYD TUBE

Lube Supply RH

1шт.

22

47721363

TUBE

Air Supply RH

1шт.

23

47625968

TUBE

Lube Supply LH

1шт.

24

701-911

PLUG,Hex, 11/16" - 16 ORFS

1шт.

25

47600648

BRACKET

Air Supply Valve

1шт.

26

47625951

TUBE

Air Supply LH

1шт.

27

84140033

HYD CONNECTOR

Air Push In

1шт.

28

87000148

CLAMP

2 Hole 9.52-9.52mm

2шт.

29

384870A1

PLATE

Hose Clamp Cover

1шт.

30

844-6045

BOLT,Hvy Hex, M6 x 45mm, Cl 8.8

5шт.

31

844-8045

BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

1шт.

32

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

2шт.

33

47649214

TUBE

Lube Return RH

1шт.

34

47610894

TUBE

Lube Return LH

1шт.

35

9840573

PLUG,13/16"-16 ORFS

1шт.

36

86988833

CLAMP,9.52mm x 9.52mm, Dual Clamp Block

2 Hole 9.52-9.52mm

3шт.

37

701-900

CAP,11/16" - 16

2шт.

38

701-905

CAP,13/16" - 16

2шт.

39

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

40

47641789

MANIFOLD

Boost Air Check

1шт.
