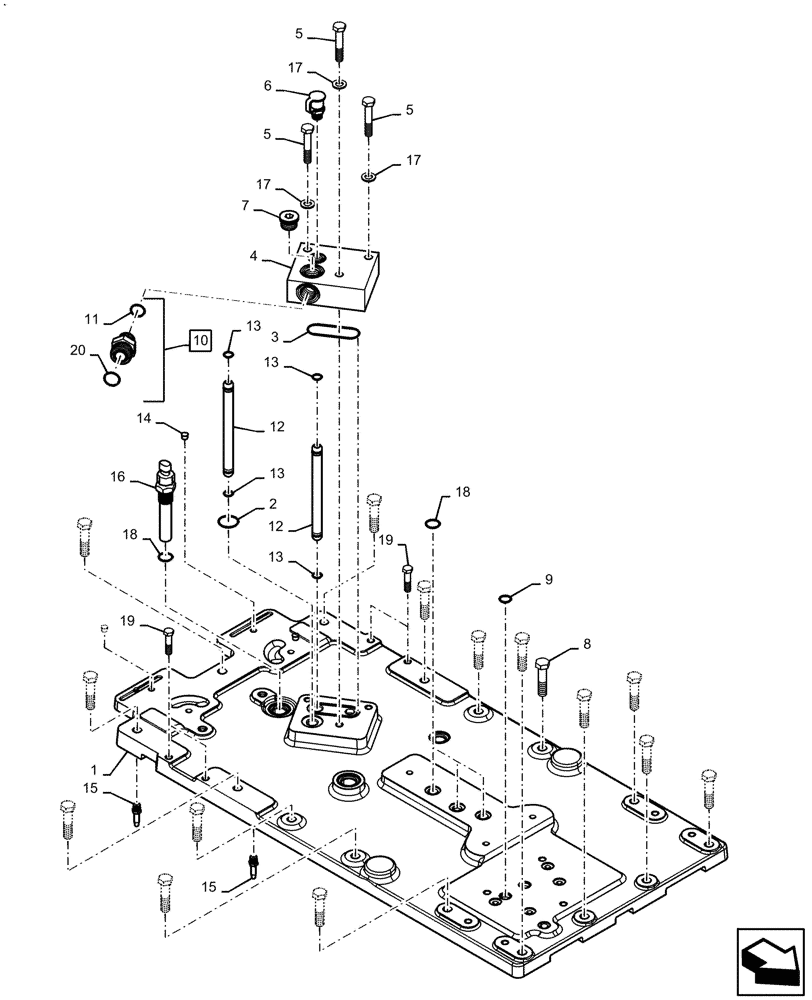

Запчасти Case IH MAGNUM 310 (27.100.AB[04]) - VAR - 429330, 429334 - REAR AXLE, HOUSING COVER HD & HD R/A (27) - REAR AXLE SYSTEM

1

47734987

COVER ASSY

HD Final Drive Housing W/ Tubes, Serial Range: -AJB0618918

1шт.

1

47919891

COVER ASSY

HD Final Drive Housing W/ Tubes, Start Serial: AJB0618919

1шт.

2

238-5120

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

1шт.

3

238-6139

O-RING,0.103" Thk x 2.175" ID, -139, Cl 6, 90 Duro

1шт.

4

84239750

HYDRAULIC MANIFOLD

PTO

1шт.

5

827-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 10.9

3шт.

6

178889A1

DIAGNOSTIC COUPLER

Diagnostic, Male, Size 6.3mm

1шт.

7

221579A1

PLUG,M22 x 1.5 ORB

1шт.

8

828-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

15шт.

9

238-5112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

7шт.

10

700-107

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M22 x 1.5 Male ORB

Incl 11, 20

1шт.

11

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

12

84466978

HYD TUBE

PTO Input, HYD Jumper

2шт.

13

238-6013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

4шт.

14

353-401

PLUG,Dome, .312" hole, Nylon

4шт.

15

217-120

ELBOW,1/4" Hose Barb x 1/8" Male NPTF

2шт.

16

84592313

SENSOR,M20 x 1.5 x 133.60mm L, 2 Term Pins

Speed

1шт.

17

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

18

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

EHR Manifold to Final Drive Cover; Speed Sensor

4шт.

19

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

4шт.

20

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.
