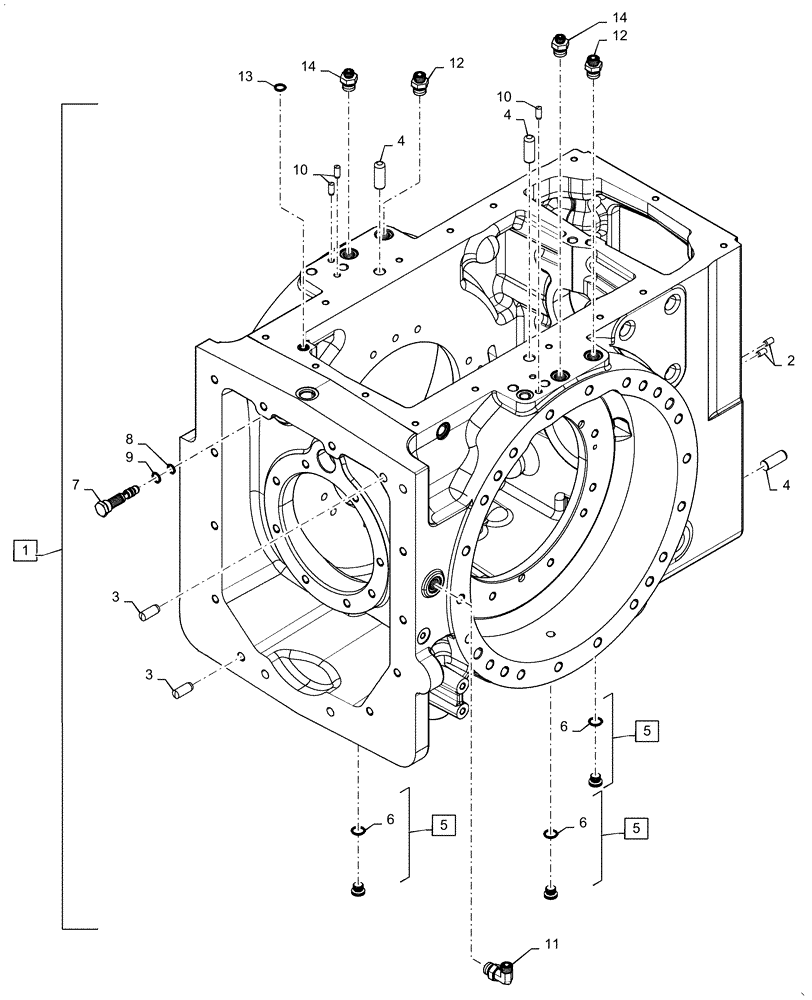

Запчасти Case IH MAGNUM 310 (27.100.AB[01]) - REAR AXLE HOUSING, POWERSHIFT (27) - REAR AXLE SYSTEM

1

47584892

HOUSING

PST HD Final Drive Incl 2 - 10

1шт.

2

837-10020

DOWEL,M10 x 20

2шт.

3

837-16040

DOWEL,M16 x 40

2шт.

4

37-11232

DOWEL,3/4" x 2"

4шт.

5

86598046

PLUG,M18 x 1.5 ORB

Incl 6

3шт.

6

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

7

411075A1

FITTING

Diff Lock Pressure

1шт.

8

238-6111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 6, 90 Duro

1шт.

9

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

1шт.

10

837-10024

DOWEL

10 x 24mm

4шт.

11

700-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Pinion Lube Tube

1шт.

12

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Diff Lube

2шт.

13

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

14

87349824

HYD CONNECTOR,10mm Tube OD, Male, 11/16"-16 ORFS x M22 x 1.5 ORB

Brake Hose

2шт.
