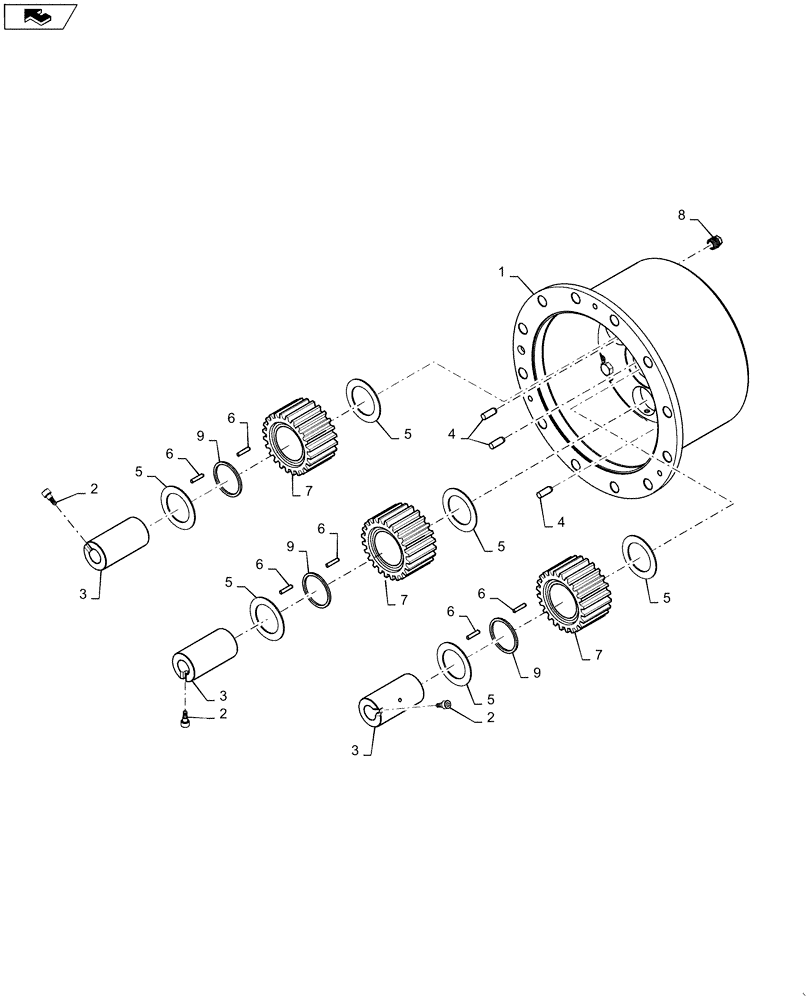

Запчасти Case IH MAGNUM 310 (25.102.AB[08]) - FRONT AXLE, CARRIER PLANETARY - CL 5 (25) - FRONT AXLE SYSTEM

1

47436493

PLANET CARRIER

Planetary, CL 5

1шт.

2

47632781

SCREW,Hex, M10 x 1.5

Planetary Pin

3шт.

3

47420686

SHAFT

Planetary Gear, CL 5 Axle

3шт.

4

837-12035

DOWEL,M12 x 35

3шт.

5

84214687

WASHER,64.3mm ID x 95mm OD x 2.6mm Thk

Steel, Service Only, Replaces Black Plastic Thrust Washer This Application

6шт.

6

131845A1

NEEDLE

Roller Bearing

198шт.

7

87582670

PLANETARY GEAR

3шт.

8

14326211

PLUG,M22 x 1.50, R50, ZND

1шт.

9

87581618

SPACER,66.5mm ID x 76.45mm OD x 4.1mm L

Planetary Needle Bearing

3шт.
