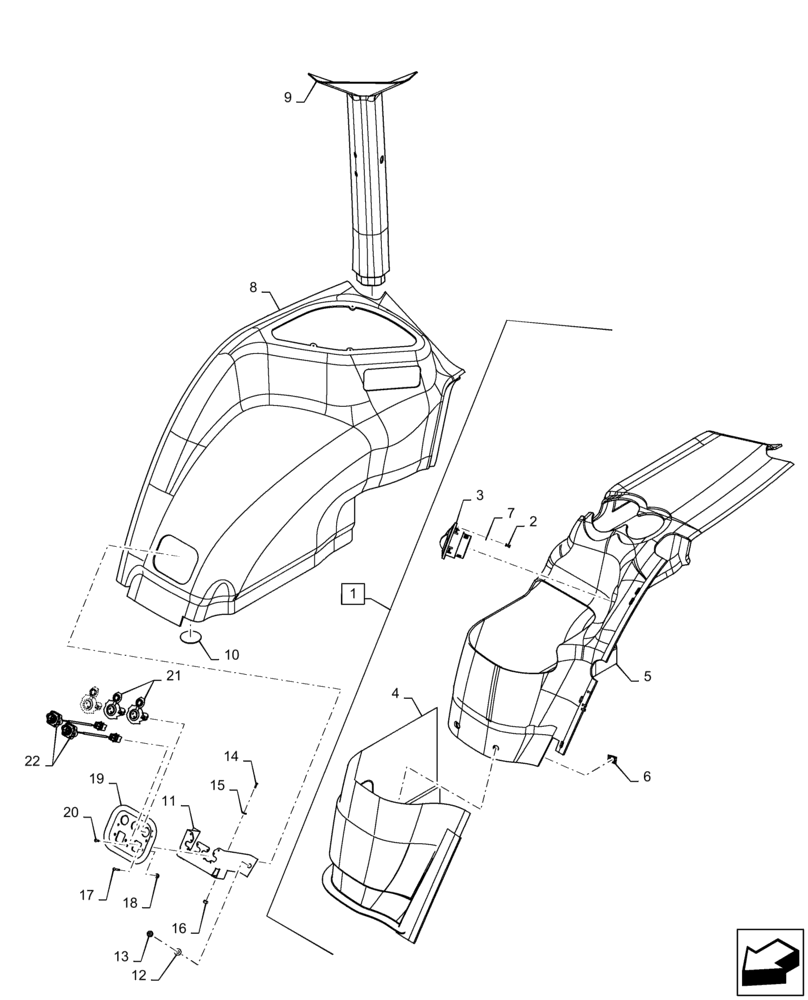

Запчасти Case IH MAGNUM 310 (90.160.BY[01]) - VAR - 420010, 420012, 429373, 449058, 449112 - CAB INTERIOR TRIM, LH & RH FENDER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87639244

TRIM PANEL

Assy, LH Fender; Incl 2 - 7

1шт.

2

151-537

RIVET,Pop, 1/8" x .650"

4шт.

3

363928A1

VENT

Global Black

1шт.

4

87679867

COVER

Scuff Guard

1шт.

5

NSS

NOT SOLD SEPARAT

LH FENDER TRIM PANEL; Incl in 1

1шт.

6

451984A1

PUSH-ON NUT

3шт.

7

895-11003

WASHER,3.2mm ID x 7mm OD x 0.5mm Thk

4шт.

8

84122812

TRIM PANEL

RH Fender

1шт.

8

84144456

TRIM

RH Fender Panel W/ Power Outlet Cutout

1шт.

9

355098A1

TRIM PANEL

RH C-Post

1шт.

10

87448669

SEAL

Adhesive Backed Hole

2шт.

11

87481088

BRACKET

Power Outlet Mounting

1шт.

12

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

Bracket Upper

2шт.

13

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

Bracket Upper

2шт.

14

840-1520

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

Bracket Lower

2шт.

15

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

Bracket Lower

4шт.

16

824-1405

NUT,M5, Cl 5

Bracket Lower

2шт.

17

84187831

SCREW,Torx Pan Hd, M4 x 25mm, Cl 4.8

Power Outlet

4шт.

18

824-1404

NUT,M4, Cl 5

Power Outlet

4шт.

19

87741870

BEZEL

Power Outlet

1шт.

20

86639119

SELF-TAP SCREW,Pan Hd, M4.2 x 16

Bezel Hold Down

3шт.

21

388813A1

OUTLET

12V DC

3шт.

22

87683738

POWER SOCKET

3 Pin, North America

2шт.

22

87583575

WIRE HARNESS

Power Socket, Europe

2шт.
