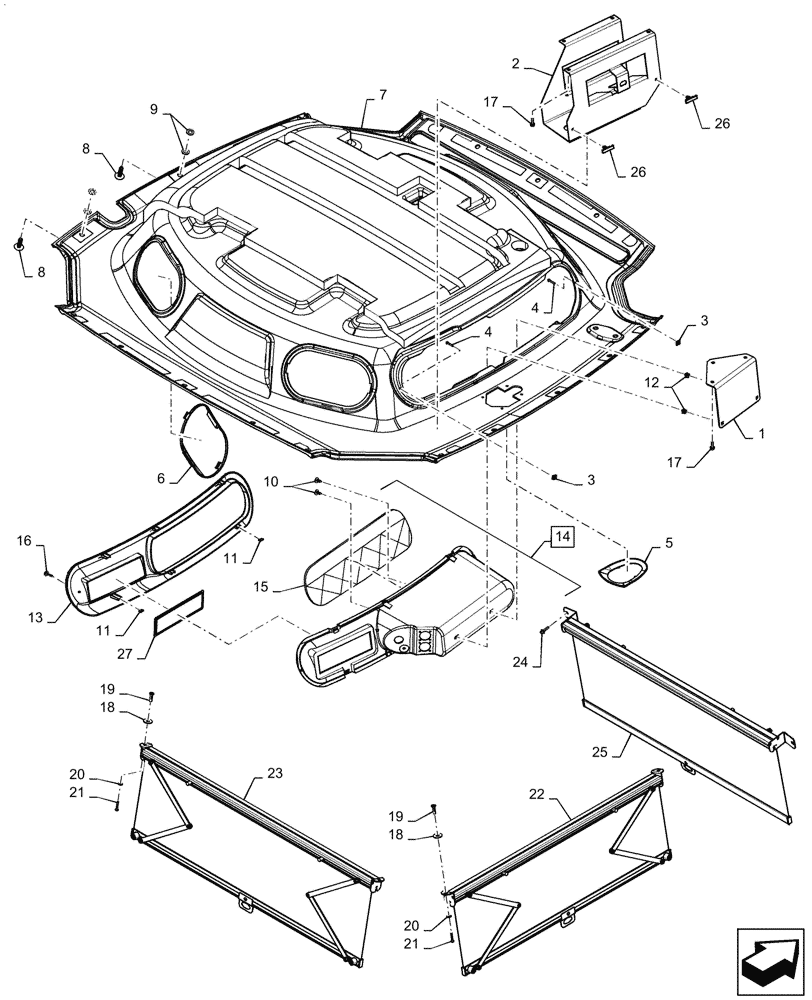

Запчасти Case IH MAGNUM 310 (90.160.AX[01]) - CAB INTERIOR, HEADLINER, SUNSHADE, STORAGE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

409205A2

BRACKET

Storage Shelf

1шт.

2

428264A5

BRACKET

Radio Mounting

1шт.

3

442245A1

SPRING NUT

2шт.

4

761-17325

SELF-TAP SCREW,Pan Hd, M4.2 x 25

2шт.

5

360364A1

BEZEL

Map Light

1шт.

6

358683A1

GRILLE

Speaker

4шт.

7

47651161

HEADLINER

1шт.

8

87621184

FASTENER

16шт.

9

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

10

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

2шт.

11

308538A2

CLIP

Storage Shelf

6шт.

12

322072A2

FASTENER

Plastic

2шт.

13

358794A2

BEZEL

Storage Shelf

1шт.

14

358795A1

BOX

Storage Shelf, Incl 15

1шт.

15

NSS

NOT SOLD SEPARAT

RETAINER, Storage, Incl in 14

1шт.

16

360362A1

CAPTIVE WASHER SCREW

1шт.

17

758-6

SELF-TAP SCREW,Hex Hd, M6.3 x 19

7шт.

18

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

4шт.

19

87450324

NUT

4шт.

20

195-81034

WASHER,0.2" ID x 0.47" OD x 0.05" Thk

4шт.

21

87030526

SCREW,Pan, #10 - 32 x 1"

4шт.

22

87668031

VISOR, SUN

RH

1шт.

23

87668032

VISOR, SUN

Rear

1шт.

24

781-24620

SELF-TAP SCREW,Hex Flg Hd, M6 x 20

2шт.

25

87668030

VISOR, SUN

Front

1шт.

26

369917A1

CLIP

Wire Harness

2шт.

27

1535219C1

COVER

Without Radio

1шт.
