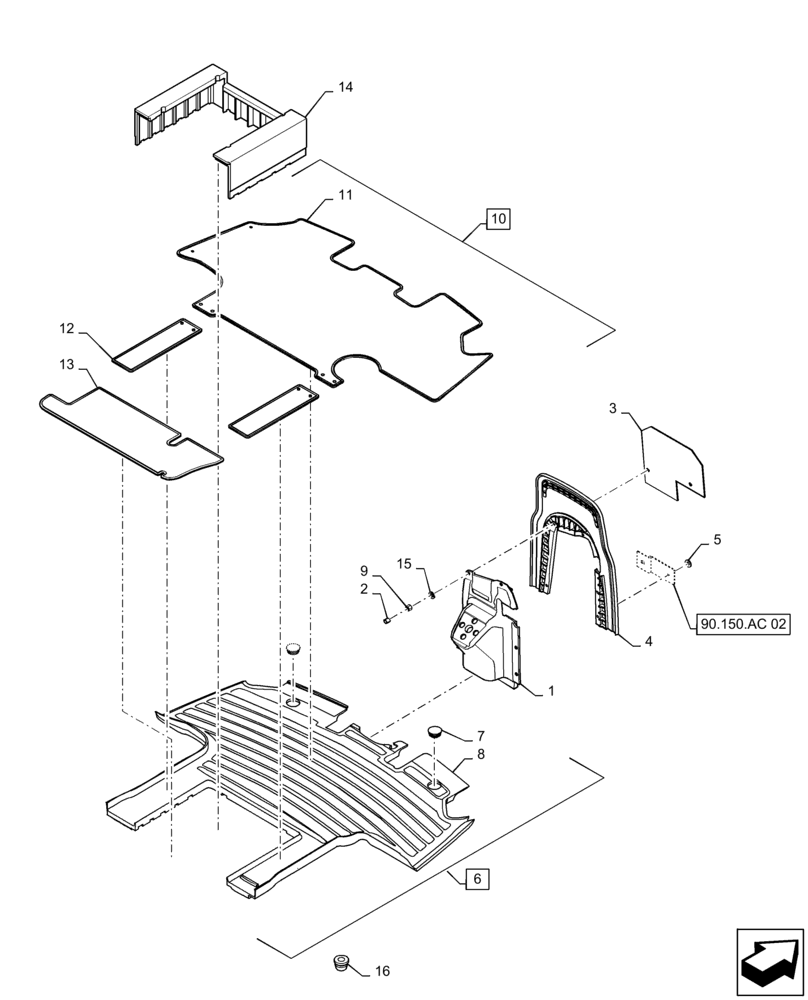

Запчасти Case IH MAGNUM 310 (90.160.AR[01]) - CAB FLOOR MAT & INSULATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84593174

COVER

Firewall, Inner

1шт.

2

84366057

CAP,7.92mm ID x 10.66mm OD x 12.7mm L

Black Vinyl

5шт.

3

84594108

PLATE

Firewall Blanket Support

1шт.

4

84593173

COVER

Firewall, Outer

1шт.

5

495-81121

WASHER,.344" x 1 1/2" x .060"

2шт.

6

84137774

FLOOR MAT

Incl 7, 8

1шт.

7

281848A1

PLUG

2шт.

8

NSS

NOT SOLD SEPARAT

FLOOR MAT, Incl in 6

1шт.

9

832-10408

NUT,M8 x 1.25, Cl 8.8

5шт.

10

87417637

FLOOR MAT

Luxury Carpets, Incl 11 - 13

1шт.

11

87417636

FLOOR MAT

Front Carpet

1шт.

12

357074A1

CARPET

Side

2шт.

13

357075A1

CARPET

Shelf

1шт.

14

254325A3

SKIRT

Seat Deck

1шт.

15

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

3шт.

16

182220A1

GROMMET

Park Brake Release

1шт.
