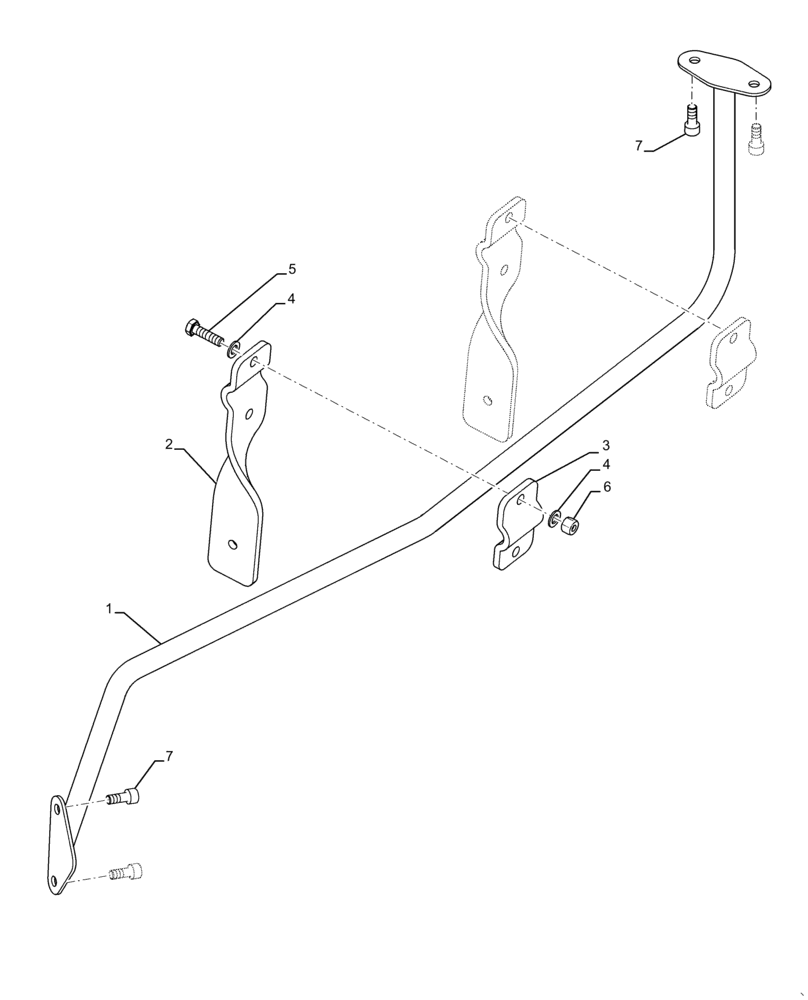

Запчасти Case IH MAGNUM 310 (90.151.AT[01]) - MONITOR, MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87439072

MOUNT

Monitor Mounting

1шт.

2

103213A1

HOLDER

Monitor Mounting

2шт.

3

103226A1

CLAMP

Monitor Mounting Bracket

2шт.

4

256402A1

SPECIAL WASHER,9mm ID x 16mm OD x 1.6mm Thk

9 x 16 x 1.6 mm CST ZND

8шт.

5

514-633

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

6

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

7

863-8020

HEX SOC SCREW,M8 x 20mm, Cl 12.9

4шт.
