Запчасти Case IH MAGNUM 310 (90.124.AN[03]) - VAR - 429373, 449058, 429374, 449059 - AIR SUSPENSION - AIR TANK KIT - DELUXE SEMI-ACTIVE & LUXURY SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

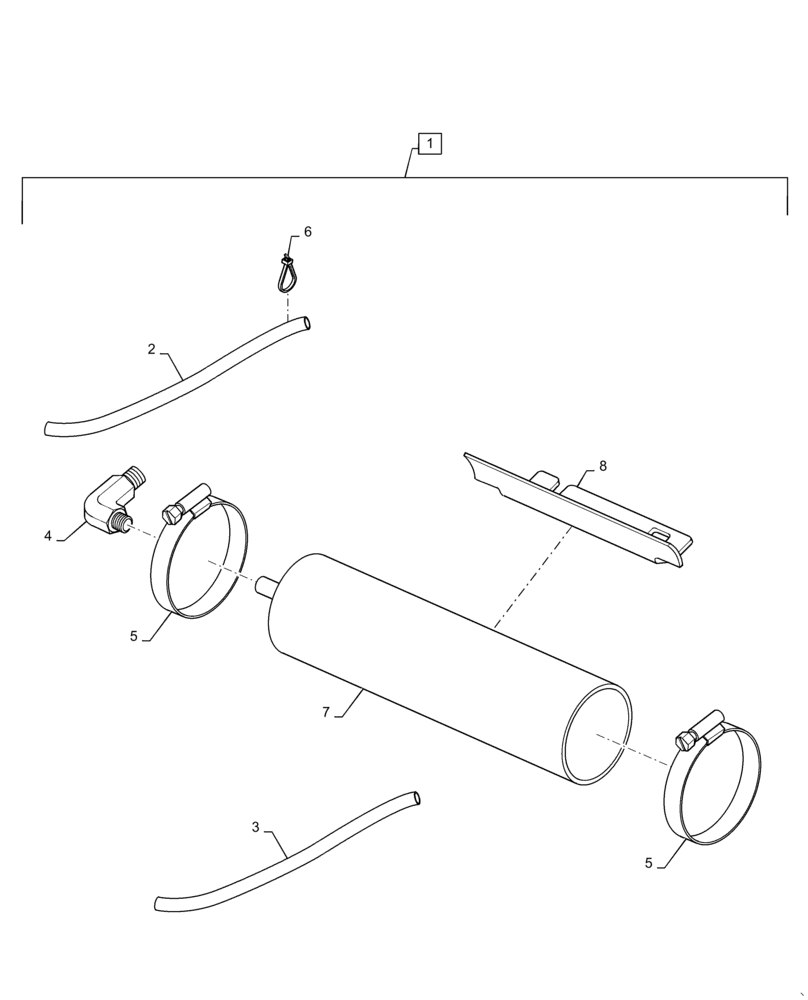

Схема запчастей Case IH MAGNUM 310 - (90.124.AN[03]) - VAR - 429373, 449058, 429374, 449059 - AIR SUSPENSION - AIR TANK KIT - DELUXE SEMI-ACTIVE & LUXURY SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS
7
2
5
3
8
5
1
4
6

Артикул

Название

Примечание

Количество

1

87347960

SERVICE KIT

Air Tank, Incl 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

Tubing, Nylon, 3/8" x .50, 250 PSI, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Tubing, Convoluted, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Fitting, 90° Elbow, 1/2" NPT x 3/8" OD Tube, Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Clamp, Hose, Incl in 1

2шт.

6

NSS

NOT SOLD SEPARAT

Cable Tie, Incl in 1

2шт.

7

NSS

NOT SOLD SEPARAT

Air Tank, Incl in 1

1шт.

8

NSS

NOT SOLD SEPARAT

Bracket, Incl in 1

1шт.

Выбрано товаров: 8
