Запчасти Case IH MAGNUM 310 (90.124.AK[01]) - VAR - 429373, 449058 - SEAT, AIR SUSPENSION - ASSY - DELUXE SEMI-ACTIVE SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

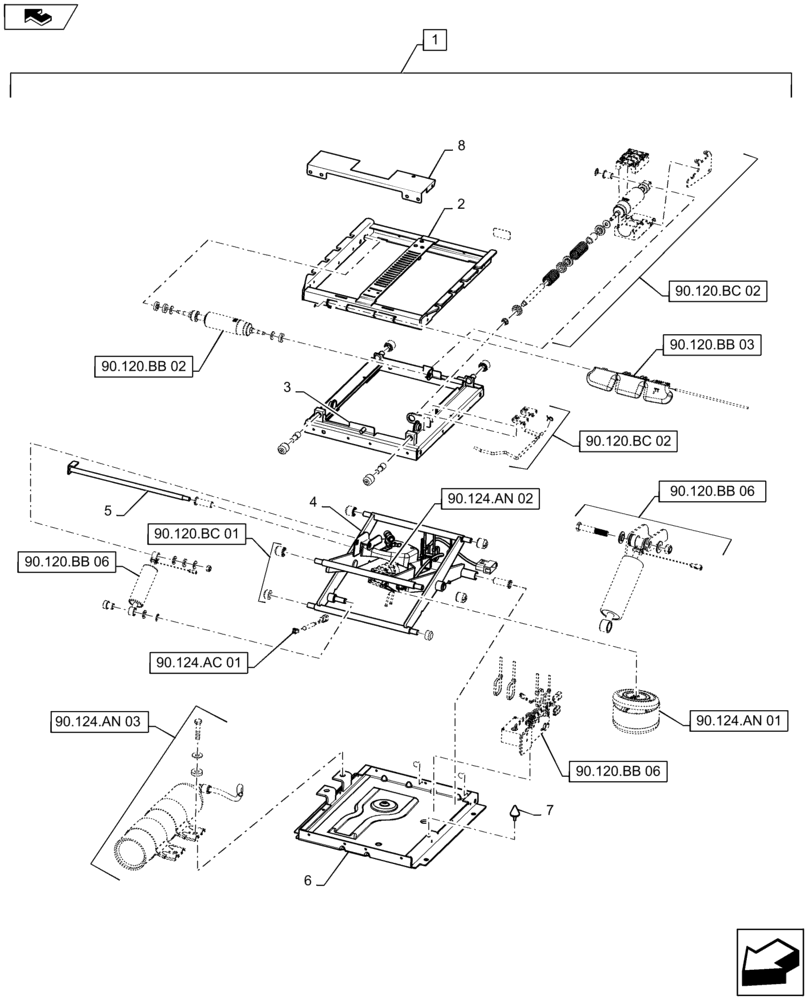

Схема запчастей Case IH MAGNUM 310 - (90.124.AK[01]) - VAR - 429373, 449058 - SEAT, AIR SUSPENSION - ASSY - DELUXE SEMI-ACTIVE SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
6
3
90.120.bb 06
7
90.120.bb 06
4
4
2
90.120.bb 06
90.124.an 02
90.124.an 01
90.120.bb 03
90.124.an 03
90.120.bc 02
1
90.120.bc 01
90.120.bc 02
8
90.124.ac 01
home
90.120.bb 02

Артикул

Название

Примечание

Количество

1

84406040

SERVICE KIT

Semi-Active Air Suspension Assy. - Incl 2 - 8

1шт.

2

333274A2

ISOLATOR

Frame

1шт.

3

86994256

HOUSING

Lower

1шт.

4

86994258

ARM

Suspension Scissor

1шт.

5

302033A1

SHAFT

Bearing

1шт.

6

333273A1

HOUSING

Upper

1шт.

7

333295A1

BUMPER

Rubber

1шт.

8

302029A2

PLATE

Cover

1шт.

Выбрано товаров: 8
