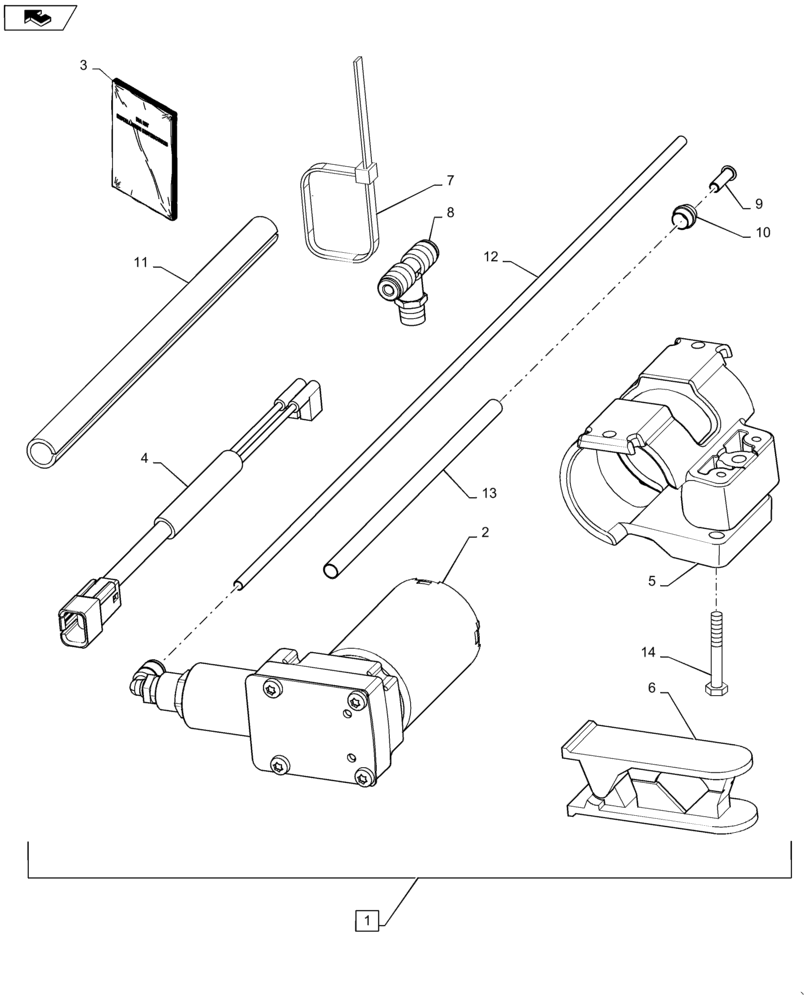

Запчасти Case IH MAGNUM 310 (90.124.AC[02]) - VAR - 420010, 420012, 429373, 449058 - SEAT COMPRESSOR SERVICE KIT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84392273

KIT

Seat Compressor Service, Incl 2 - 14

1шт.

2

NSS

NOT SOLD SEPARAT

Compressor, 12V, 1/8" NPT Short, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Instruction Sheet, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Harness, 4 Pin, Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Clamp, Compressor, Incl in 1

1шт.

6

NSS

NOT SOLD SEPARAT

Cutter, Plastic Tube, Incl in 1

1шт.

7

NSS

NOT SOLD SEPARAT

Cable Tie, Incl in 1

5шт.

8

NSS

NOT SOLD SEPARAT

Fitting, Tee, Male Branch, 5/32" x 1/8" NPT, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

Support, Tube, Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

Sleeve, Incl in 1

1шт.

11

NSS

NOT SOLD SEPARAT

Tube, Convoluted, 1/2" OD x 8" L, Incl in 1

1шт.

12

NSS

NOT SOLD SEPARAT

Tubing, Nylon, 5/32" OD x 32" L, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Tubing, Nylon, 1/4" OD x 6" L, Incl in 1

1шт.

14

NSS

NOT SOLD SEPARAT

Screw, #8 x 1.25", Slotted Hex Hd. Flange, Incl in 1

2шт.
