(90.120.BH[04]) - VAR - 420010, 420012, 429373, 449058 - SEAT BACK SUPPORT/MANUAL HOLDER

Запчасти Case IH MAGNUM 310 (90.120.BH[04]) - VAR - 420010, 420012, 429373, 449058 - SEAT BACK SUPPORT/MANUAL HOLDER (90) - PLATFORM, CAB, BODYWORK AND DECALS

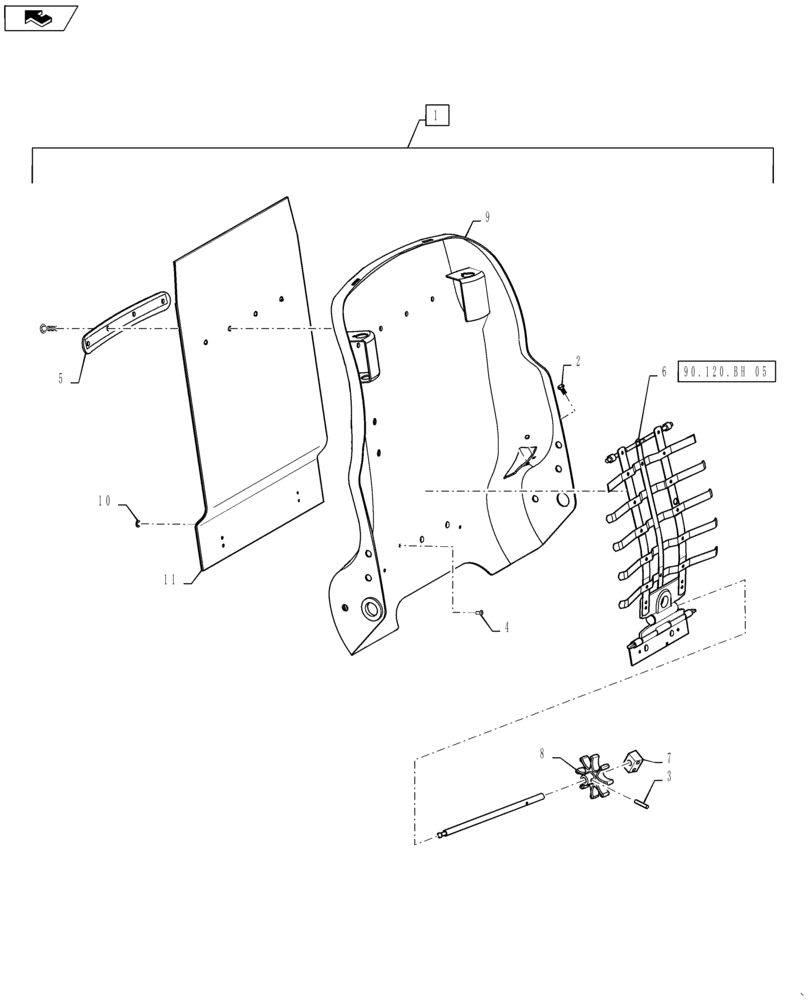

Схема запчастей Case IH MAGNUM 310 - (90.120.BH[04]) - VAR - 420010, 420012, 429373, 449058 - SEAT BACK SUPPORT/MANUAL HOLDER (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
4
7
9
1
11
6
3
home
8
5
90.120.bh 05
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86994155

ASSEMBLY

Seat Back Pan Assy with Pouch and Lumbar Support, Incl 2 - 11

1шт.

2

NSS

NOT SOLD SEPARAT

Screw, #10 x .38 Hex Hd. Flange, Incl in 1

2шт.

3

NSS

NOT SOLD SEPARAT

Pin, Roll, 1/8 x 5/8, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Pop Rivet, .125", Incl in 1

2шт.

5

NSS

NOT SOLD SEPARAT

Manual Holder, Incl in 1

1шт.

6

87308130

SEAT BACK ADJUST DEV

Lumbar Support

1шт.

7

NSS

NOT SOLD SEPARAT

Lumbar Shaft, Incl in 1

1шт.

8

87037462

SEAT BACK ADJUST DEV

Knob, Lumbar Support

1шт.

9

NSS

NOT SOLD SEPARAT

Pan, Back, Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

Fastener, Tack, Incl in 1

6шт.

11

86994172

SERVICE KIT

Manual Holder

1шт.
