Запчасти Case IH MAGNUM 310 (90.120.BB[03]) - VAR - 429373, 449058, 429374, 449059 - SEAT PEDESTAL & MECHANICAL SUSPENSION - SUSPENSION KNOBS (90) - PLATFORM, CAB, BODYWORK AND DECALS

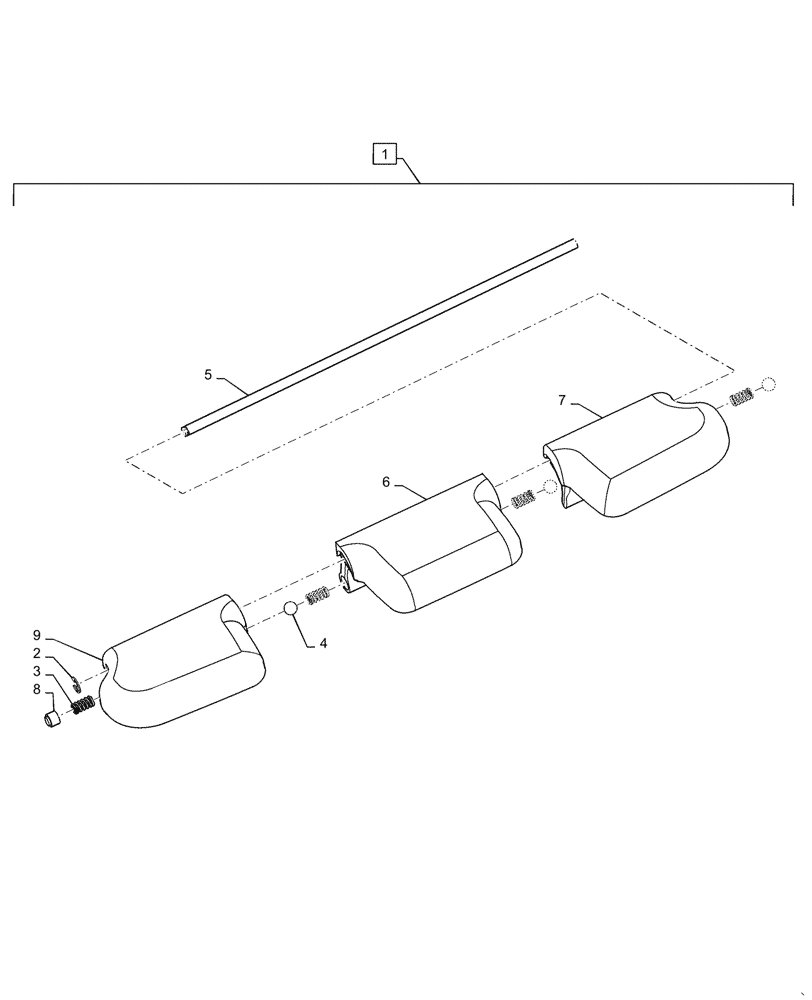

Схема запчастей Case IH MAGNUM 310 - (90.120.BB[03]) - VAR - 429373, 449058, 429374, 449059 - SEAT PEDESTAL & MECHANICAL SUSPENSION - SUSPENSION KNOBS (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
4
9
1
8
2
6
3
7

Артикул

Название

Примечание

Количество

1

87407047

SERVICE KIT

Suspension Knob, Incl 2 - 9

1шт.

2

NSS

NOT SOLD SEPARAT

E-Ring, .188", Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Spring, Compression, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Bearing, Ball, .255" Dia, Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Rod, Retaining, Incl in 1

1шт.

6

NSS

NOT SOLD SEPARAT

Knob, Lateral Isolator, Incl in 1

1шт.

7

NSS

NOT SOLD SEPARAT

Knob, For-Aft Isolator, Incl in 1

1шт.

8

NSS

NOT SOLD SEPARAT

Pin, Dowel, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

Knob, Blank, Incl in 1

1шт.

Выбрано товаров: 9
