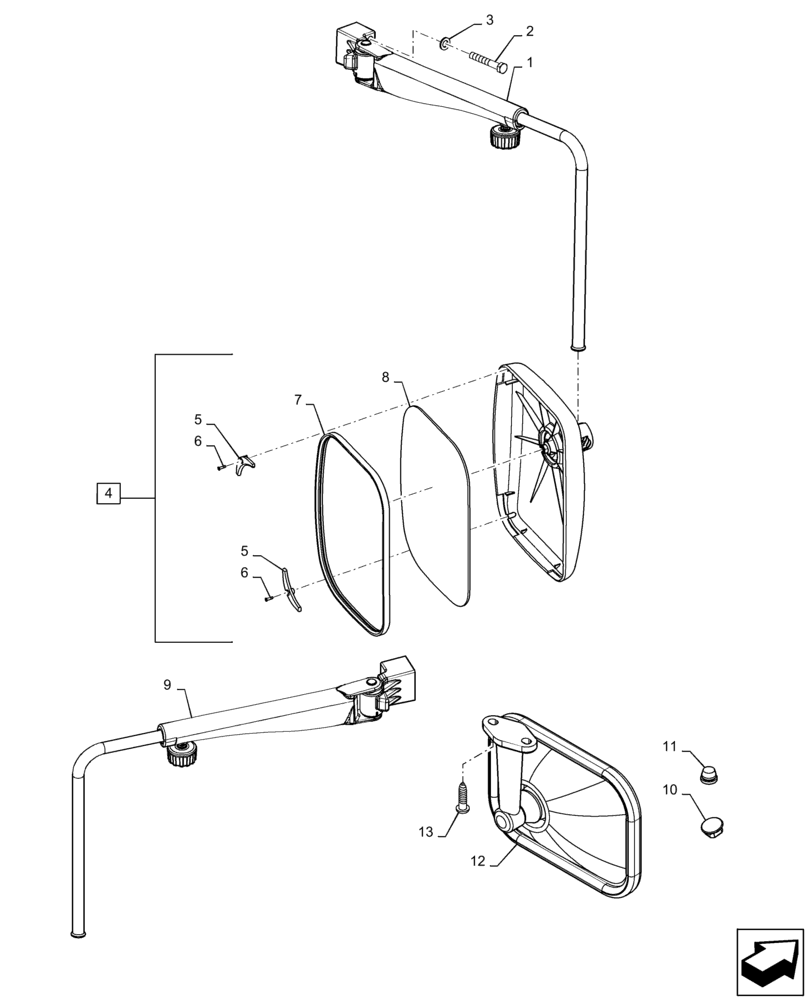

Запчасти Case IH MAGNUM 310 (90.118.BM[01]) - VAR- 420821 - MANUAL MIRROR ASSY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87363073

ARM

RH Mirror, Manual

1шт.

2

412085

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

4шт.

3

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

W/O Beacon

4шт.

3

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

W/Beacon

8шт.

4

87350494

MIRROR ASSY.,240mm x 329mm

Manual; Incl 5 - 8

2шт.

5

87531094

BRACKET

Manual Mirror Head

4шт.

6

15902707

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 19mm

4шт.

7

82035218

MIRROR,300mm x 200mm

Lens, Acrylic 300x200

1шт.

8

324437A1

REPLACEMENT MIRROR

Glass

1шт.

9

87363070

ARM

LH Mirror, Manual

1шт.

10

280628A1

PLUG

No Power Mirror

1шт.

11

182220A1

GROMMET

2шт.

12

82036480

MIRROR

Interior Rear View

1шт.

13

779-34616

SELF-TAP SCREW,Hex Hd, M6.3 x 16

Interior Rear View Mirror Mounting

2шт.
